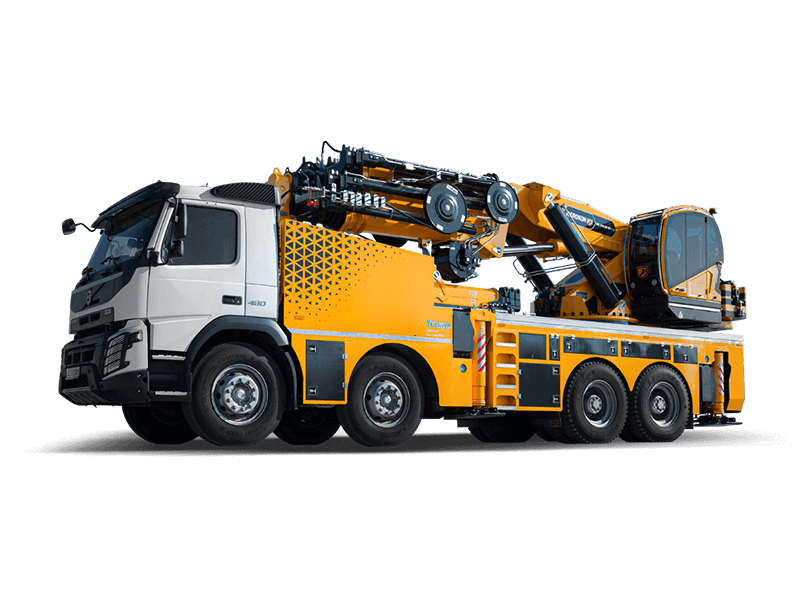

Knuckle Boom Cranes | HK 285 L8+L6
-
FEATURES
Extension Priority
Operator Cabin
Operator Cabin
Heating
Operator Cabin
(Ext./Tilt.)
Operator Cabin
A/C
Joystick Control
Proportional
Control
Valve
Crane
Radio Remote
Control
Outrigger
Radio Remote
Control
Automatic
Outrigger
Leveling% 50
Outrigger
Control
System
Load
Weighing
System
Variable
Discplacement
Pump
Automatic Lubrication
4.5 t
Hoisting Winch
Counter Weight
Double Hook
Oil Tank
748l
Slewing Ring Diameter

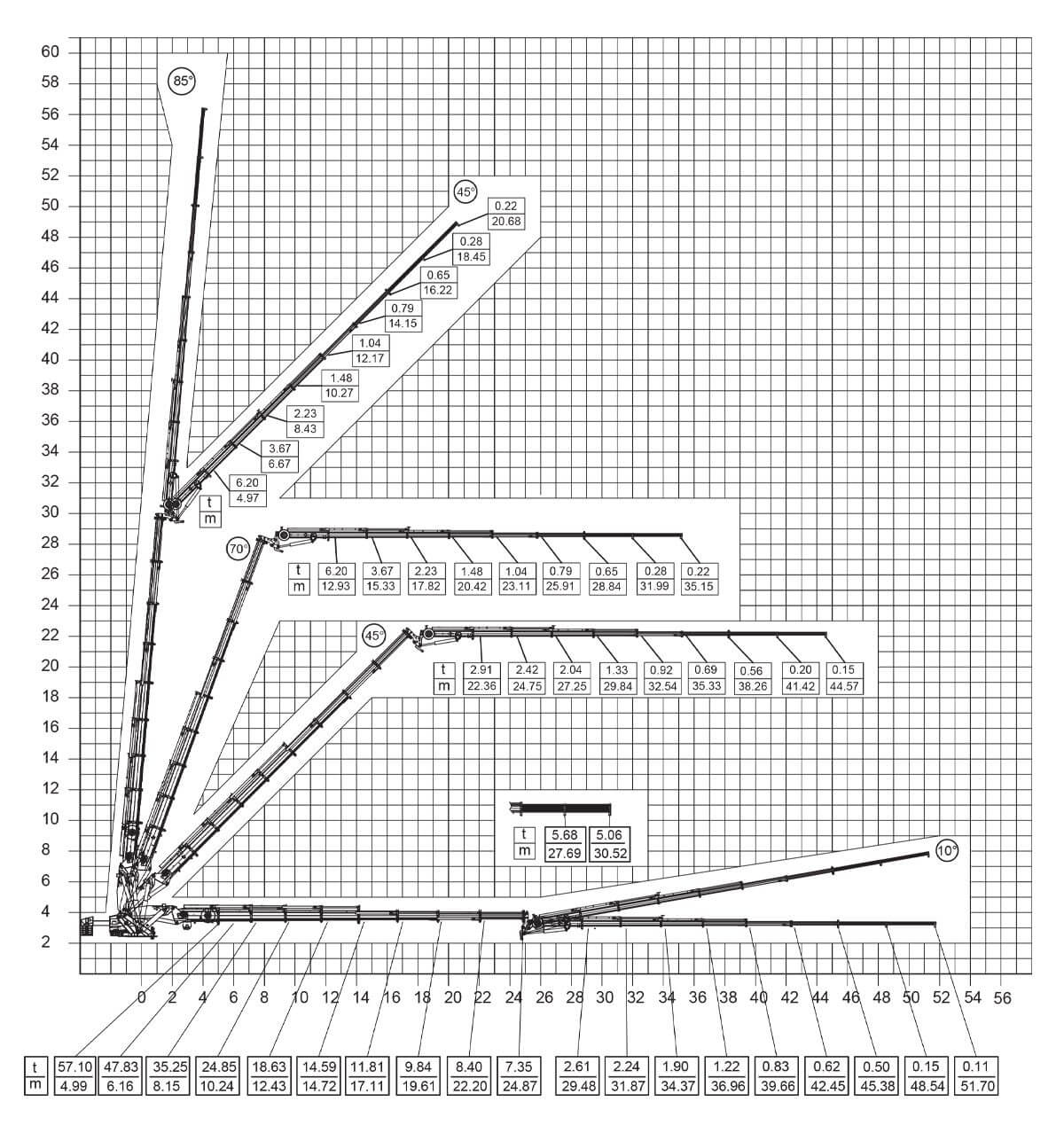

Ø1947HK 285 L8+L6 TECHNICIAL SPECIFICATIONS Max. Hydraulic Vertical Outreach 29.64 m 97' 2.92" Max. Manual Vertical Outreach 35.28 m 115' 8.97" Max. Hydraulic Vertical Outreach With Fly Jib 50.10 m 164' 4.44" Max. Manual Vertical Outreach With Fly Jib 56.34 m 194' 8.22" Working Pressure 290 bar 4206 psi Rotation Angle ∞(Endless)) ∞(Endless)) Number Of Hydraulic Extensions 8 8 Number Of Hydraulic Extensions Of Fly Jib 6 6 Number Of Mechanical Extensions 2 2 Number Of Mechanical Extensions Of Fly Jib 2 2 Counter Weight 7900 kg 17416 lbs Oil Tank Capacity 748 l 748 l Dead Weight (Std.) 35100 kg 77,382 lbs Dead Weight (Std.) With Fly Jib 39480 kg 87,038 lbs
*BOOM DEFLECTIONS ARE NOT TAKEN INTO CONSIDERATION
