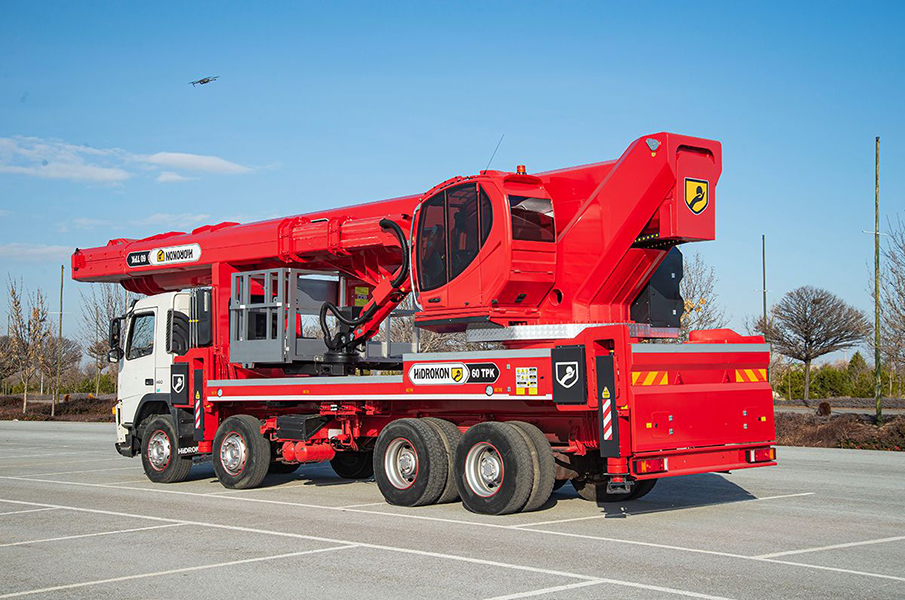

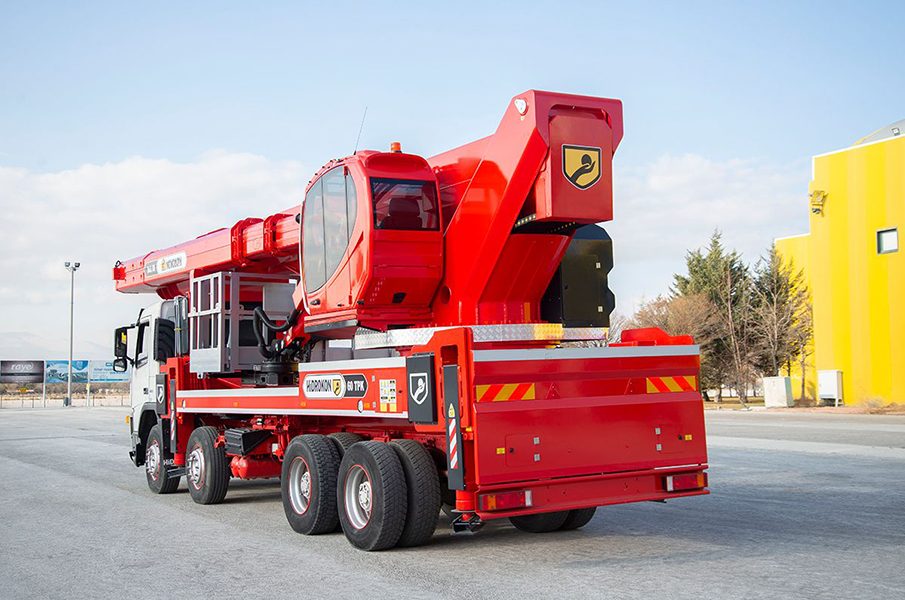

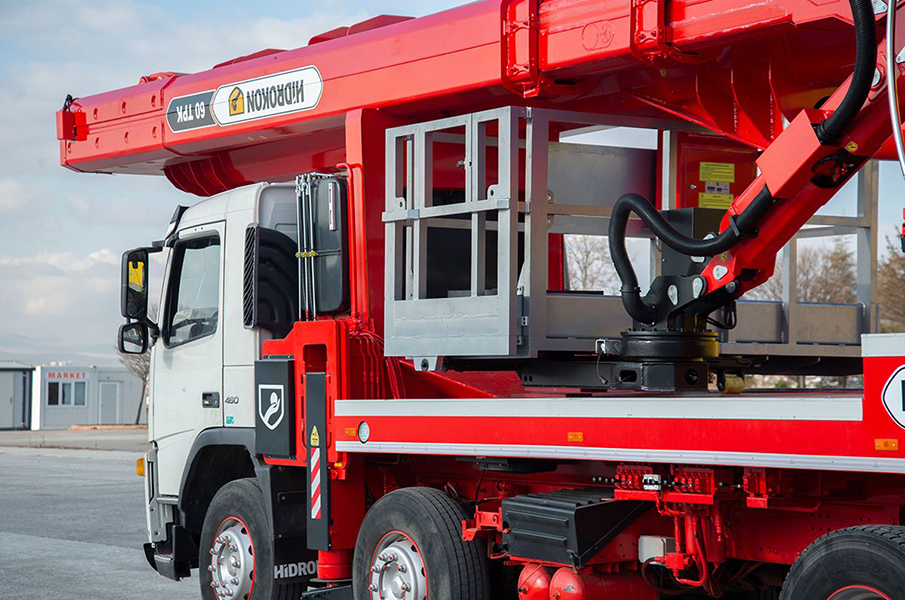

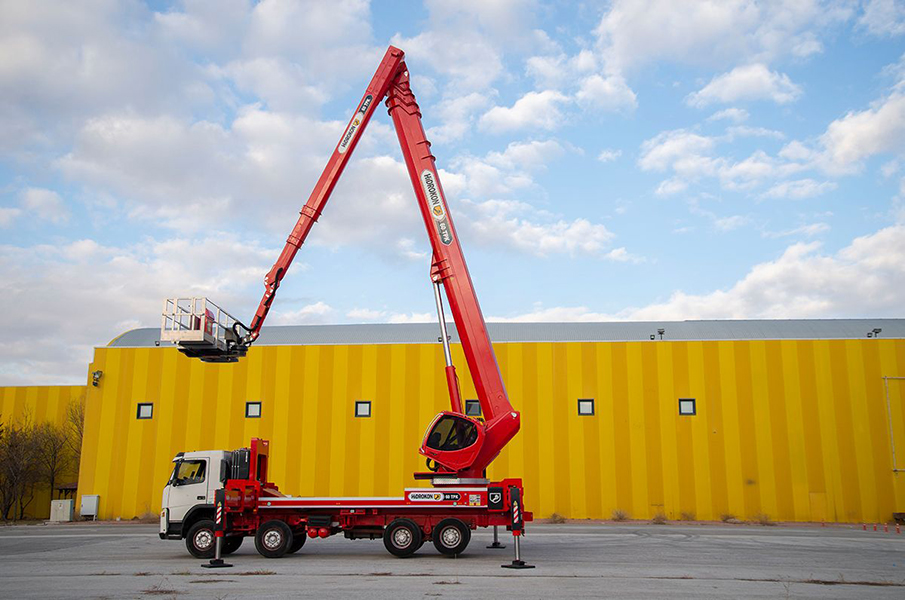

Aerial Platforms - HK 60 TPK

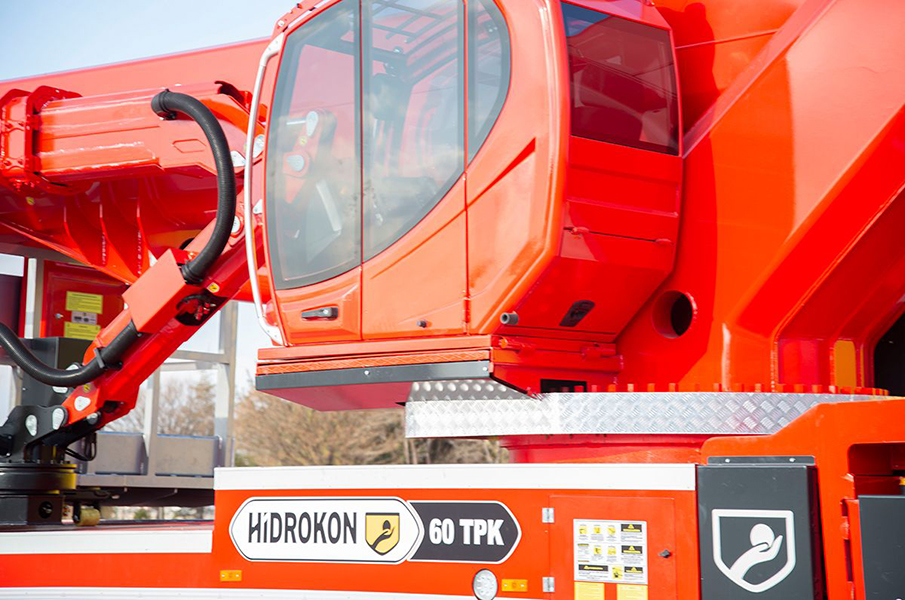

Operator Cabin

Slewing Angle Control

Operator Cabin Heating

Hand Pump

Intercom Easytalk

Wind Sensor

Operator Cabin A/C

Joystick Control(Basket)

Display Screen on Basket

Cabin Display Screen

Geometric Control System

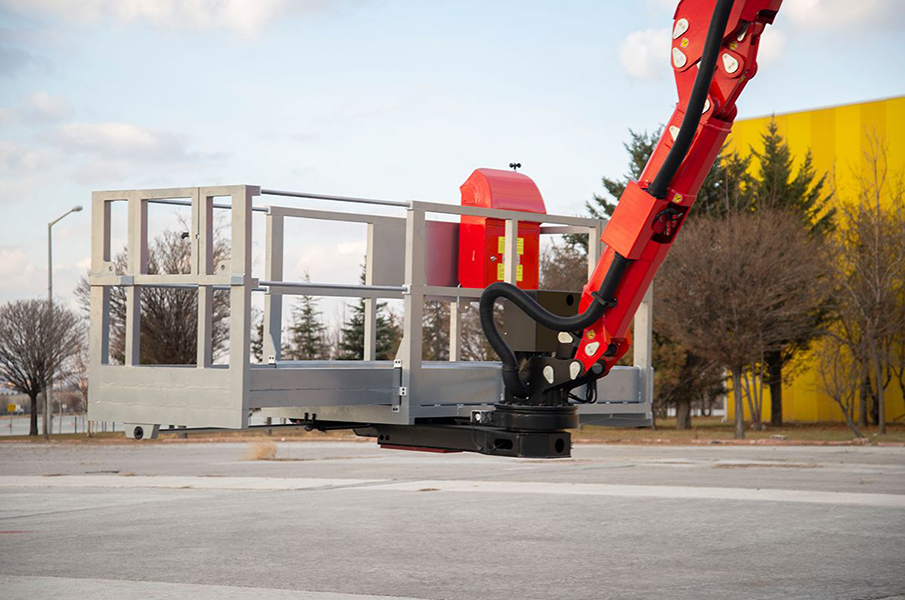

Extendable Basket

Basket Electrical Insulation

Basket Overload Control

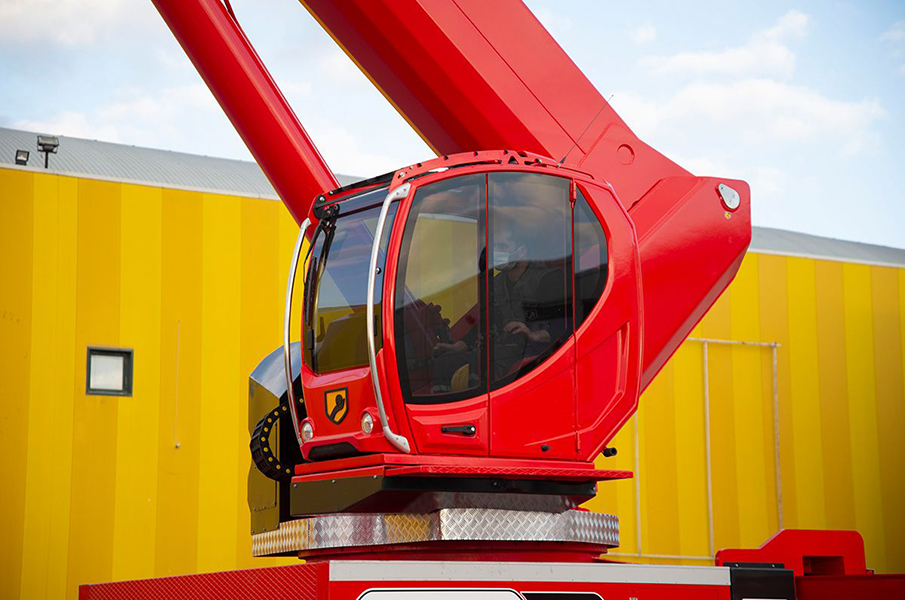

Operator Cabin(Tiltable)

Joystick Control

Proportional Valve

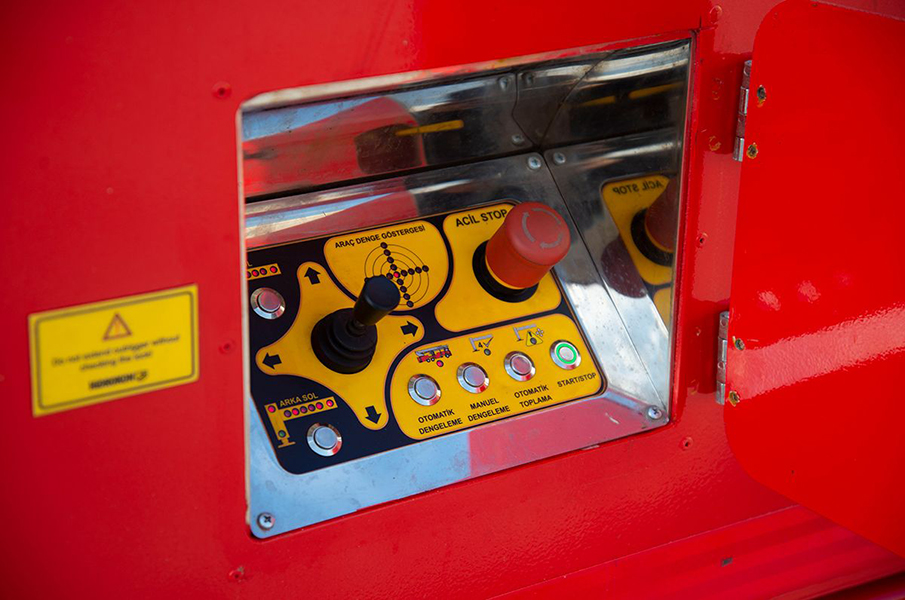

Automatic Outrigger Leveling

Automatic Outrigger Leveling
%50

Variable Displacement Pump

Standard

Optional

TECHNICAL SPECIFICATIONS

Vehicle's Loaded Weight*		36000 kg

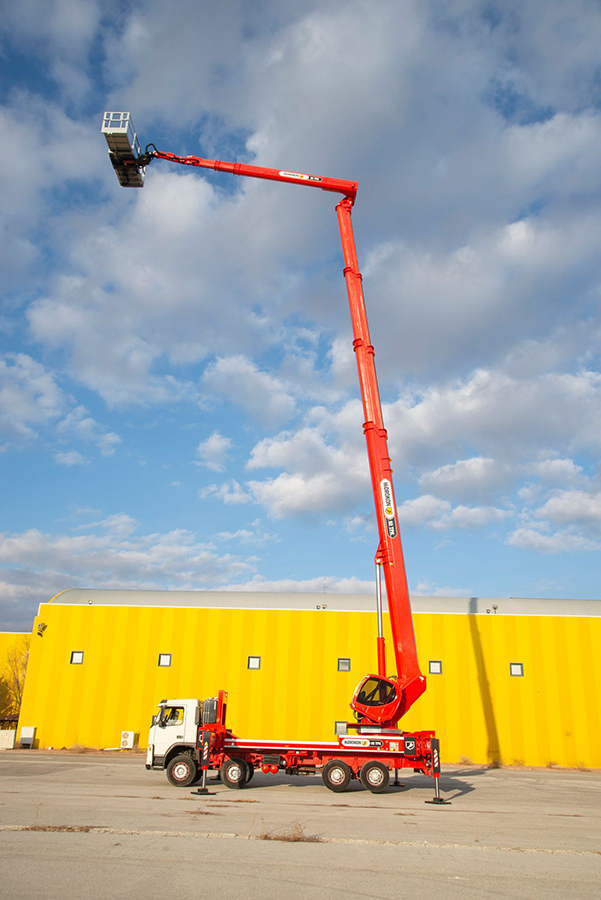

Maximum Working Height		60 m
Maximum Platform Height		58 m

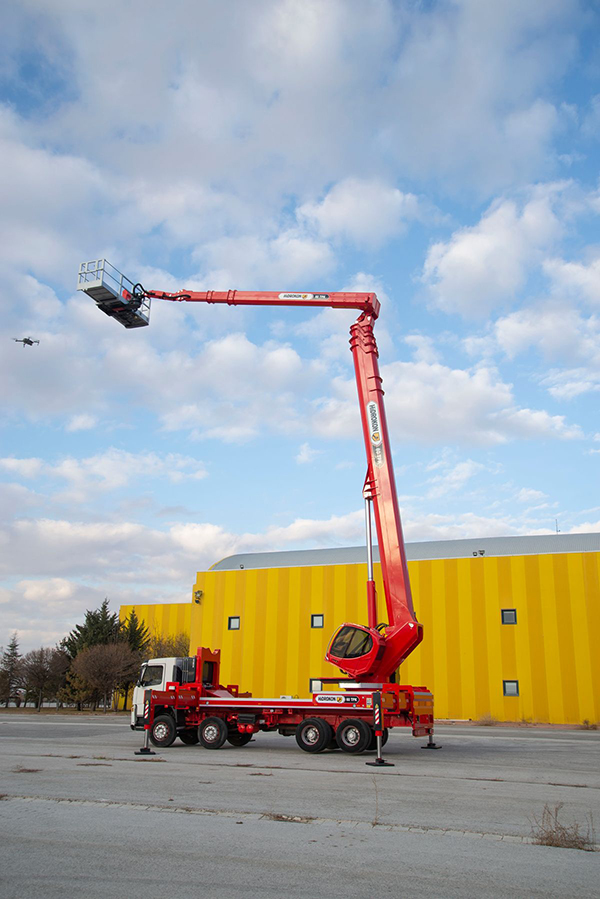

Maximum Horizontal Outreach		35 m
Angle Of Rotation		± 270°
Fly Boom Angle		210°
Basket Rotation Angle		± 200°
Basket Dimensions		1020X1100X2430 mm
Maximum Basket Load		600 kg
KEY FEATURES
Engine Start-Stop In The Cabin		STANDARD
Engine Start-Stop In The Basket		STANDARD
BASKET FEATURES
Engine Start-Stop In The Basket		STANDARD
220v Electrical Socket		STANDARD
Basket Overload Control		STANDARD
Lighting Lamp		STANDARD
BOOM GROUP
Main Boom Angle		85°
Upper Boom Angle		180°
Boom Length And Angle Control		STANDARD
ROTATION SYSTEM
Turret Rotation Control		STANDARD
Rotation Within Visibility Of Mirror		STANDARD

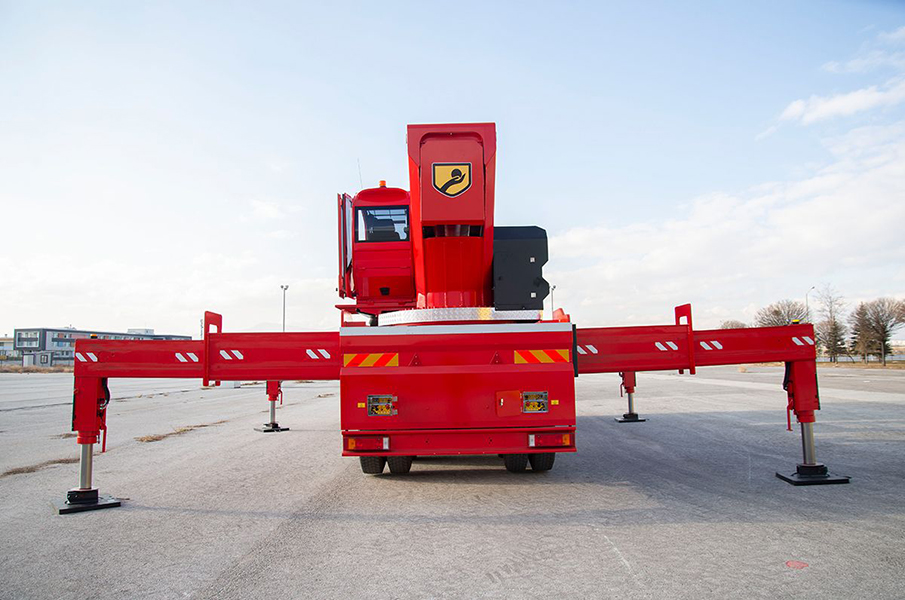

OUTRIGGERS
2 Extended Outriggers At The Front And Rear		STANDARD
Outrigger Press Control		STANDARD
Maximum Inclination Angle		3°
OTHER FEATURES
Outrigger Pad		OPTIONAL

**Open Basket (Dimensions After Extension):1020x1100x3870 mm)
**Varies depending on type of chassis.

LIFTING DIAGRAMS

HK-60-TPK-D1

* Deflection was not taken into consideration.

HK-60-TPK-D2

* Deflection was not taken into consideration.
