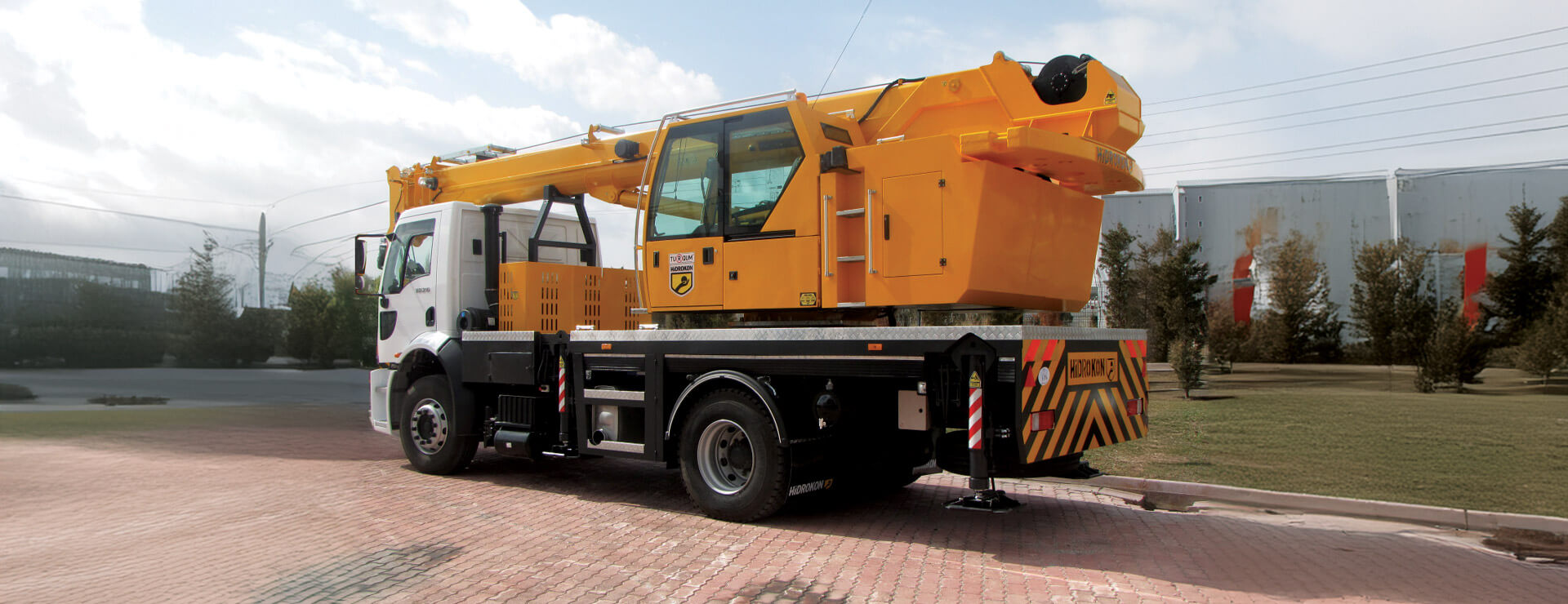

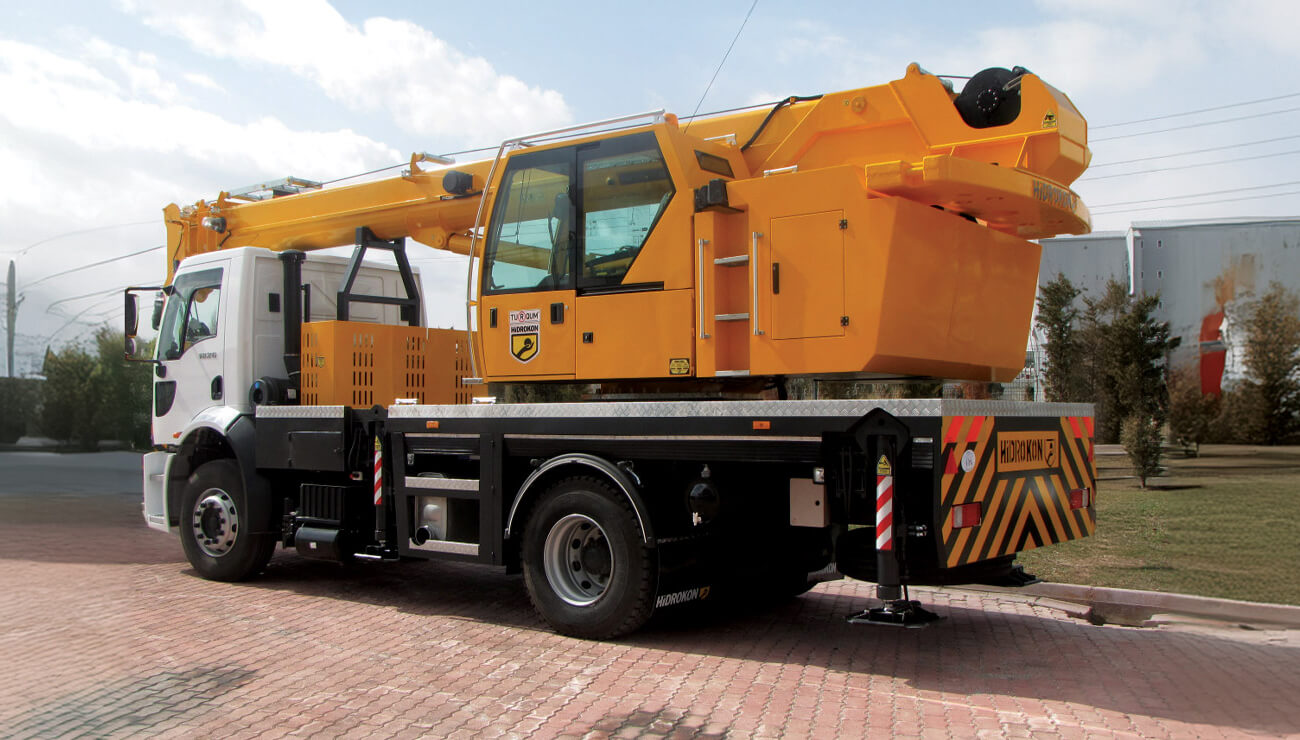

Chassis |
Crane Chassis (Subframe) |
HIDROKON design and manufacturing, chassis with box type design, torsion resistant, high strength steel welded construction. |
|

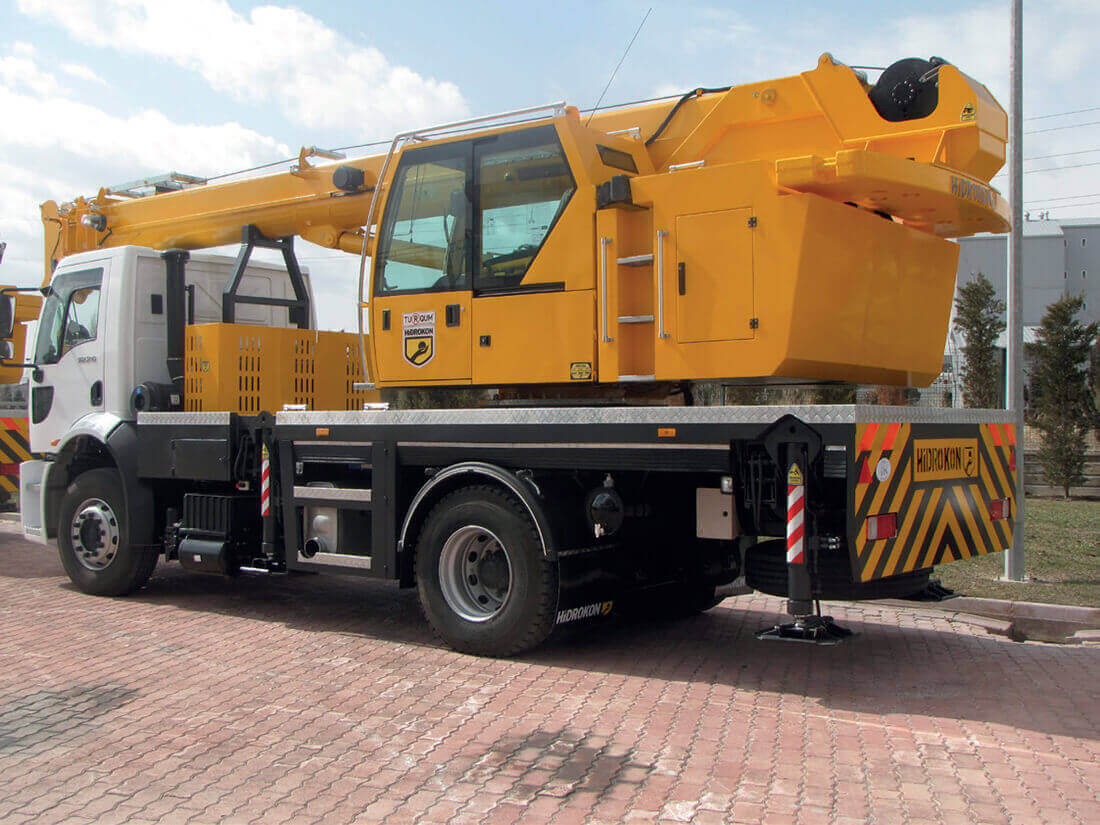

Outriggers |
H type four outriggers which are hydraulically operated by control levers. Control levers are
located at the each side of the truck chassis. |
|
Tower Group |
Slewing Bearing System |
A hydraulic motor-driven planetary gear reducer with a slewing bearing system enables 360° rotation, offering a gear rotation speed of 1.5 rpm. |
|
Operator Cabin |
Ergonomically designed operator cabin providing optimum visibility for the operator. Heating and lifting up to 25° features are available. |
|
Counterweight |
1.25 t fixed counterweight. |
|

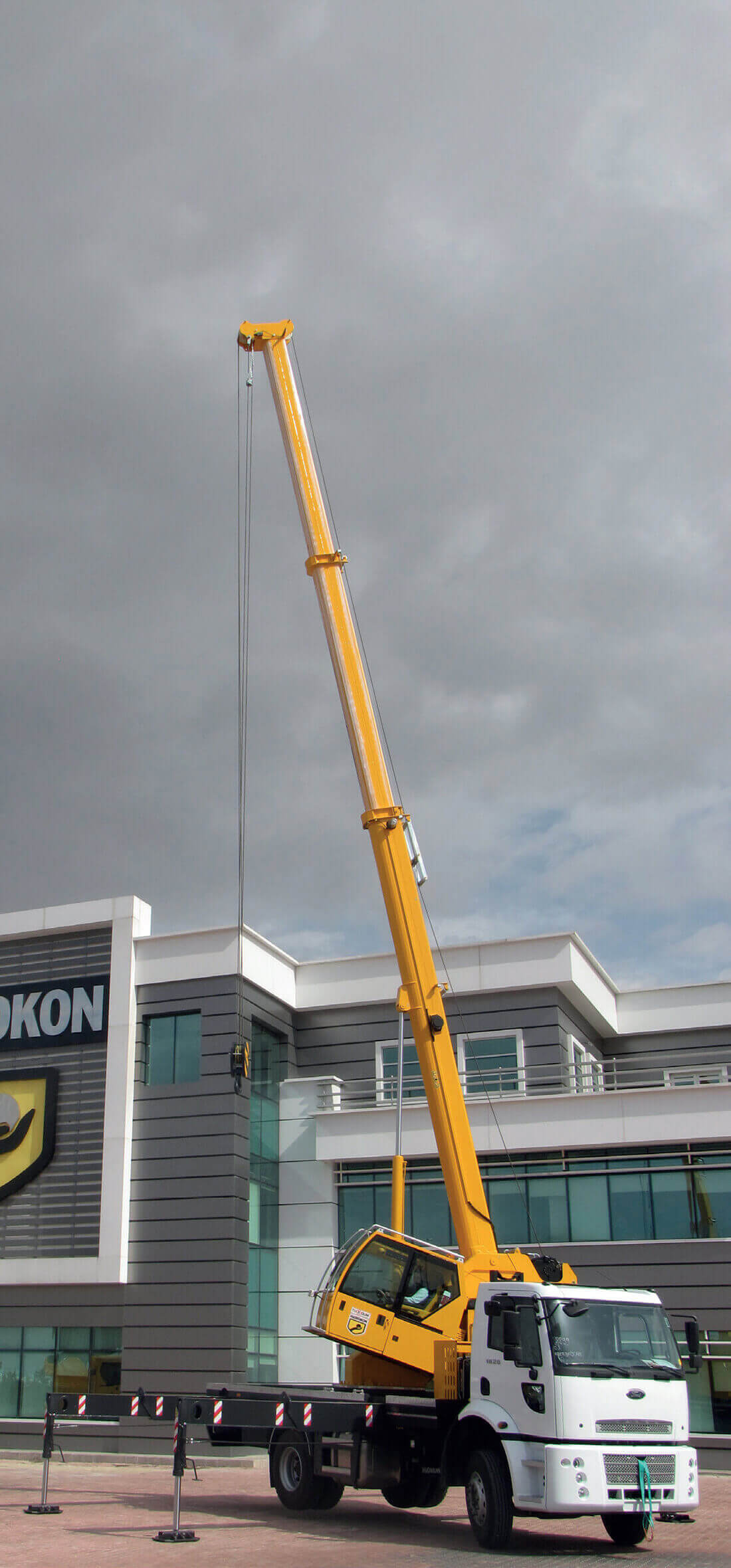

Booms |

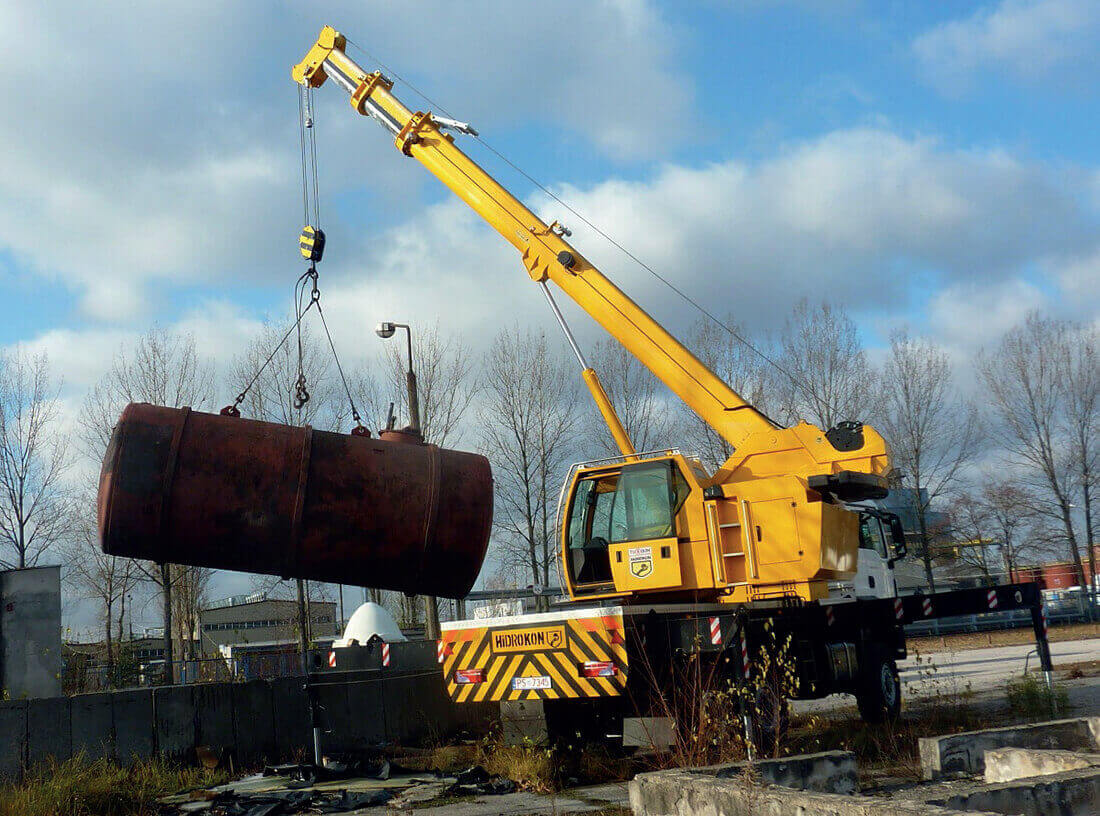

Telescopic Booms |
The system consists of 1 main boom and 2 extension booms. The booms are hydraulically extended and move simultaneously. Manufactured from high strength structural steel.

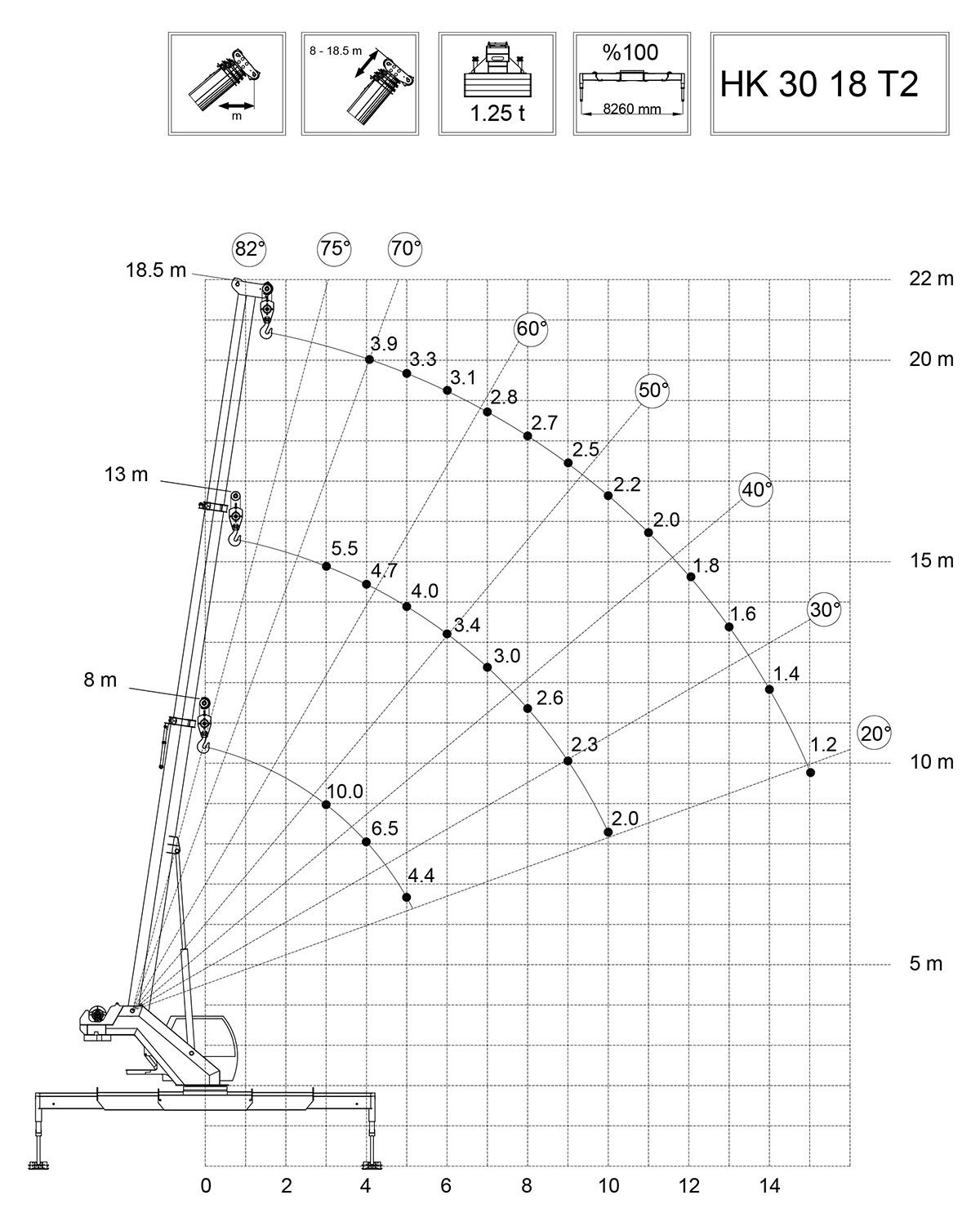

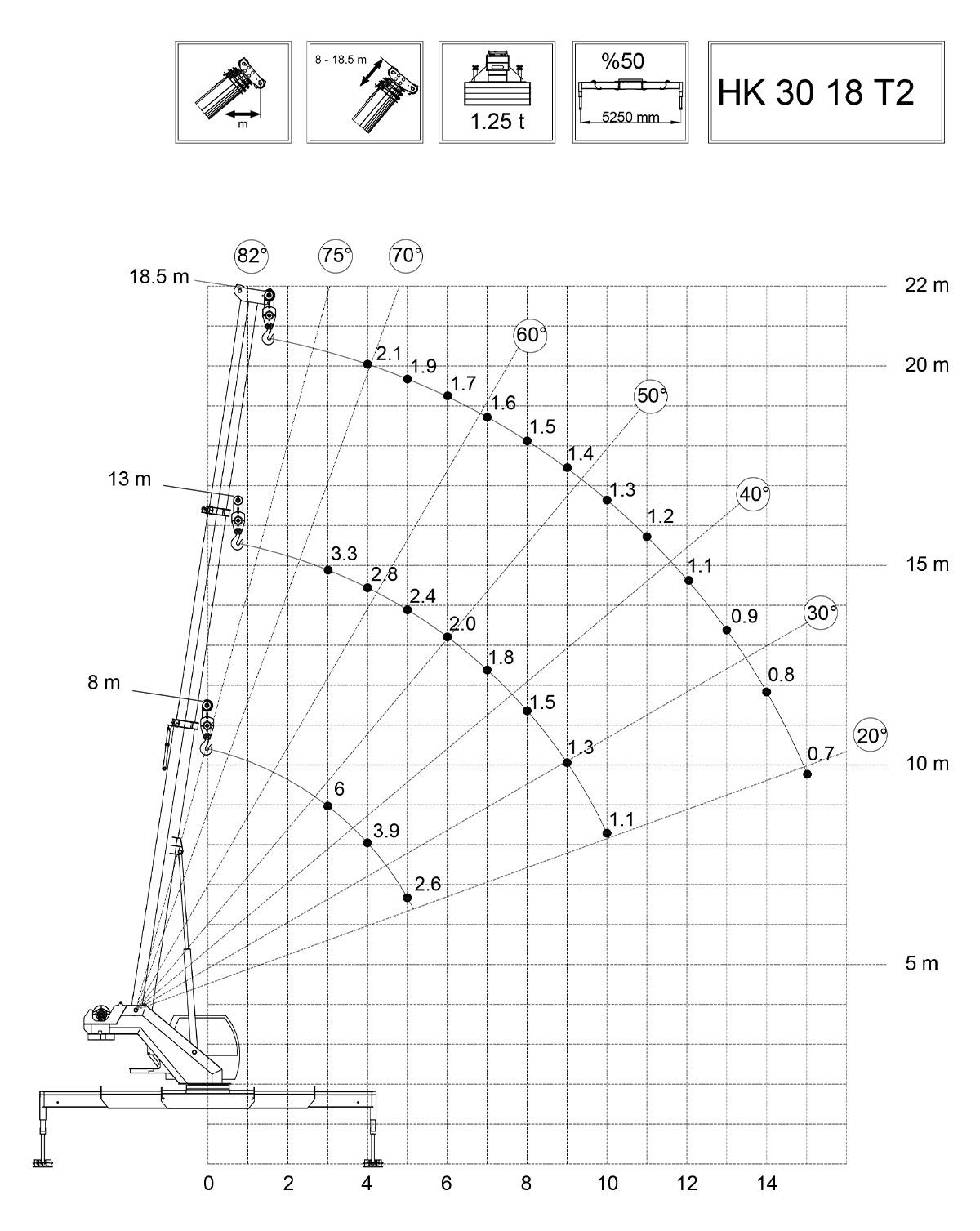

• Main boom length 8 m - 18.5 m
• Boom angle range 0° - 82°
• Main boom reaches from 0° to 82° in 40 seconds.
|
|
Safety Equipment |
Load weighing system, stability control system, pulley switch, pressure control valve, twin load holding valve. |
|
Chassis |
|
 |
a: distance between cabin and ground level
b: distance between chassis and ground level
4x2 chassis to be provided by the customer
Minimum wheelbase may vary depending on the chassis
Max a: 3260 mm
Max b: 1290 mm
|
