| Working Speeds | |
| Driving | |
 |
Non Layer: 0-102 m/min (5th layer) Single Line Wire Rope Diameter/Length: 16 mm / 210 m Max. Single Line Wire Rope Pull: 58 kN / 5914 kg (5th layer) |
 |
Approximately 95 seconds to reach 82° boom angle |
 |
Approximate time to go from 10.6 meters to 38.5 meters boom distance is 90 seconds |
 |
1.5 min-1 |
| Chassis |
| Crane Chassis (Subframe) |
| HIDROKON design and manufacturing, chassis with box type design, torsion resistant, high strength steel welded construction. |
| Outriggers |
| Four X-type outriggers that can be hydraulically extended. Can be controlled from both sides of the crane. |
| Tower Group |
| Slewing Bearing System |
| A hydraulic motor-driven planetary gear reducer with a slewing bearing system enables 360° rotation, offering a gear rotation speed of 1.5 rpm. |
| Operator Cabin |
| Ergonomically designed operator cabin providing optimum visibility for the operator. Heating and lifting up to 25° features are available. |
| Counterweight |
| 8.3 t fixed counterweight. |
| Booms |
| Telescopic Booms |

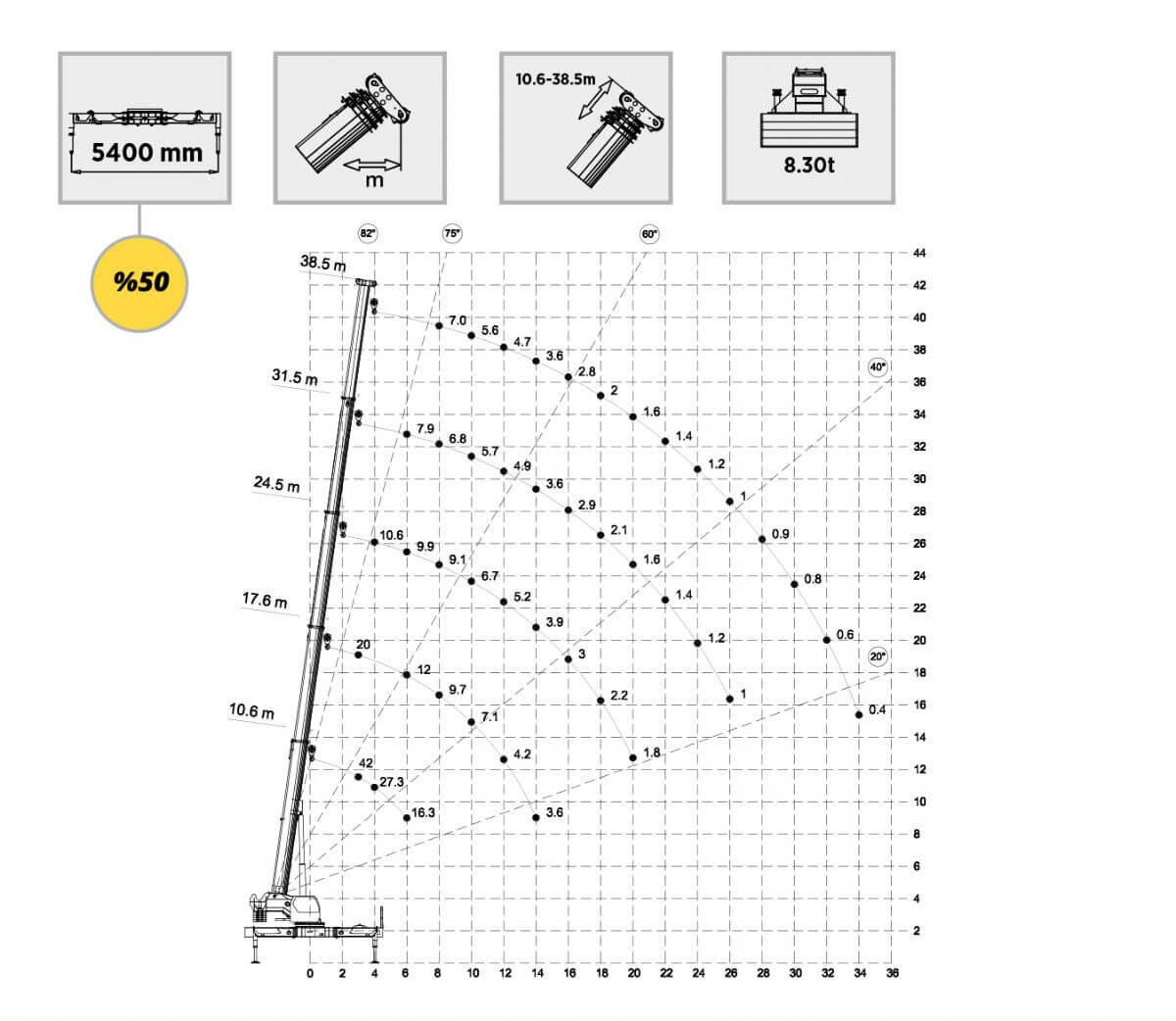

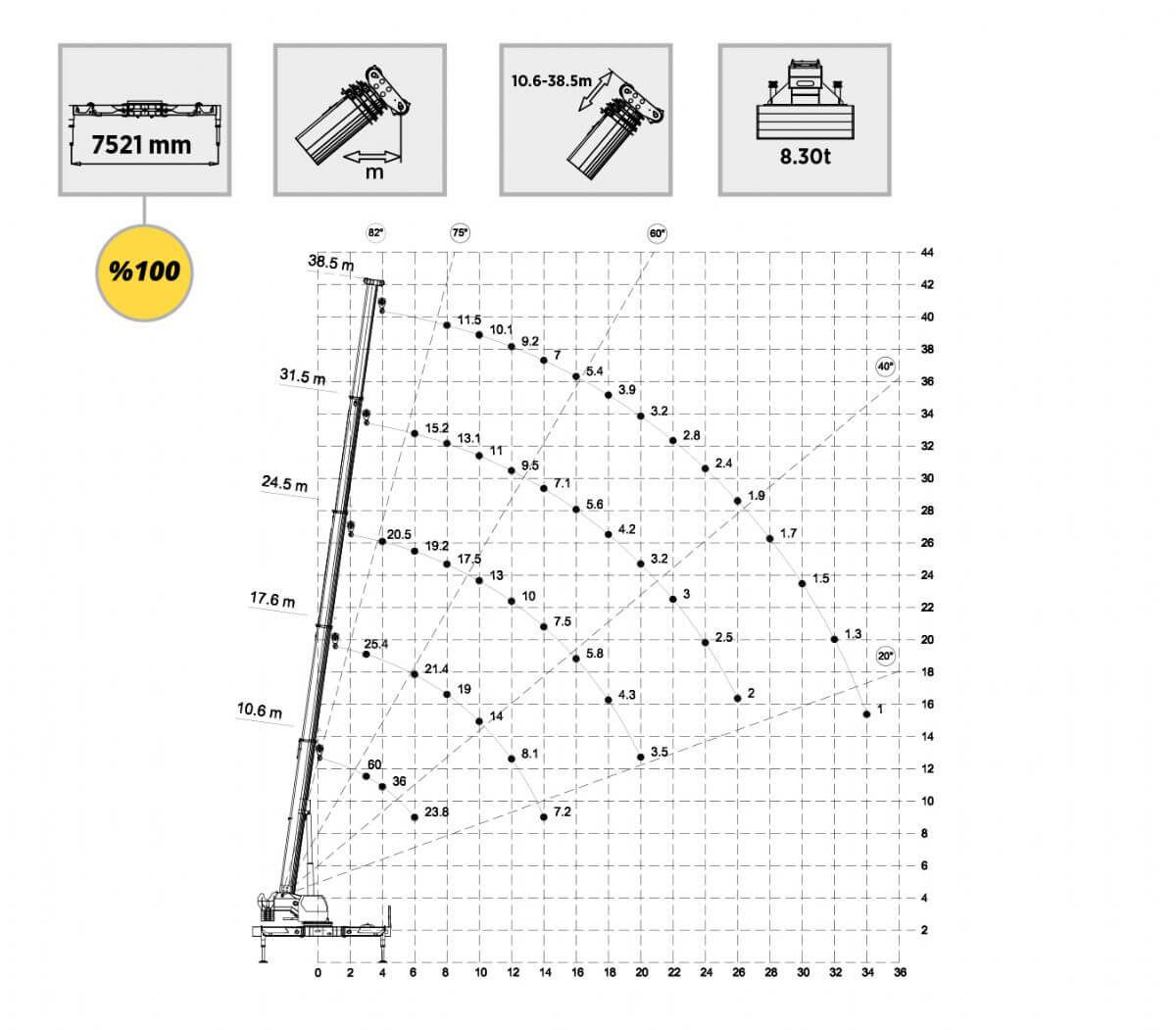

| The system consists of 1 main boom and 3 extension booms. The booms are hydraulically extended and move simultaneously. Manufactured from high strength structural steel. • Main boom length 10.6 m – 38.5 m. • Boom angle range 0° - 82°. • Main boom reaches from 0° to 82° in 95 seconds. |
| Safety Equipment |
| Load weighing system, stability control system, pulley switch, pressure control valve, twin load holding valve. |

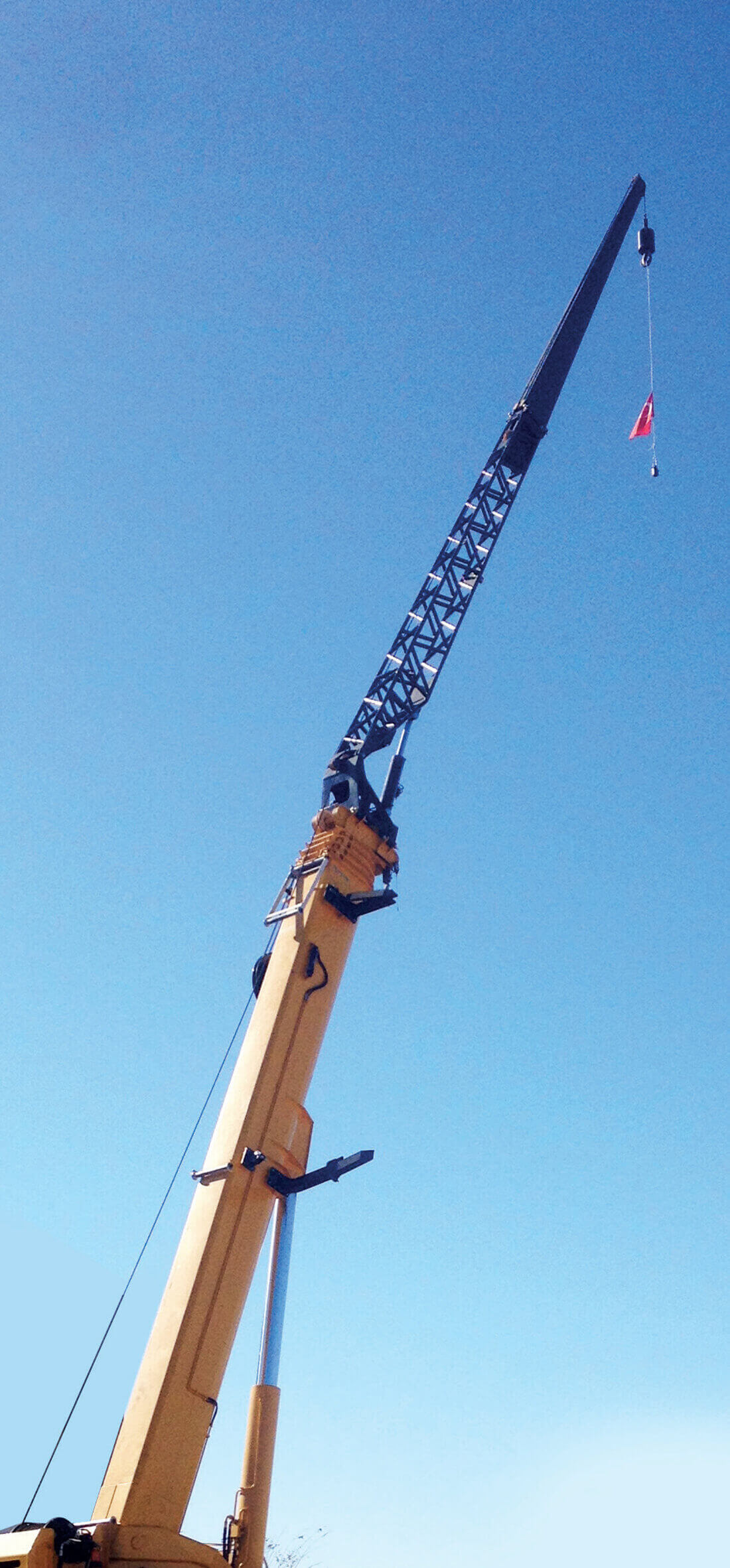

| Fly Jib |
| It consists of cage and welded structure. • Offset angle range is 0°, 50°. • Fixed length of jib boom is 9.2 m / 16.2 m. |
| Chassis |
 |
| a: distance between cabin and ground level b: distance between chassis and ground level 8x4 vehicle, to be provided by the customer. Minimum wheelbase may vary depending on the vehicle. Max a: 2920 mm Max b: 1110 mm |
