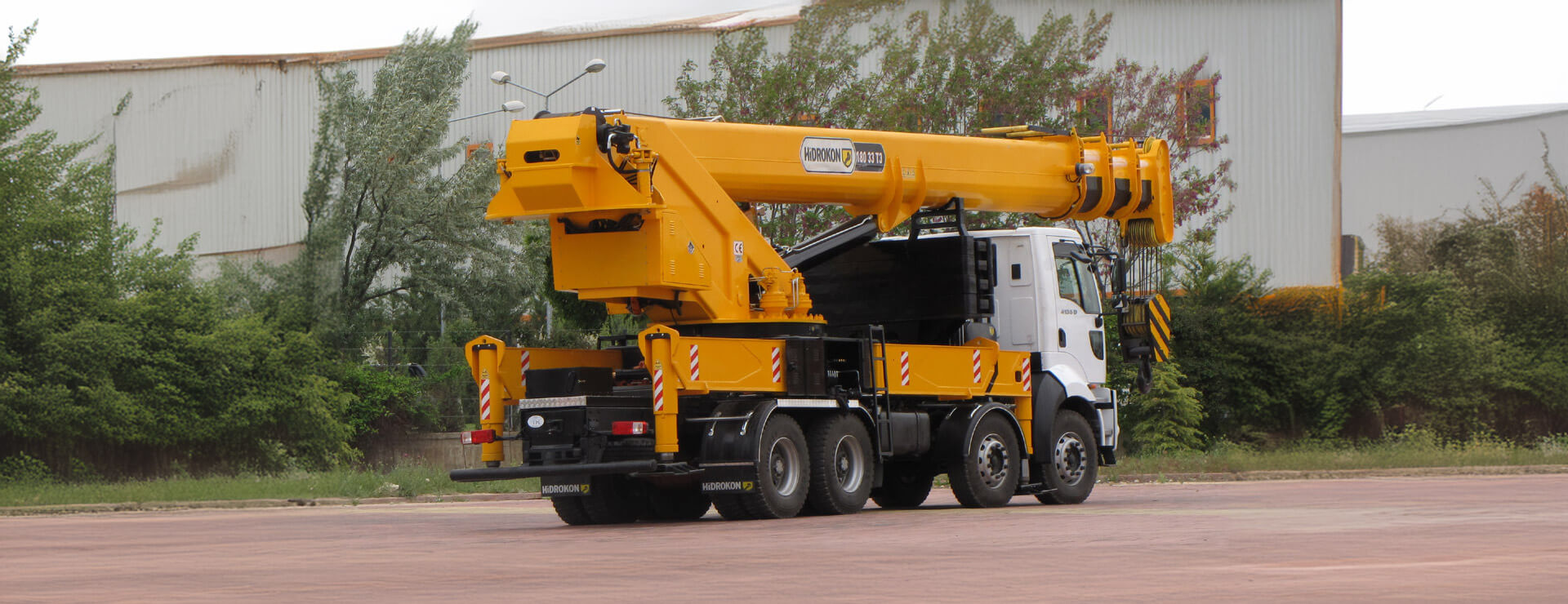

Chassis |
| Crane Chassis (Subframe) |
| HIDROKON design and manufacturing, chassis with box type design, torsion resistant, high strength steel welded construction. |
|
|

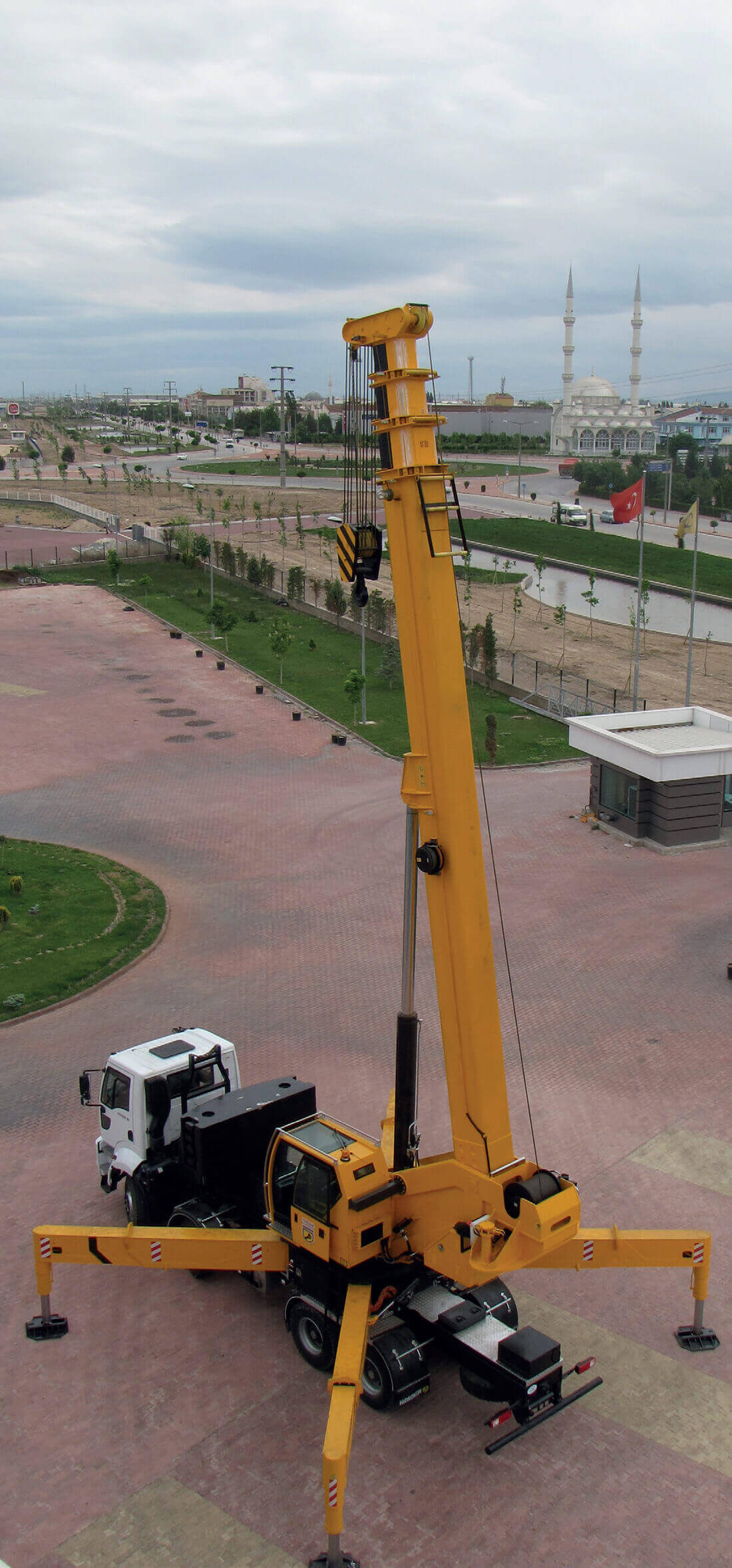

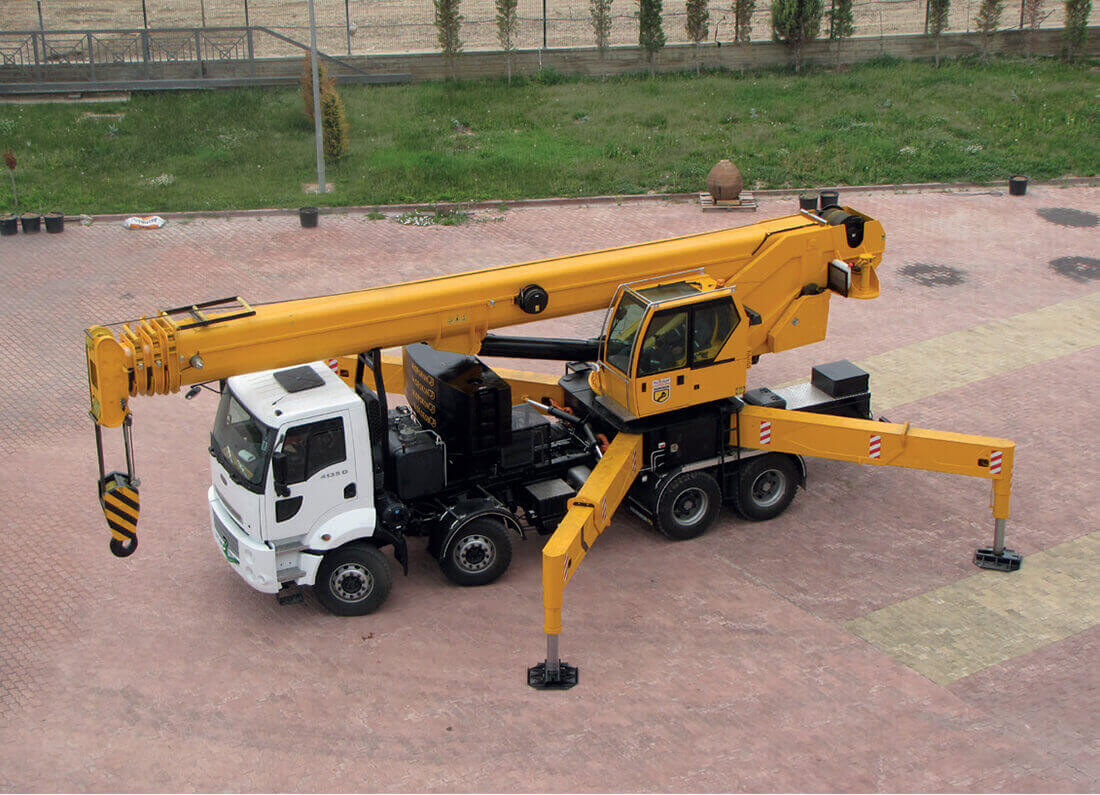

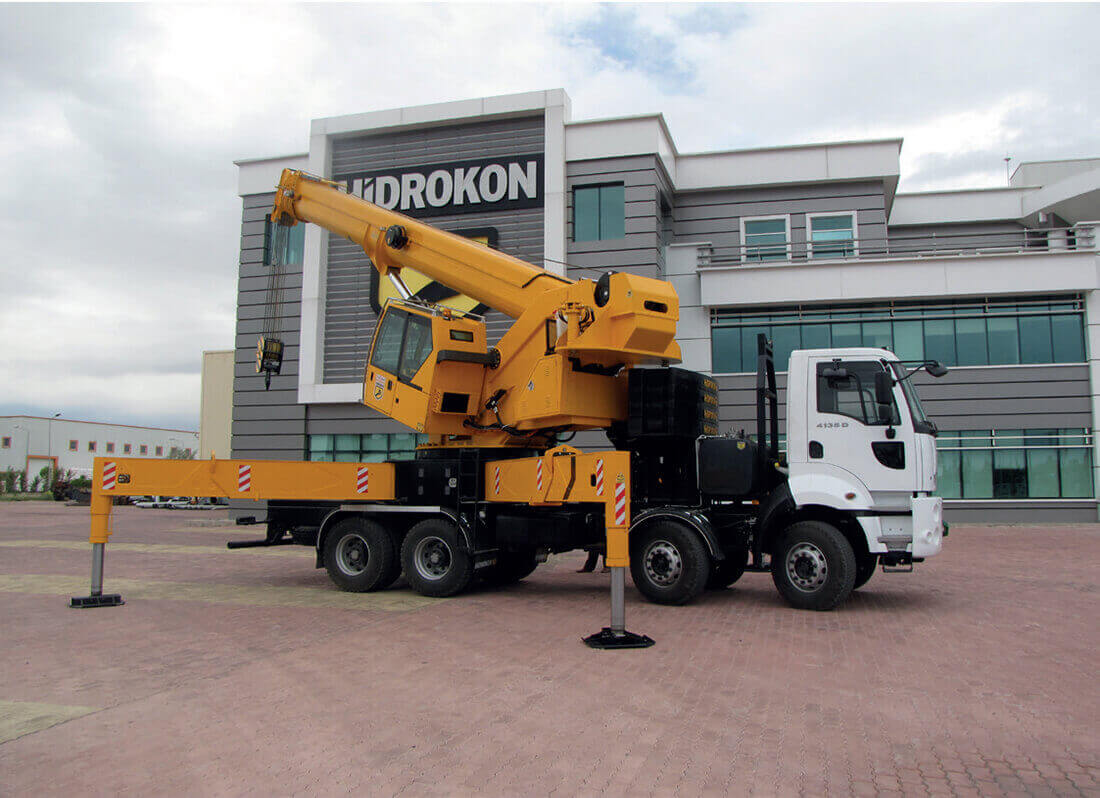

| Outriggers |
| Four X-type outriggers that can be hydraulically extended. Can be controlled from both sides of the crane. |
|
|
| Tower Group |
| Slewing Bearing System |
| A hydraulic motor-driven planetary gear reducer with a slewing bearing system enables 360° rotation, offering a gear rotation speed of 1.5 rpm. |
|
|
| Operator Cabin |
| Ergonomically designed operator cabin providing optimum visibility for the operator. Heating and lifting up to 25° features are available. |
|
|
| Counterweight |
| 8.3 t fixed counterweight. |
|
|
|

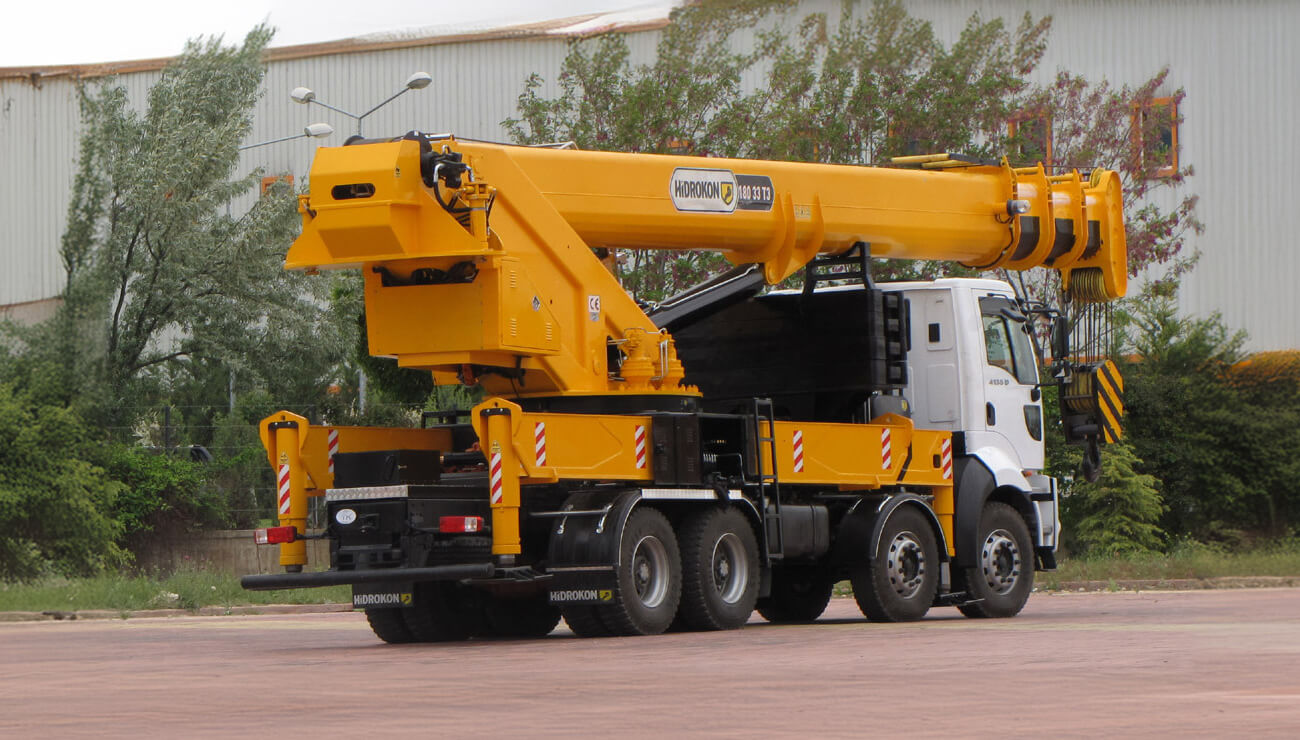

Booms |
| Telescopic Booms |
The system consists of 1 main boom and 3 extension booms. The booms are hydraulically extended and move simultaneously. Manufactured from high strength structural steel.
• Main boom length 10.5 m – 33m.
• Boom angle range 0° - 82°.
• Main boom reaches from 0° to 82° in 95 seconds. |
|
|
| Safety Equipment |
| Load weighing system, stability control system, pulley switch, pressure control valve, twin load holding valve. |
|
|
| Fly Jib |
It consists of cage and welded structure.
• Offset angle range is 0°, 50°.
• Fixed length of jib boom is 9.2 m / 16.2 m. |
|
|
| Chassis |
|
|
 |
a: distance between cabin and ground level
b: distance between chassis and ground level
8x4 vehicle, to be provided by the customer.
Minimum wheelbase may vary depending on the vehicle.
Max a: 2940 mm
Max b: 1110 mm |
