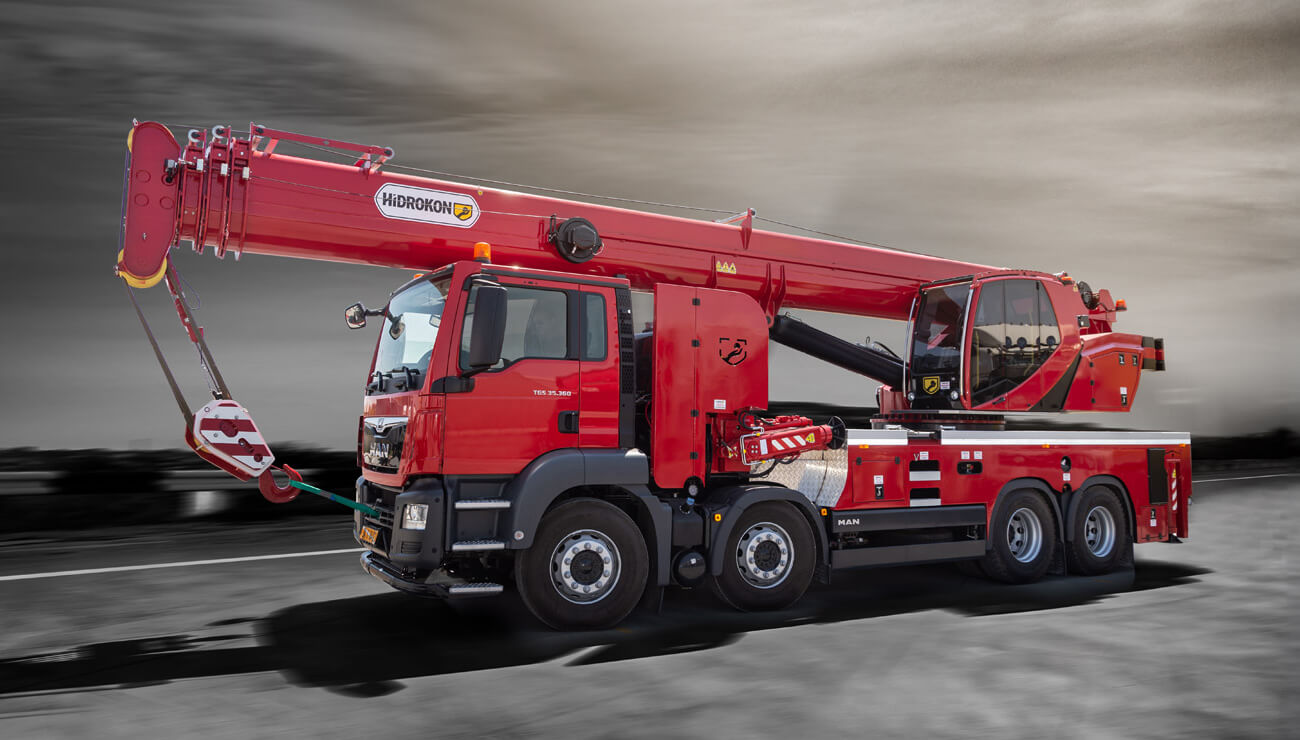

Chassis |
Crane Chassis (Subframe) |
HIDROKON design and manufacturing, chassis with box type design, torsion resistant, high strength steel welded construction. |
|

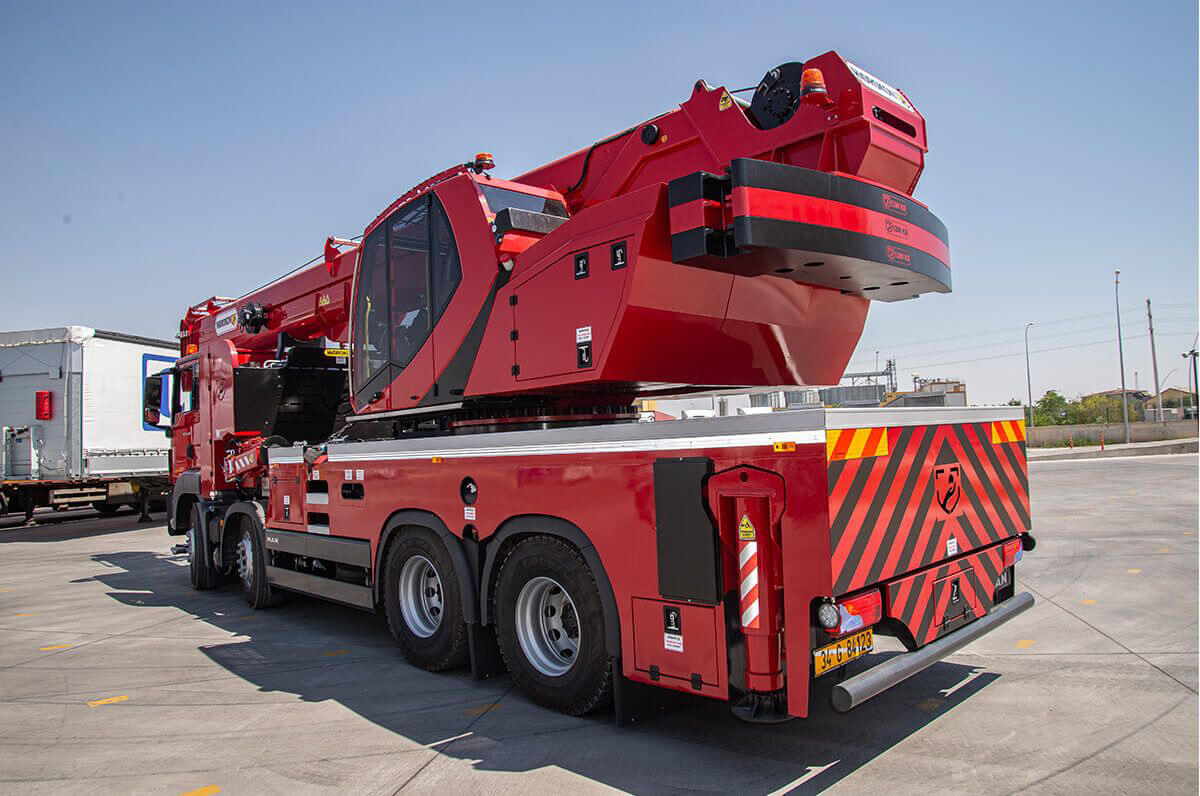

Counterweights |

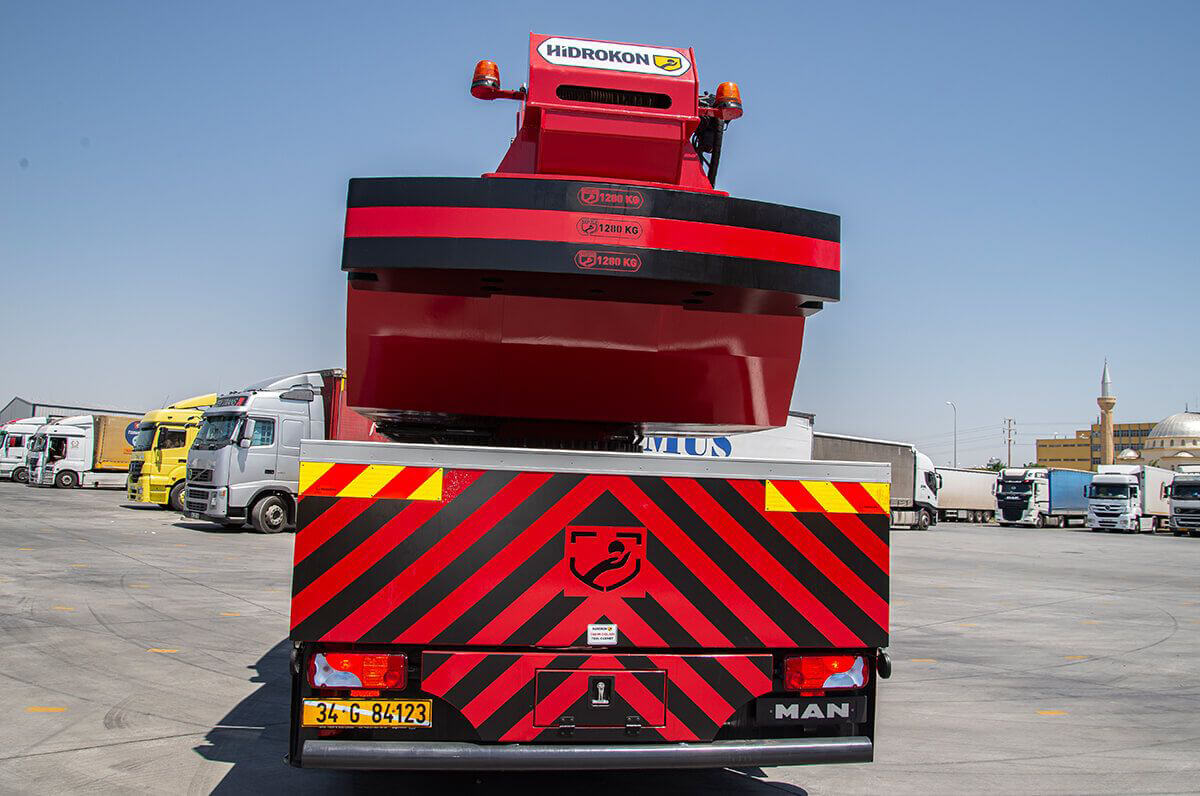

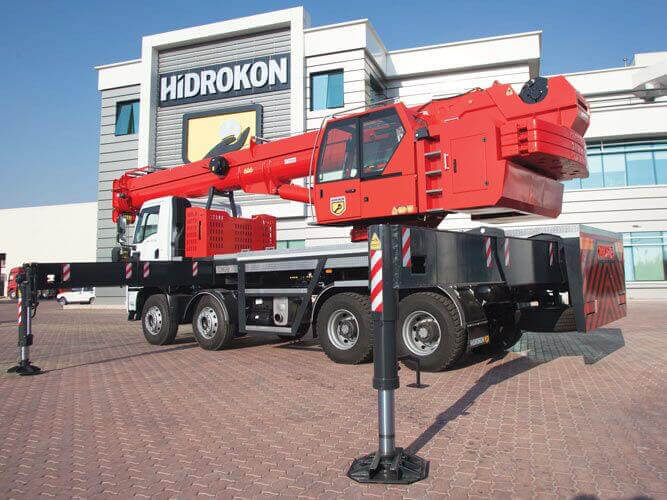

Four units of H type outriggers that can be hydraulically extended. Can be controlled from both sides of the crane. |
|
Tower Group |

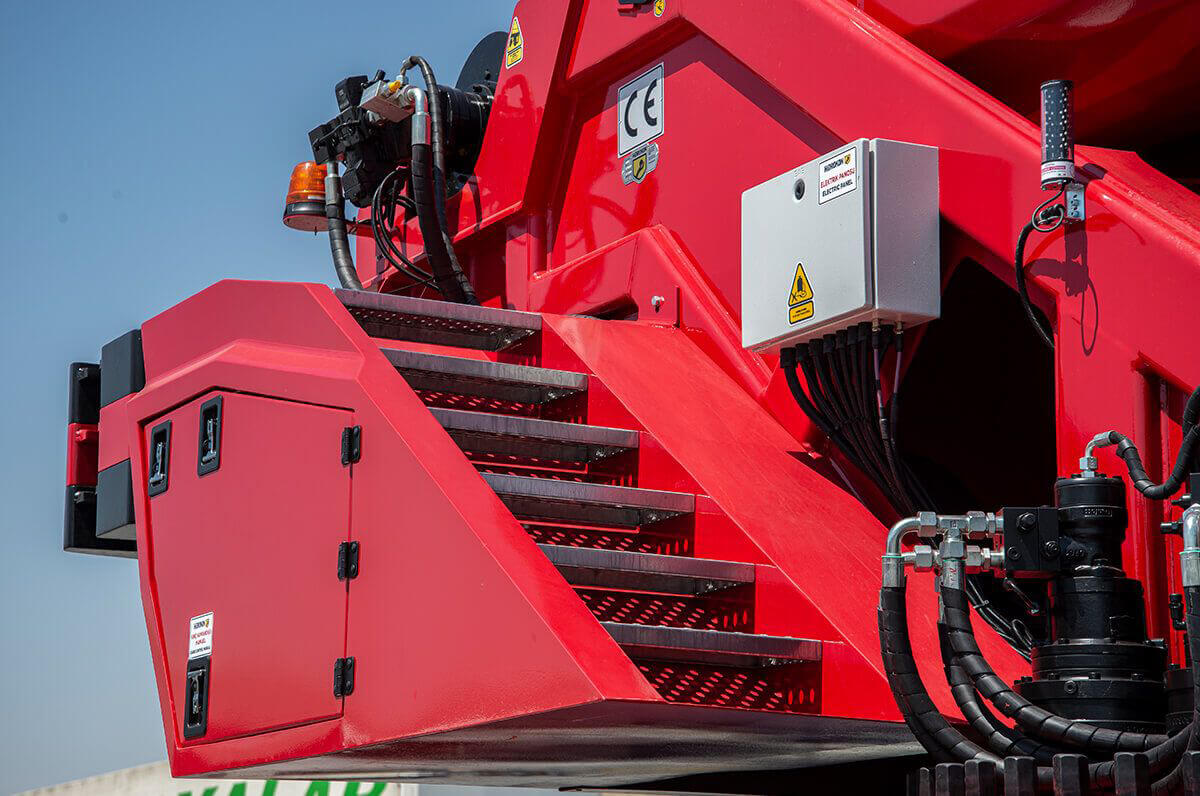

Slewing Bearing System |
A hydraulic motor-driven planetary gear reducer with a slewing bearing system enables 360° rotation, offering a gear rotation speed of 1.5 rpm. |
|

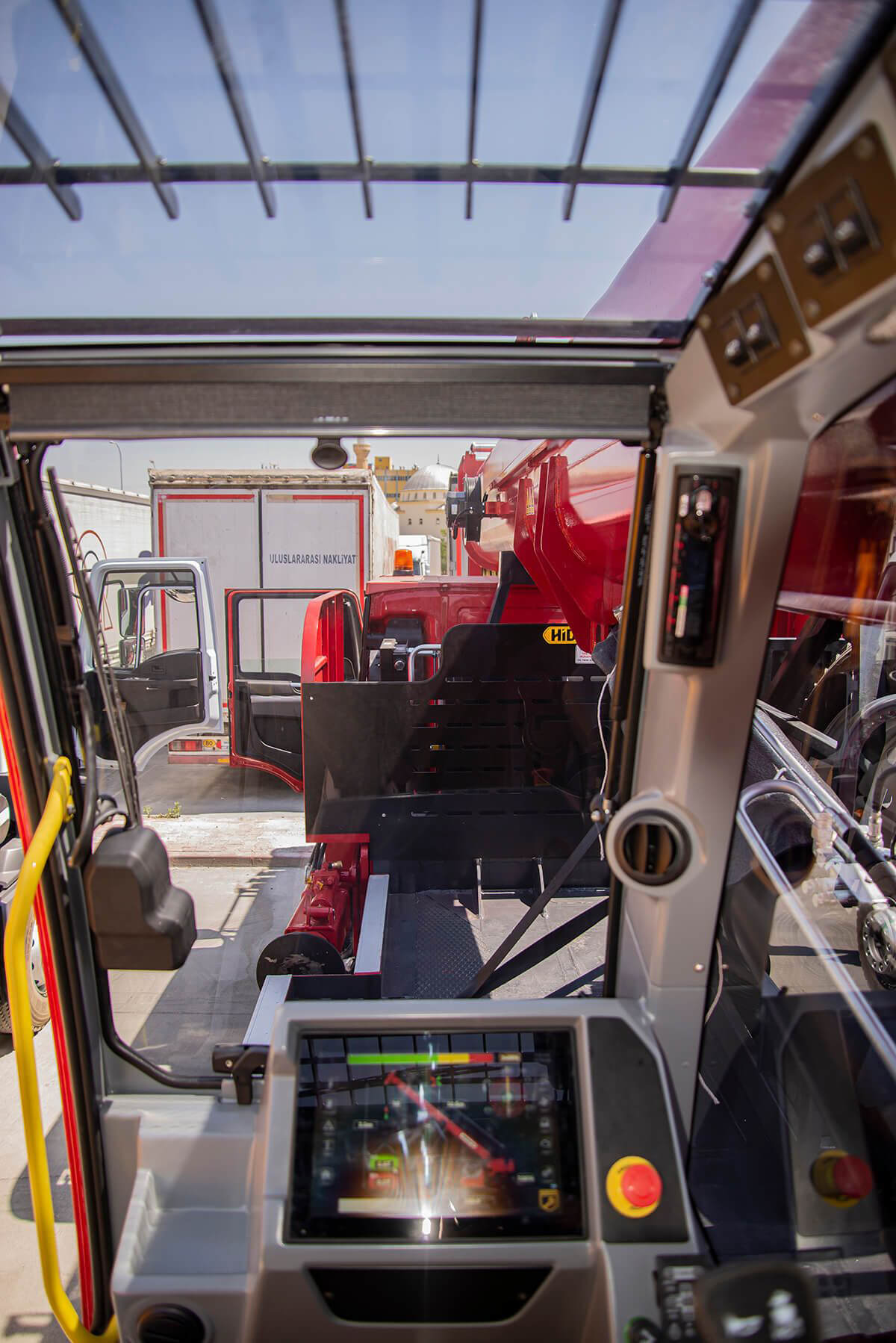

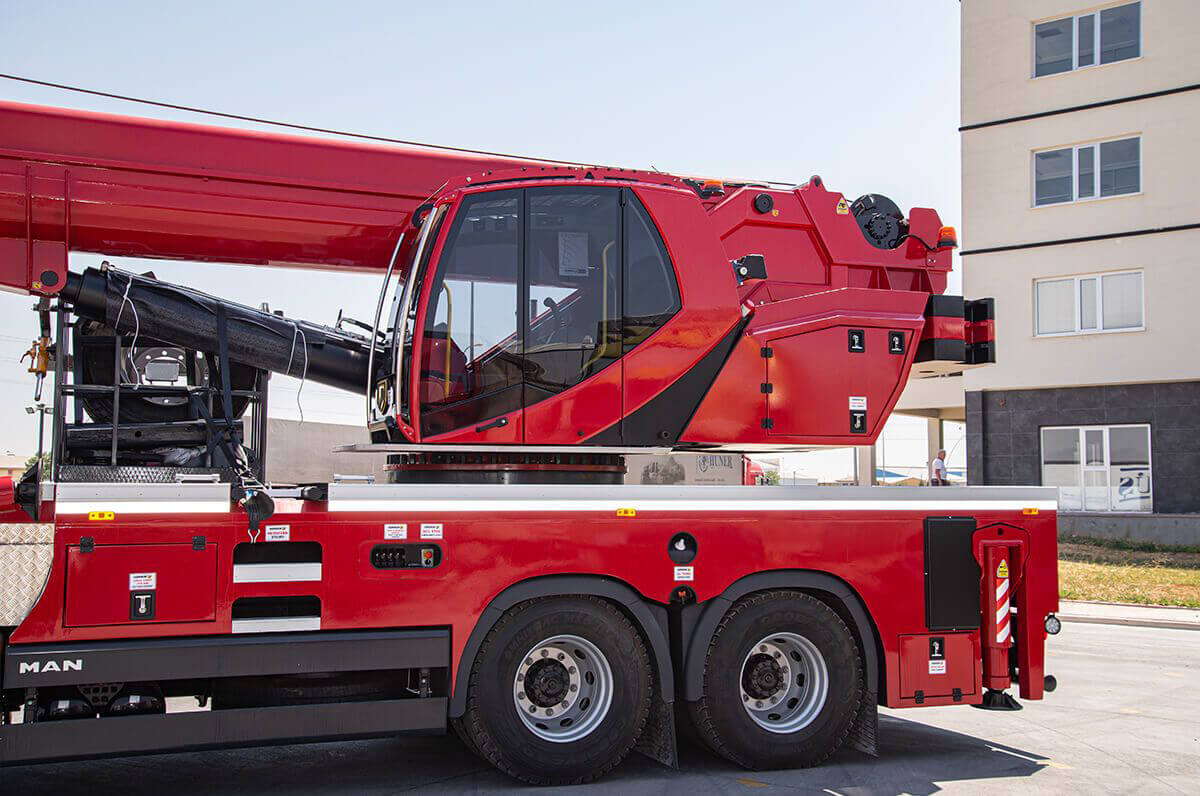

Operator Cabin |

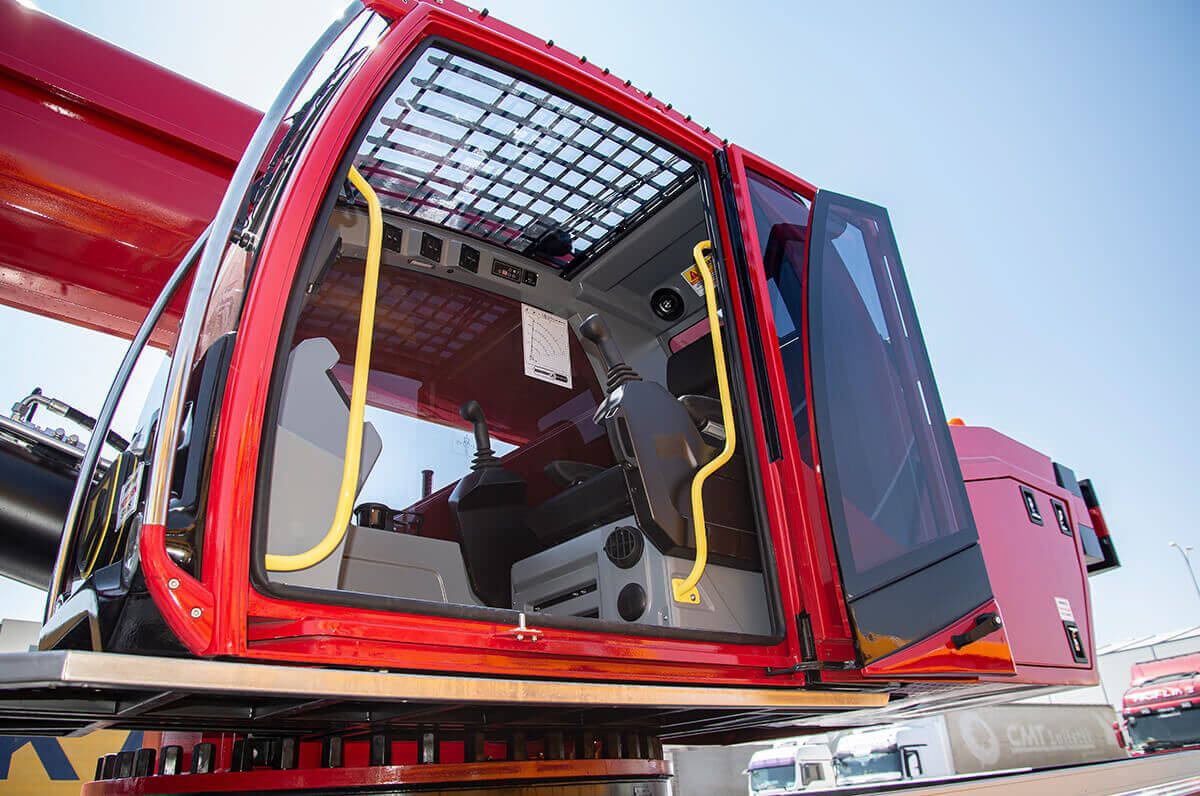

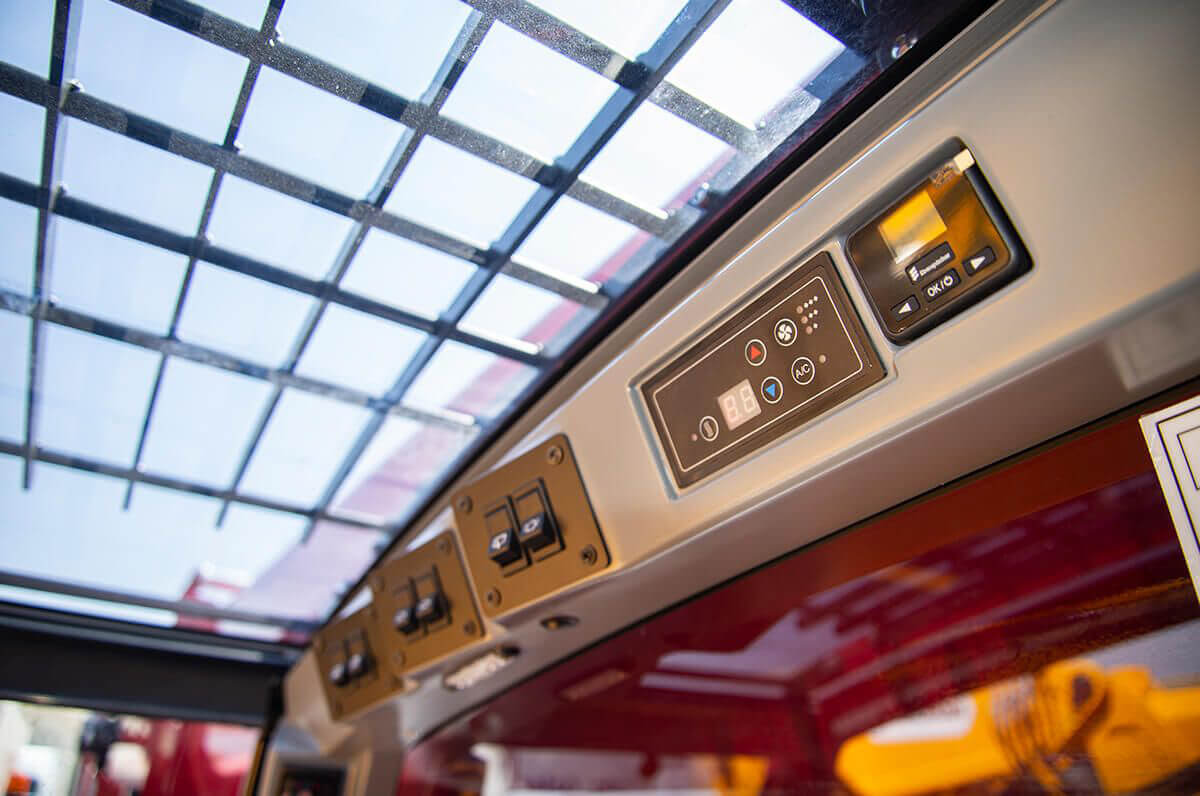

Ergonomically designed operator cabin providing optimum visibility for the operator. Heating and lifting up to 25° features are available. |
|

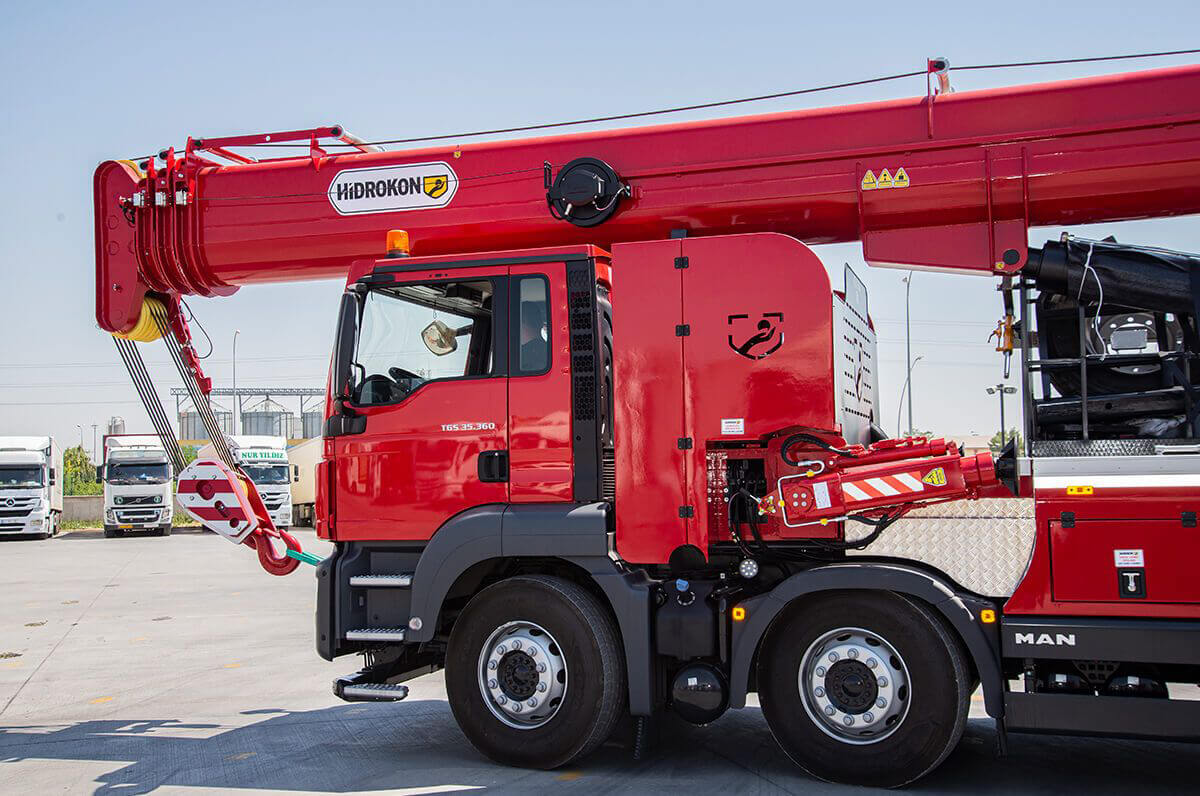

Outriggers |

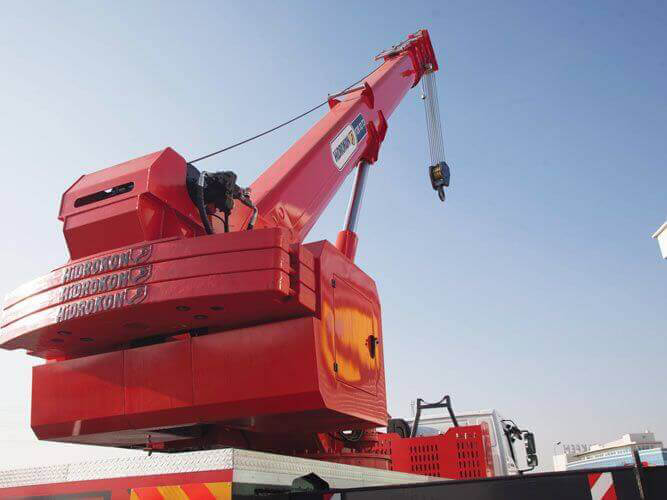

3.75 t

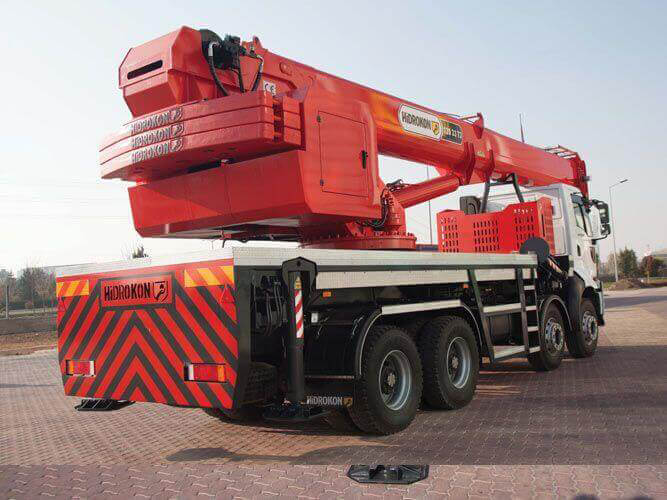

fixed counterweight. |
|
Booms |

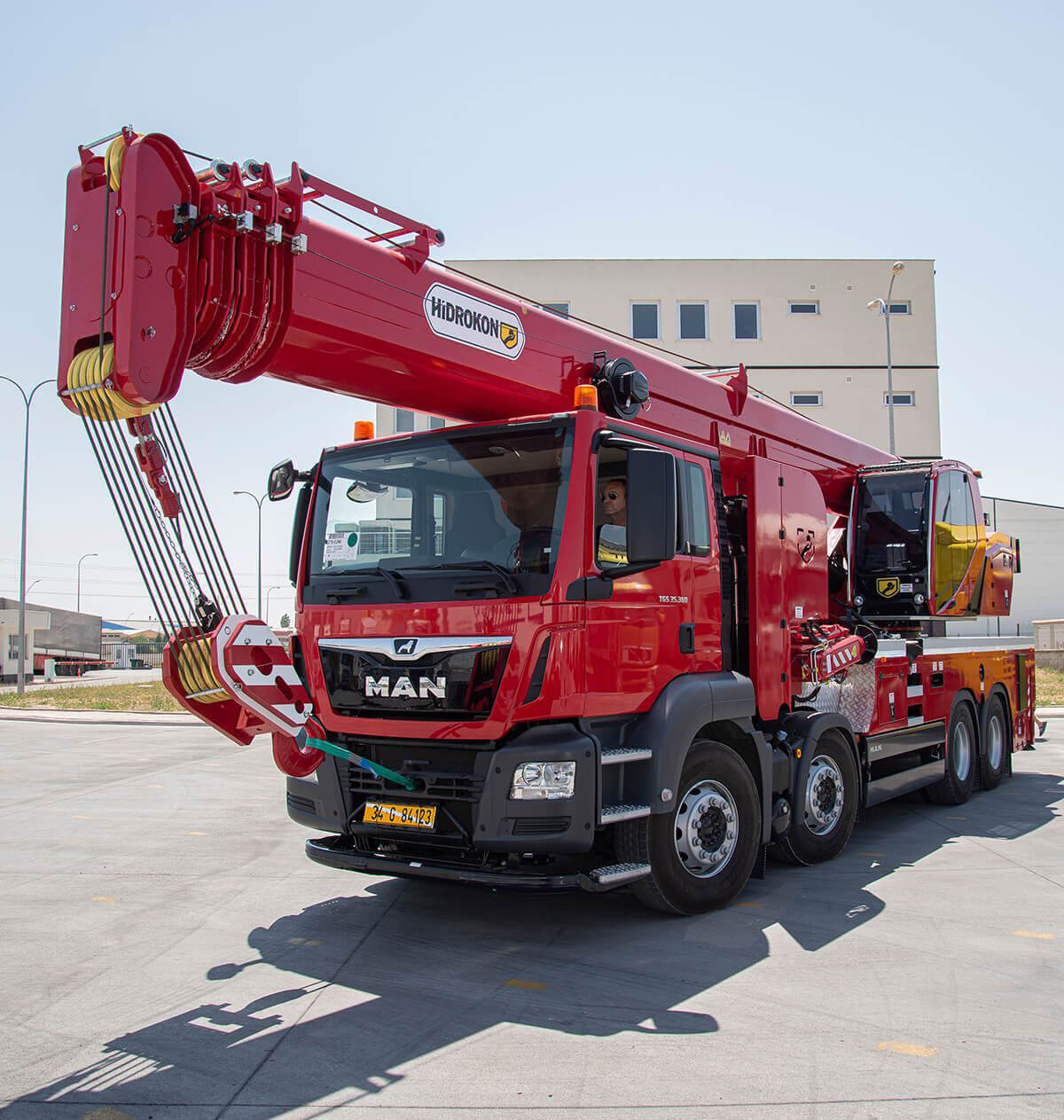

Telescopic Booms |

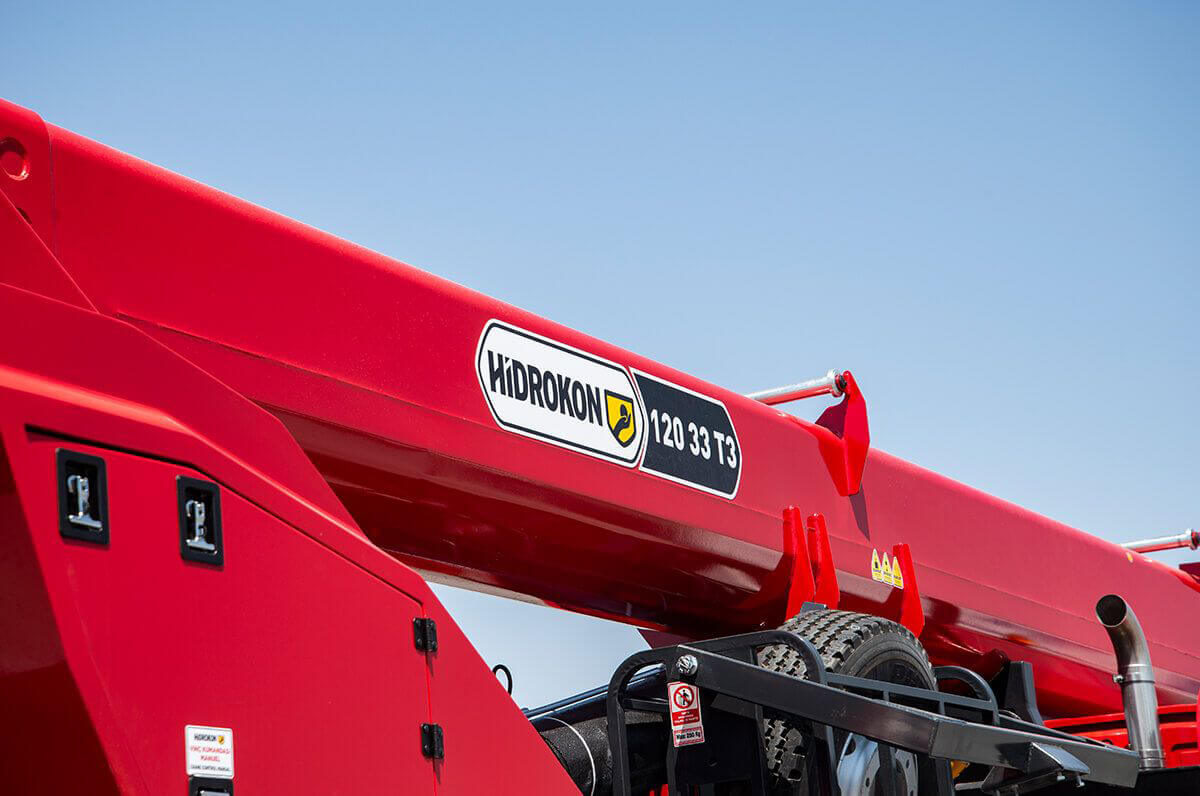

The system consists of 1 main boom and 3 extension booms. Booms are hydraulically extended and move simultaneously. Manufactured from high strength structural steel.
• Main boom length 10.5 m – 33m.
• Boom angle range 0° - 82°.
• Main boom reaches from 0° to 82° in 60 seconds. |
|
Safety Equipment |

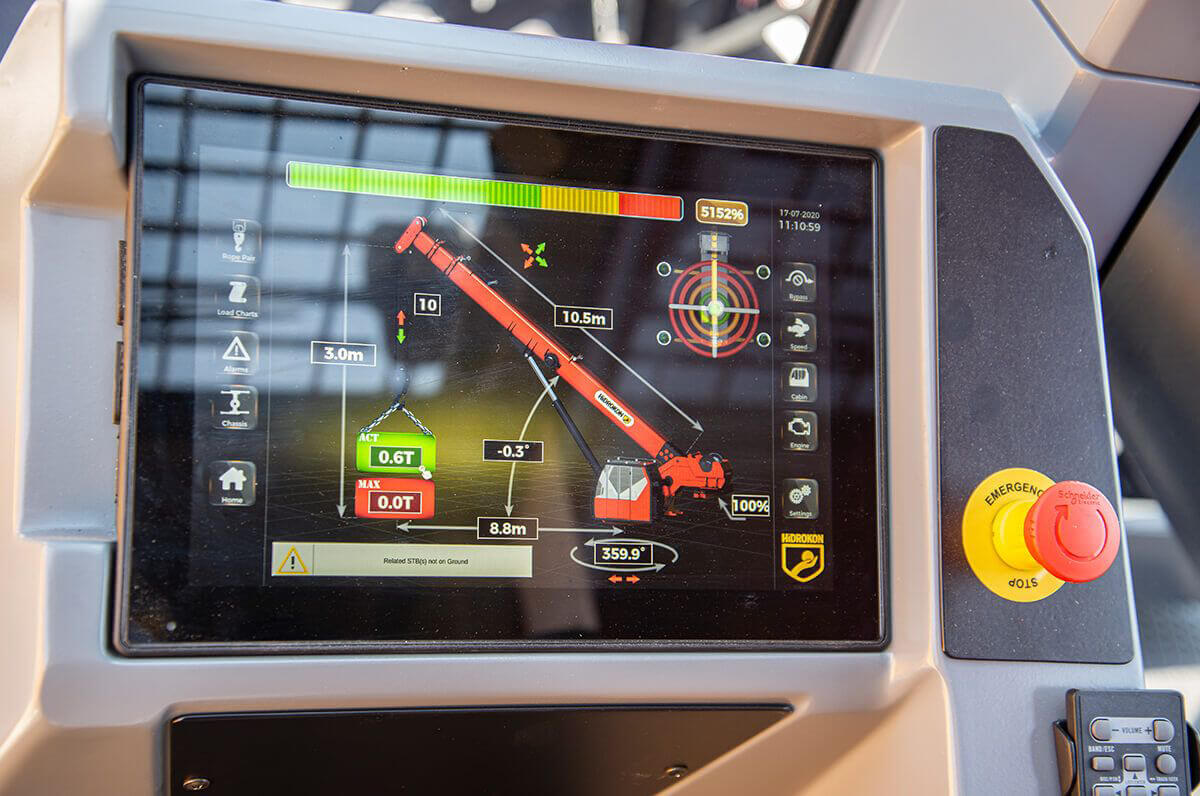

Load weighing system, stability control system, pulley switch, pressure control valve, twin load holding valve. |
|
Chassis |
|
 |
a: distance between cabin and ground level
b: distance between chassis and ground level
8x4 vehicle, to be supplied by the customer.
Minimum wheelbase may vary depending on the vehicle.
Max a : 2990 mm
Max b : 1150 mm |
