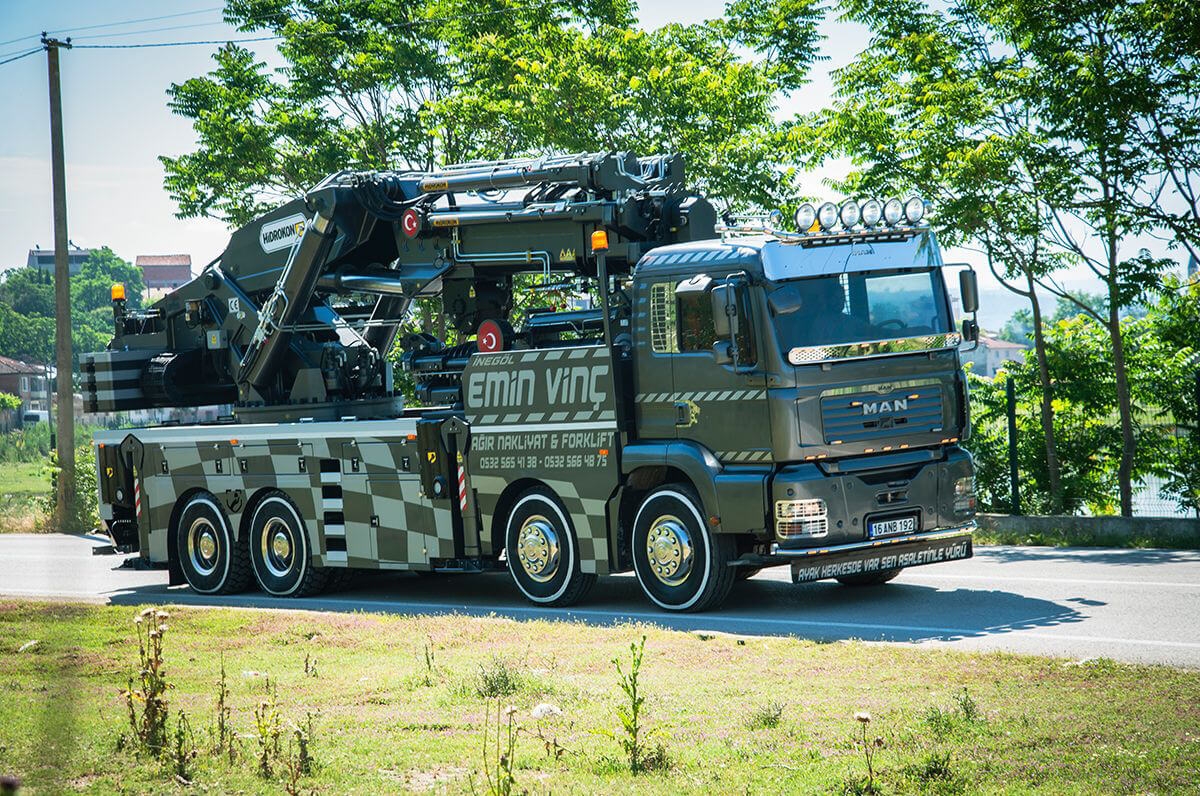

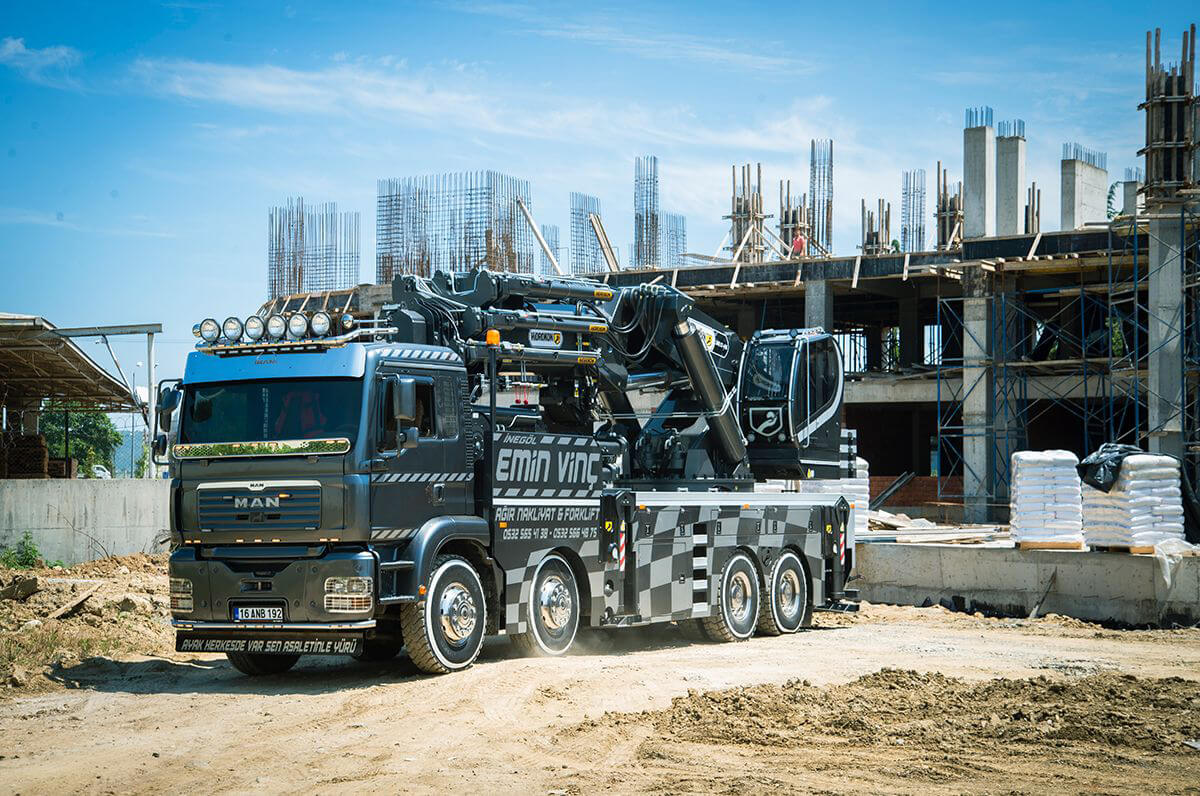

HK 240 L7+L6
Knuckle Boom Cranes
Products | Knuckle Boom Cranes | HK 240 L7+L6
Boom Extension by Double Lever
Operator Cabin
Operator Cabin Heating
Operator Cabin A/C

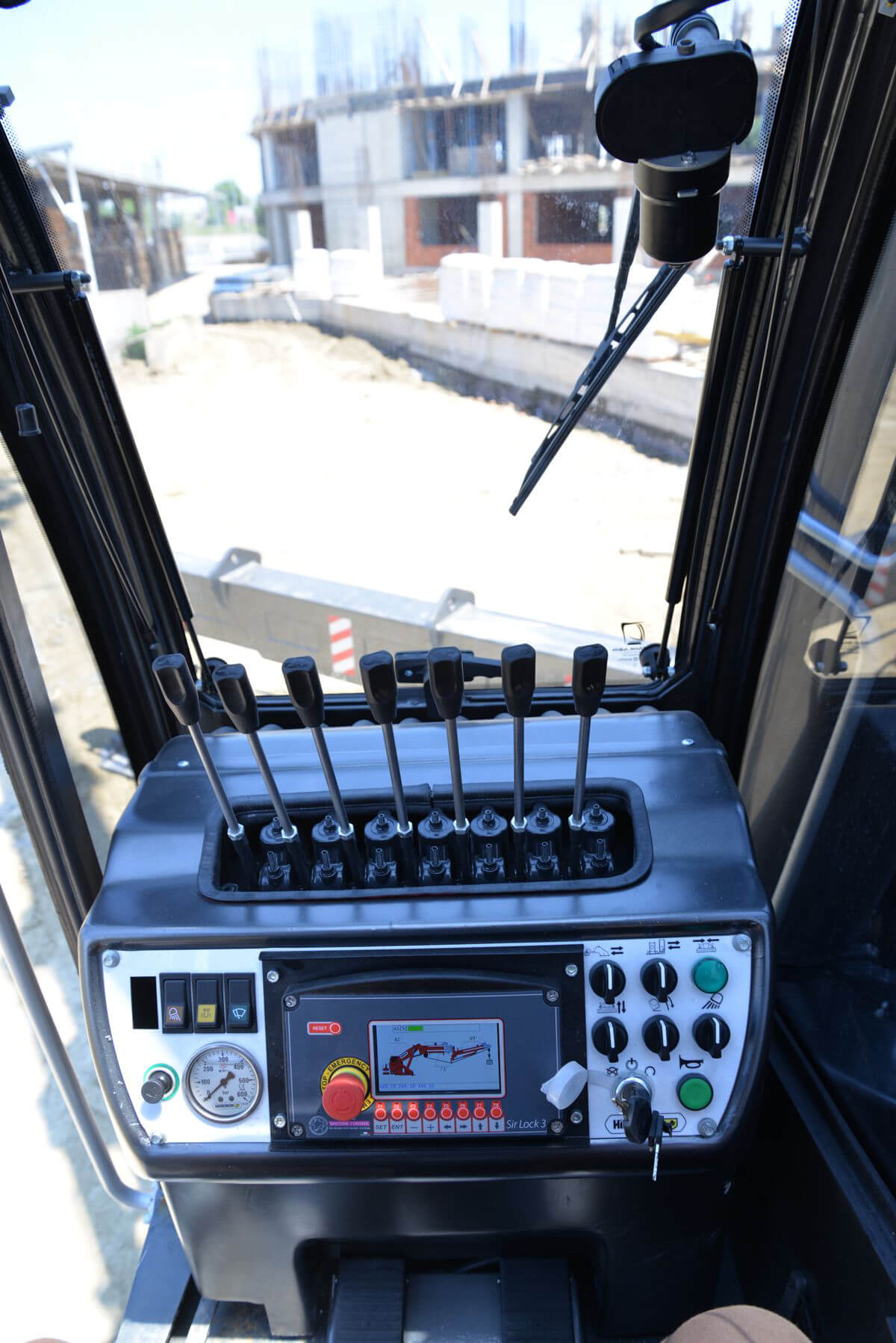

In-cabin joystick
Proportional Valve

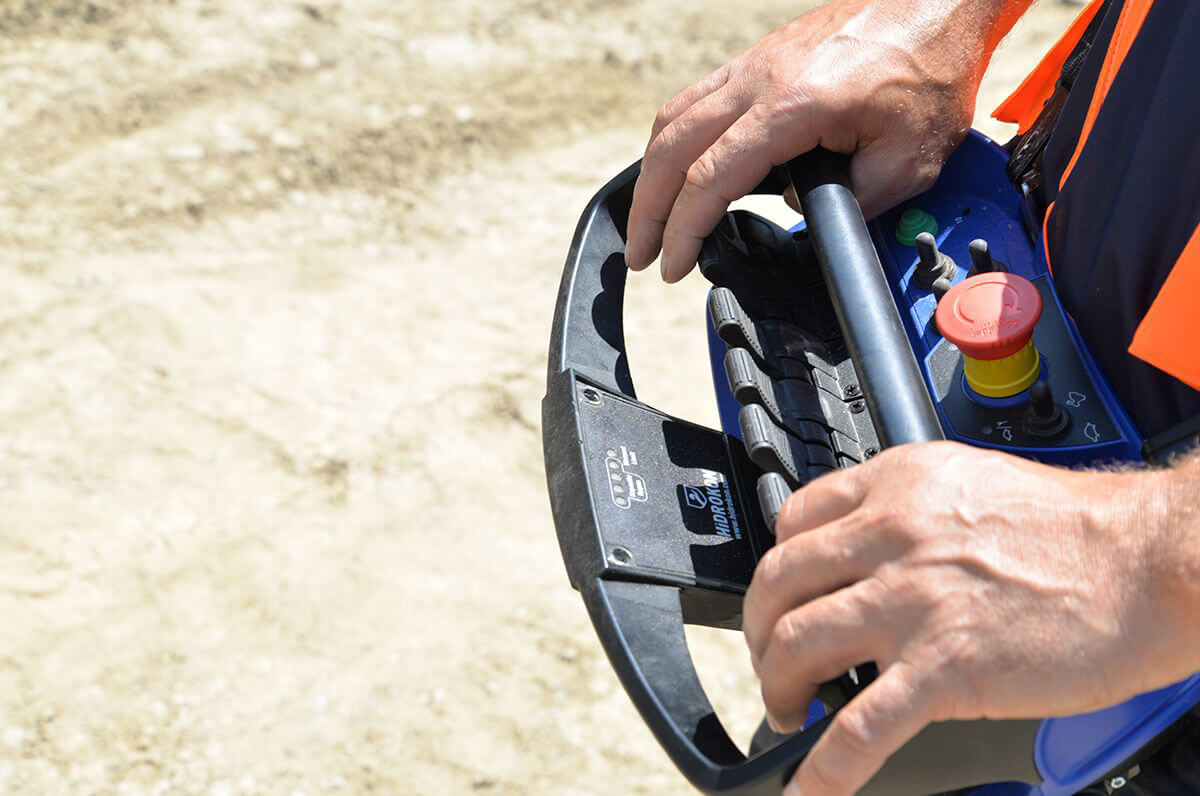

Radio Remote Control for Crane
Radio Remote Control for Outriggers
Automatic Leveling

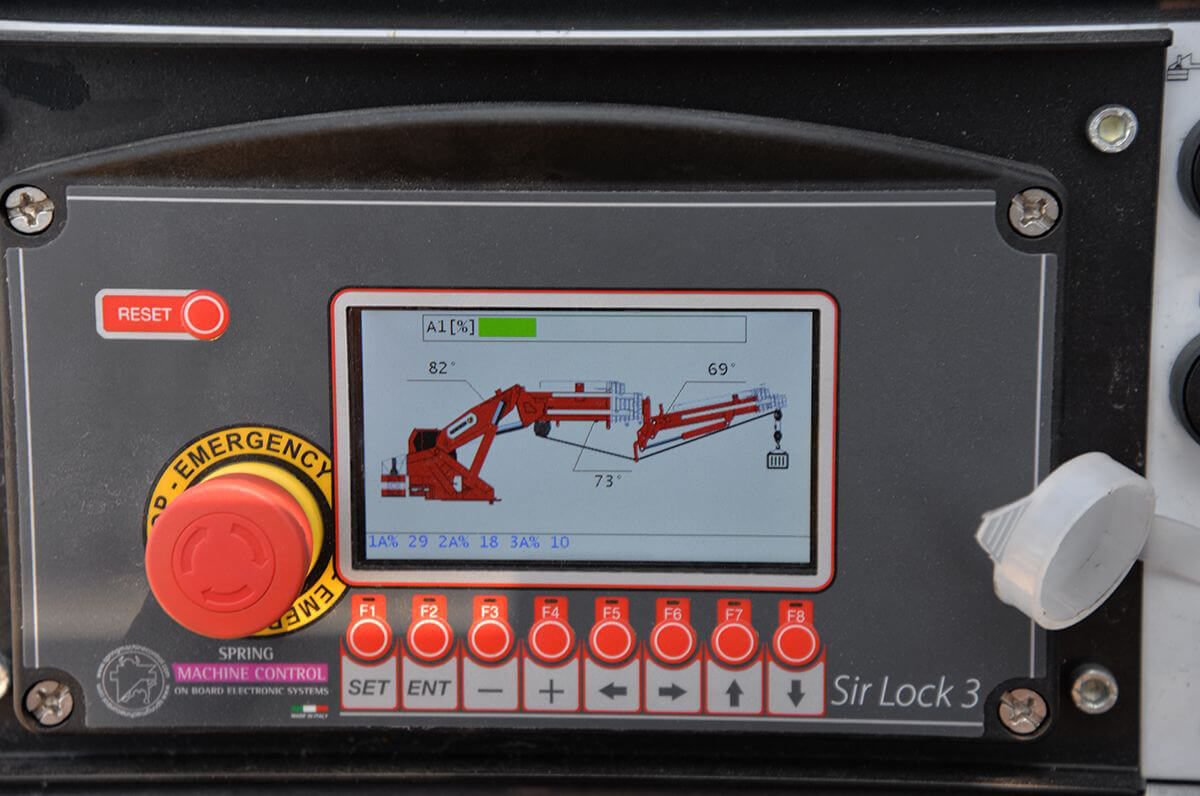

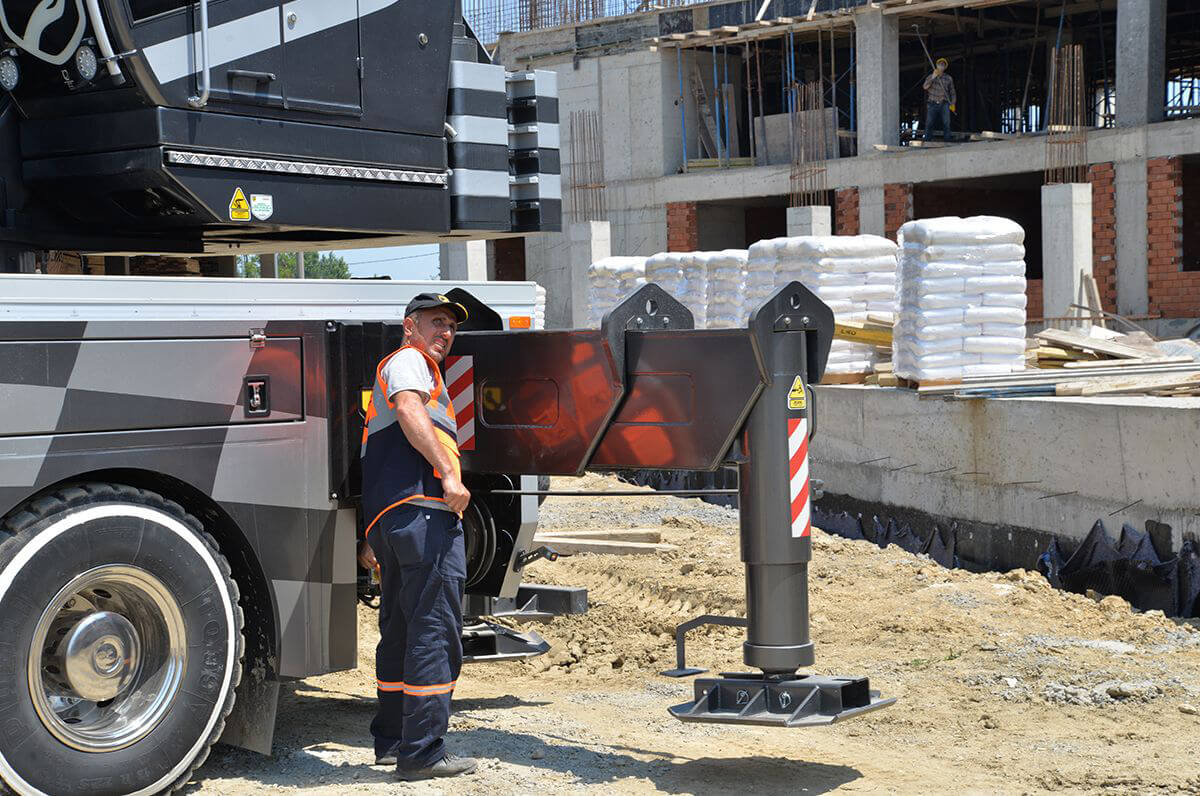

Outrigger Control System
%50
Load Pin
Variable Displacement Pump
Automatic Lubrication
Hoist Drum
4.5 t
Counterweight
Double Hook
Oil Tank
748l
Slewing Bearing
Ø1747
Standard
Optional
  • TECHNICAL SPECIFICATIONS

    Maximum Vertical Hydraulic Outreach 26.45 m
    Maximum Vertical Mechanical Outreach 32.06 m
    Maximum Vertical Hydraulic Outreach With Fly Jib 46.58 m
    Maximum Vertical Mechanical Outreach With Fly Jib 52.83 m
    Working Pressure 290 bar
    Rotation Angle (°) ∞(ENDLESS)
    Number Of Hydraulic Extensions 7
    Number Of Hydraulic Extensions On Fly Jib 6
    Number Of Mechanical Extensions 2
    Number Of Mechanical Extensions On Fly Jib 2
    Counterweight 8295 kg
    Oil Tank Capacity 748 l
    Dead Weight 31710 kg
    Dead Weight With Fly Jib 36090 kg


    *Boom deflections are not considered in the calculations for vertical and horizontal reach.


  • LIFTING DIAGRAMS

    HK 240 L7

    * Lifting capacities of the main boom are valid when manual extensions are not installed. * In vertical and horizontal distances, boom deflections are not calculated. * Subject to change without prior notice. *In the case of working in front of the cab area and / or on a surface where outrigger jacks are not balanced,all the responsibility belongs to the user.

    HK 240 L7+L6 2

    * Lifting capacities of the main boom are to be considered when the fly jib is not installed. * Main boom and fly jib load capacities are valid when manual extensions is not installed . * In vertical and horizontal distances , boom deflections are not calculated. * Subject to change without prior notice. *In the case of working in front of the cab area and / or on a surface where outrigger jacks are not balanced. all the responsibility belongs to the user.
