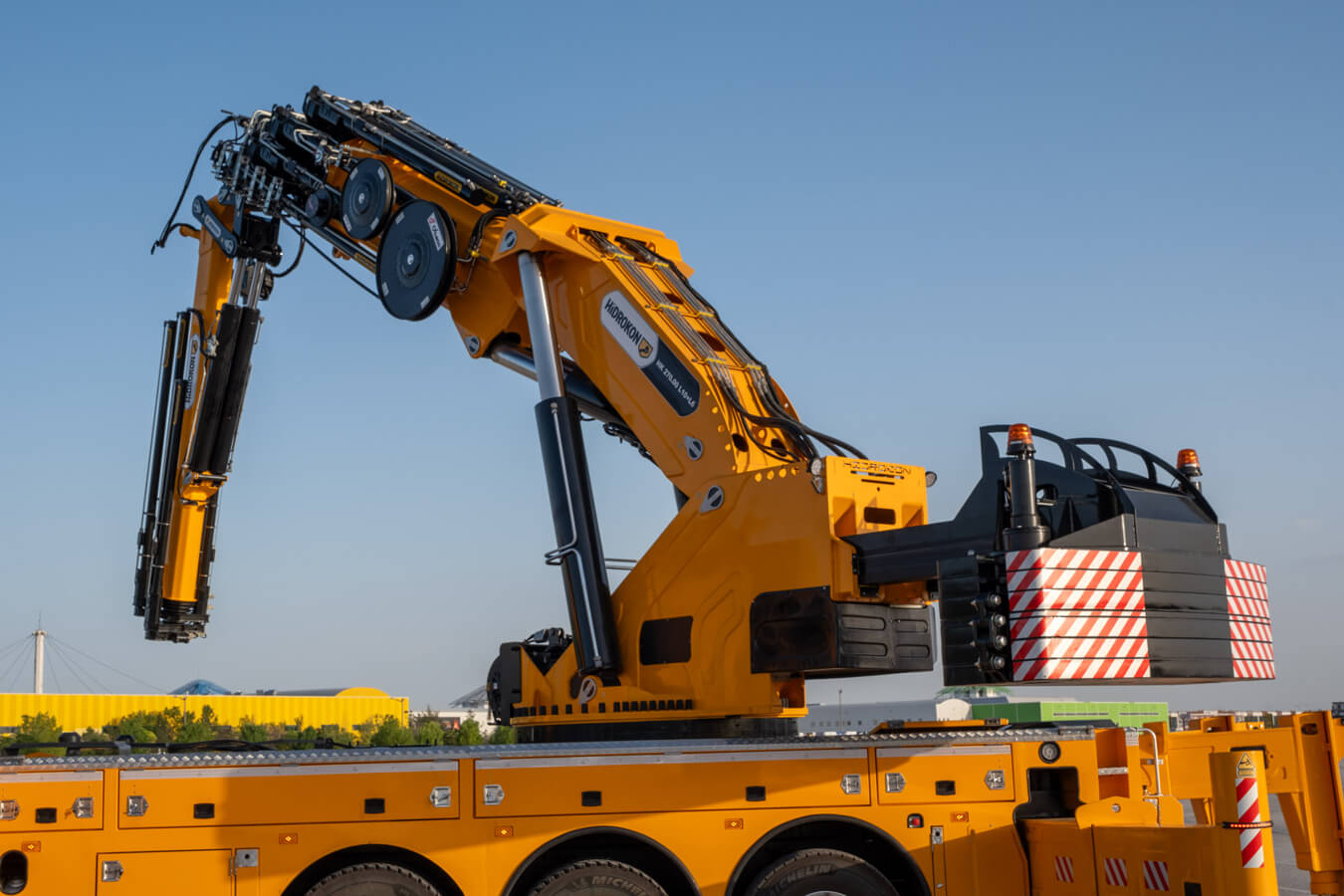

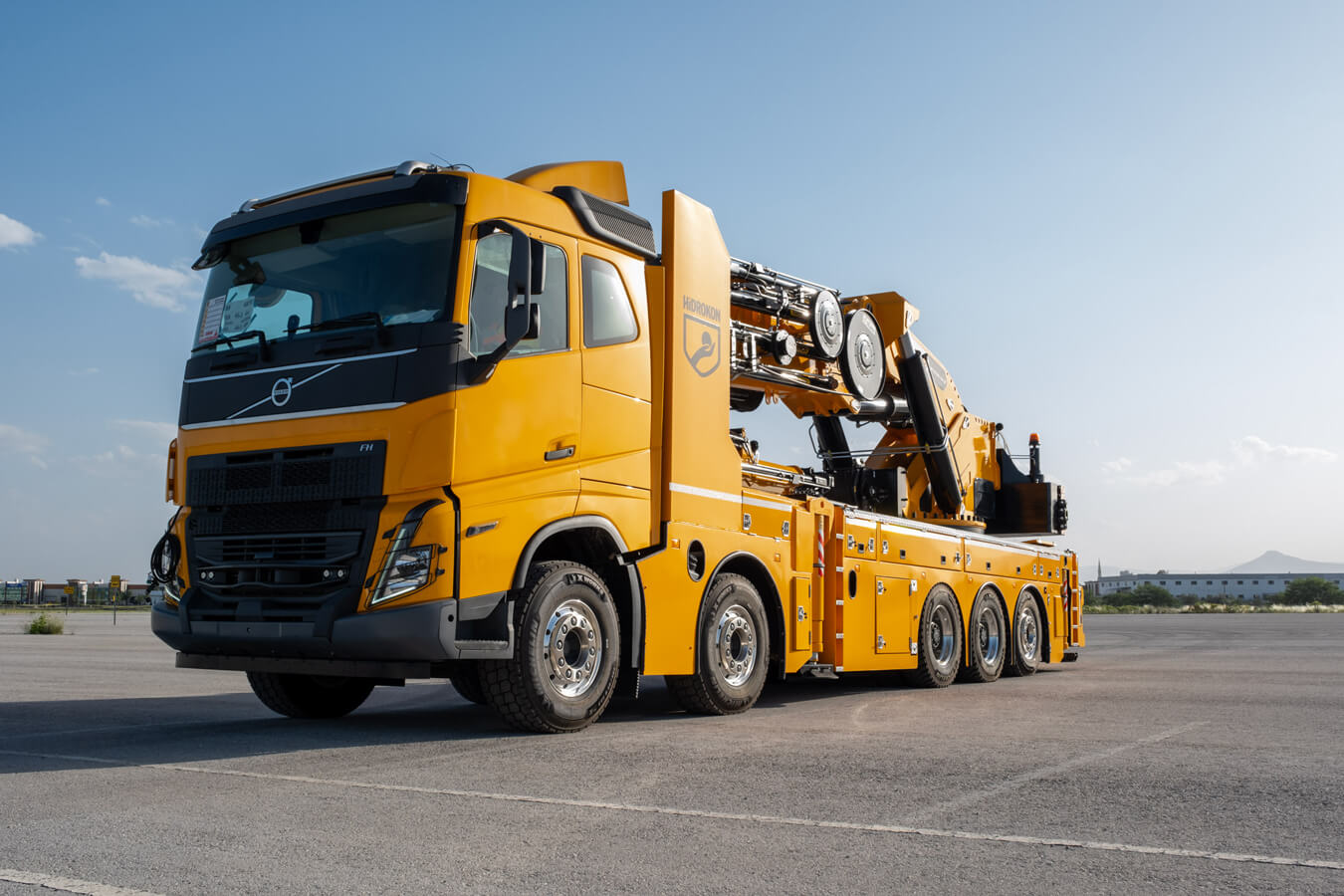

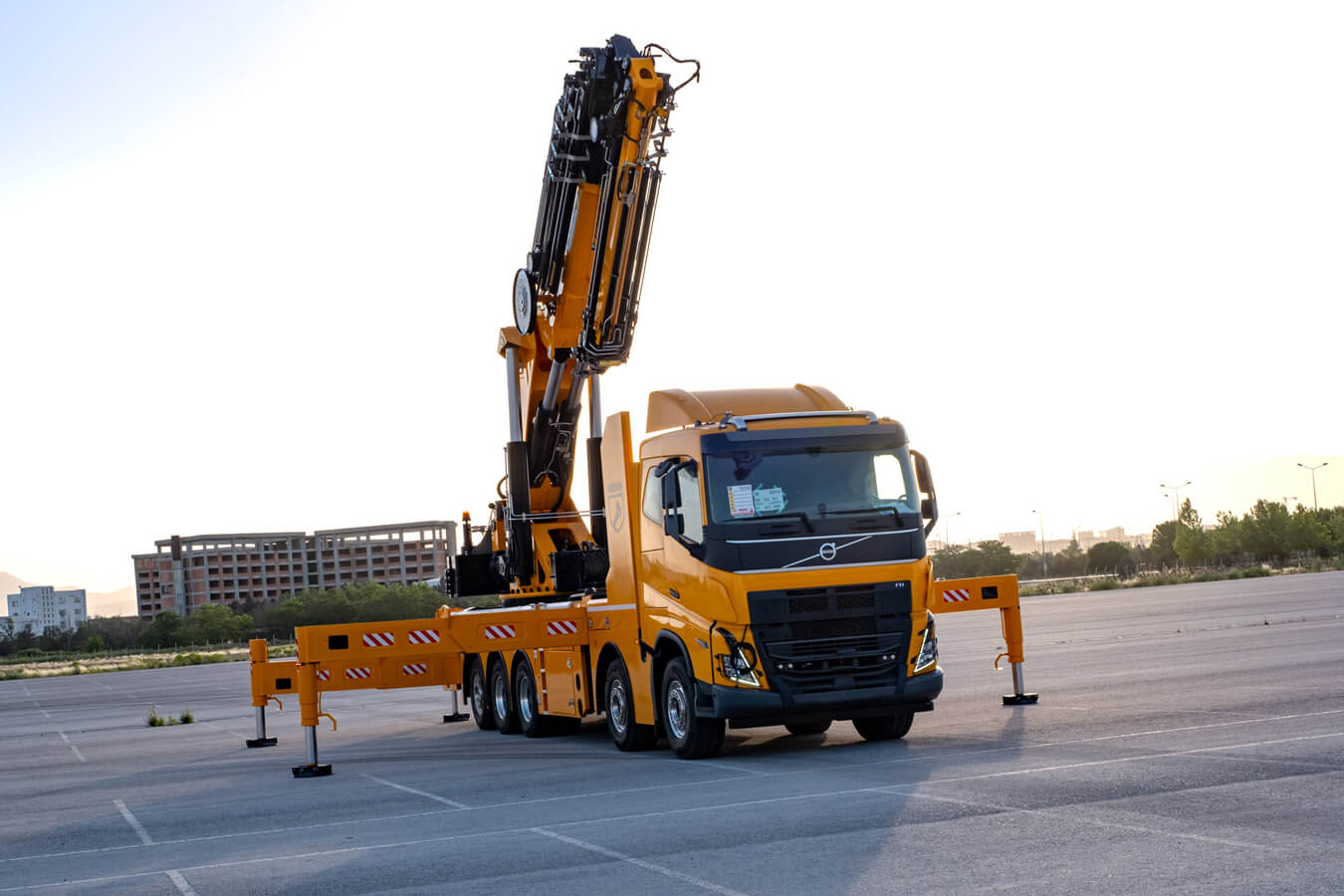

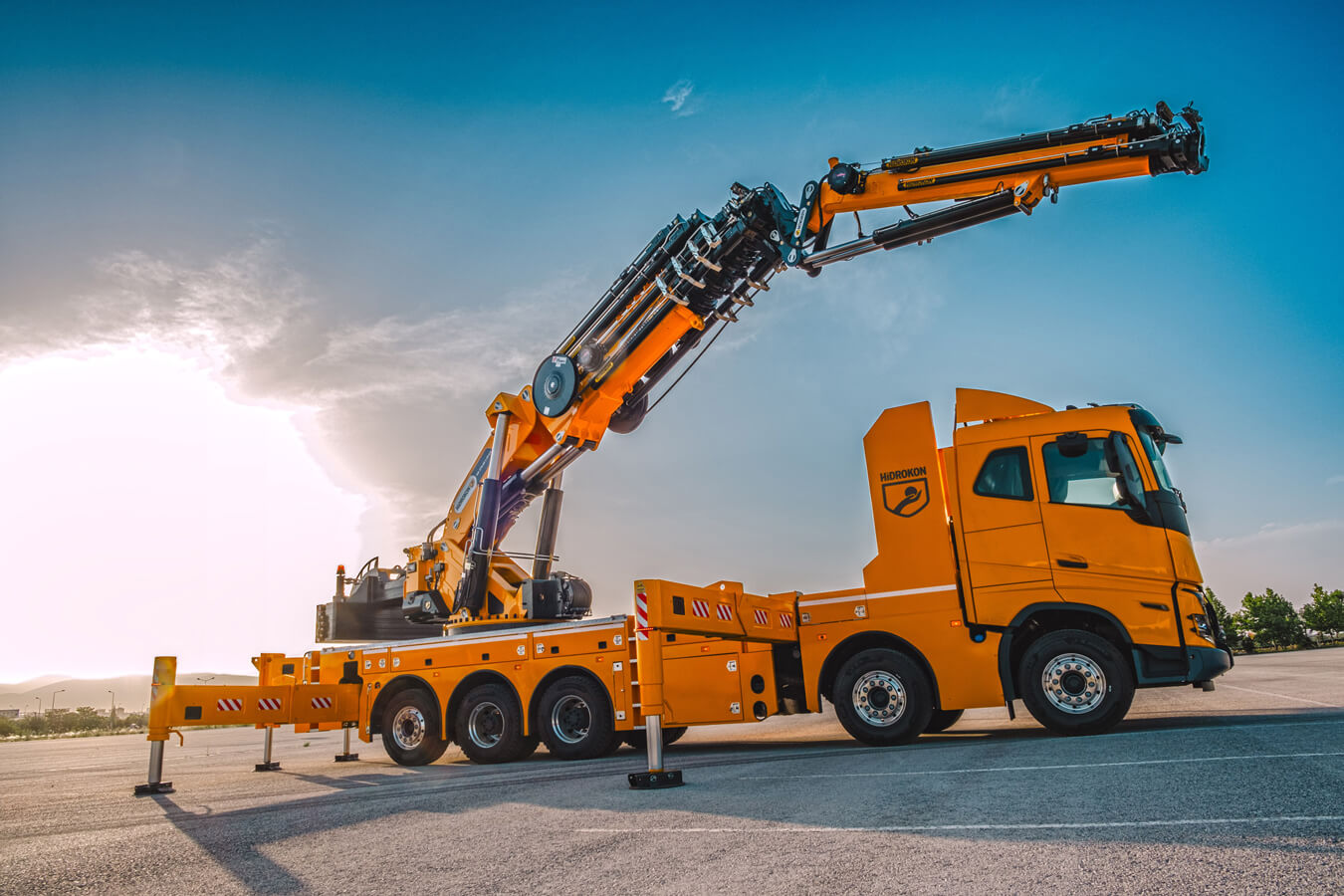

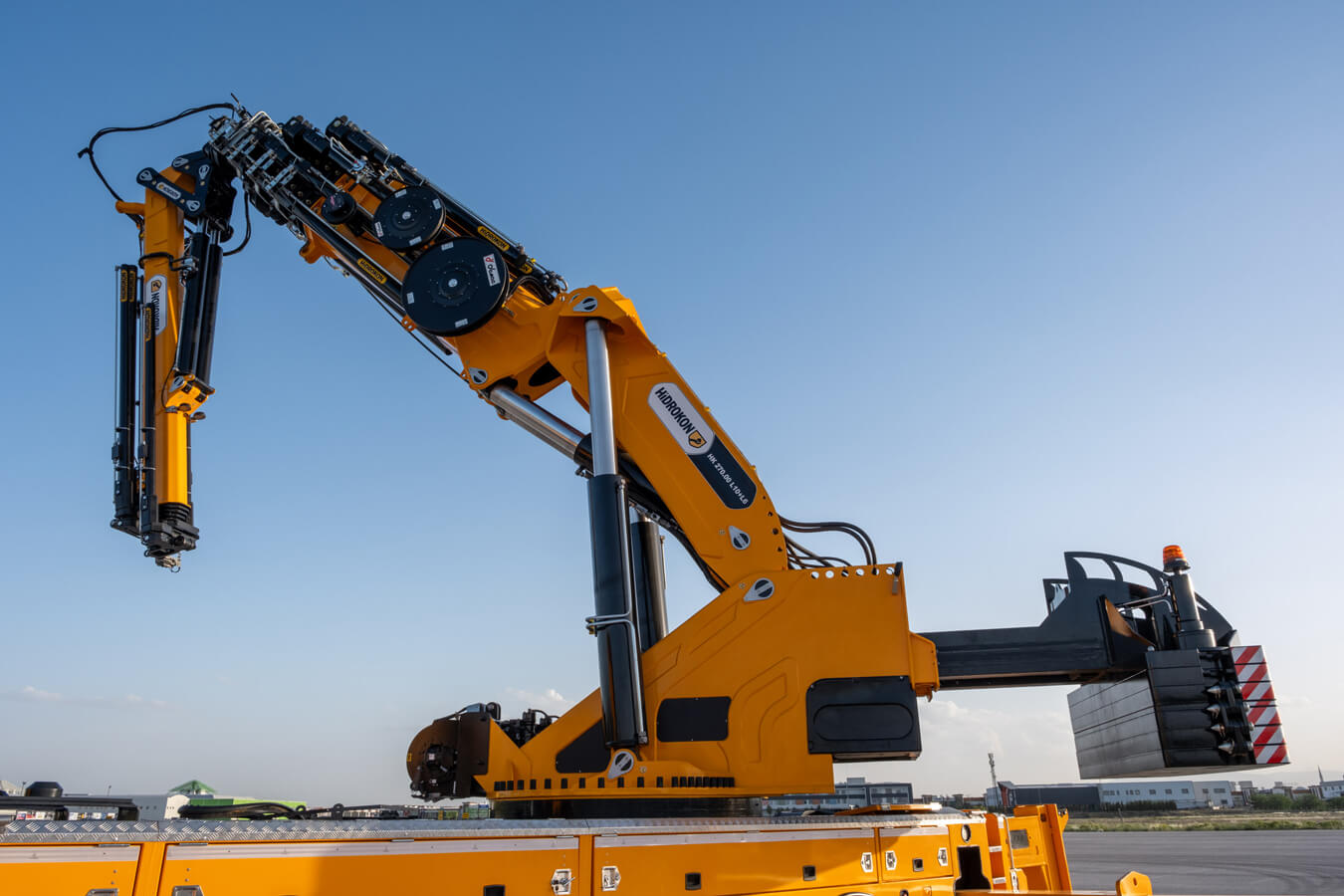

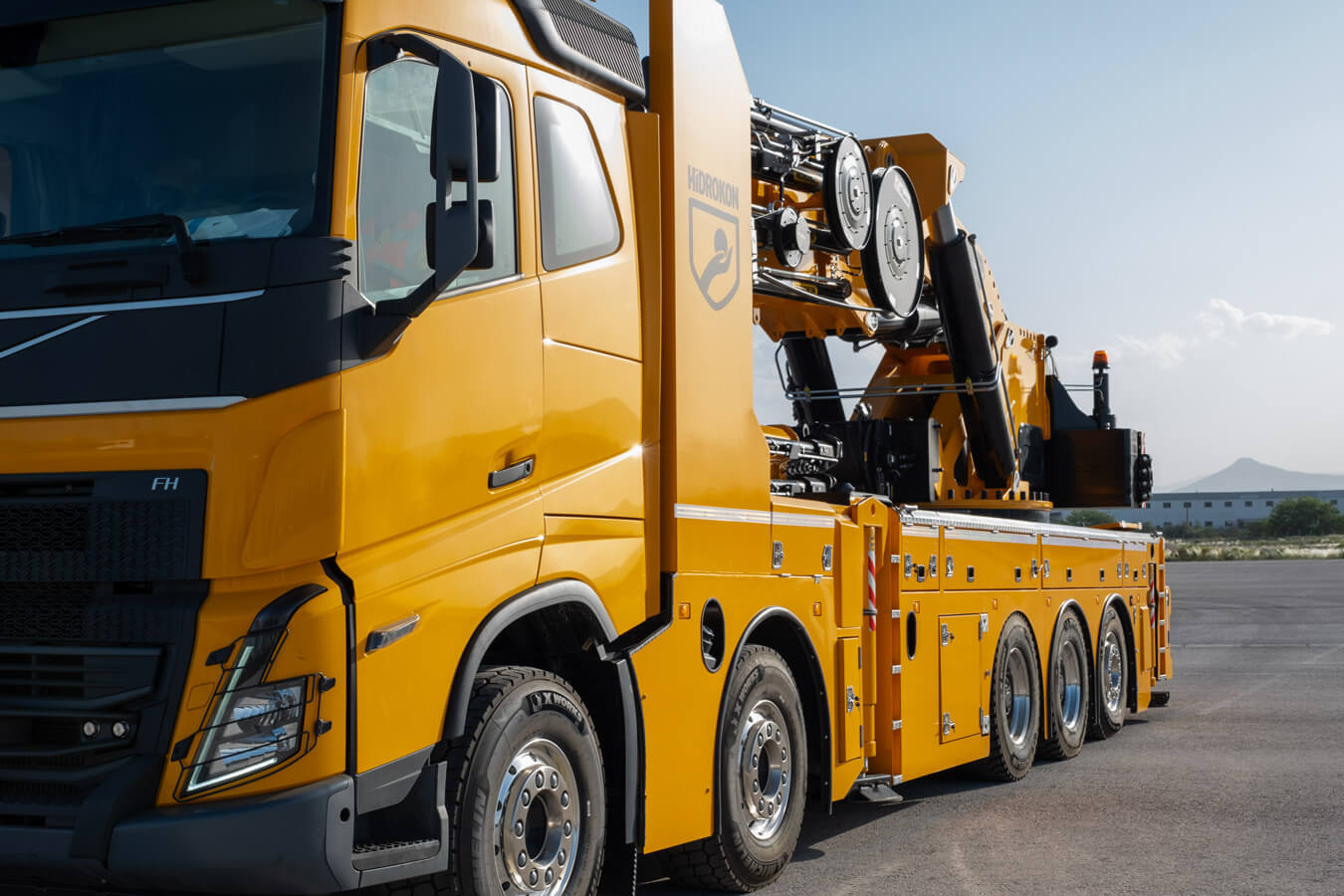

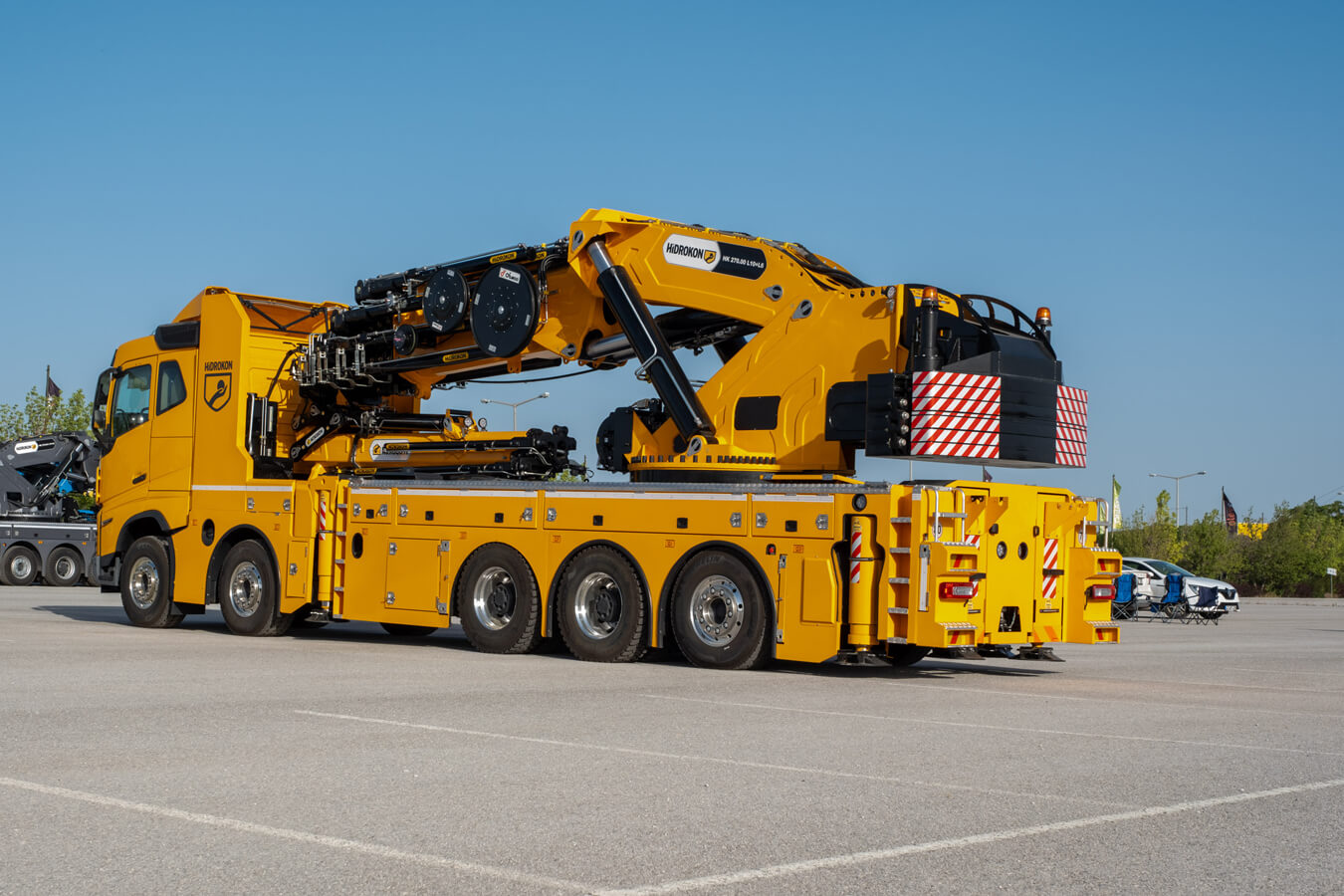

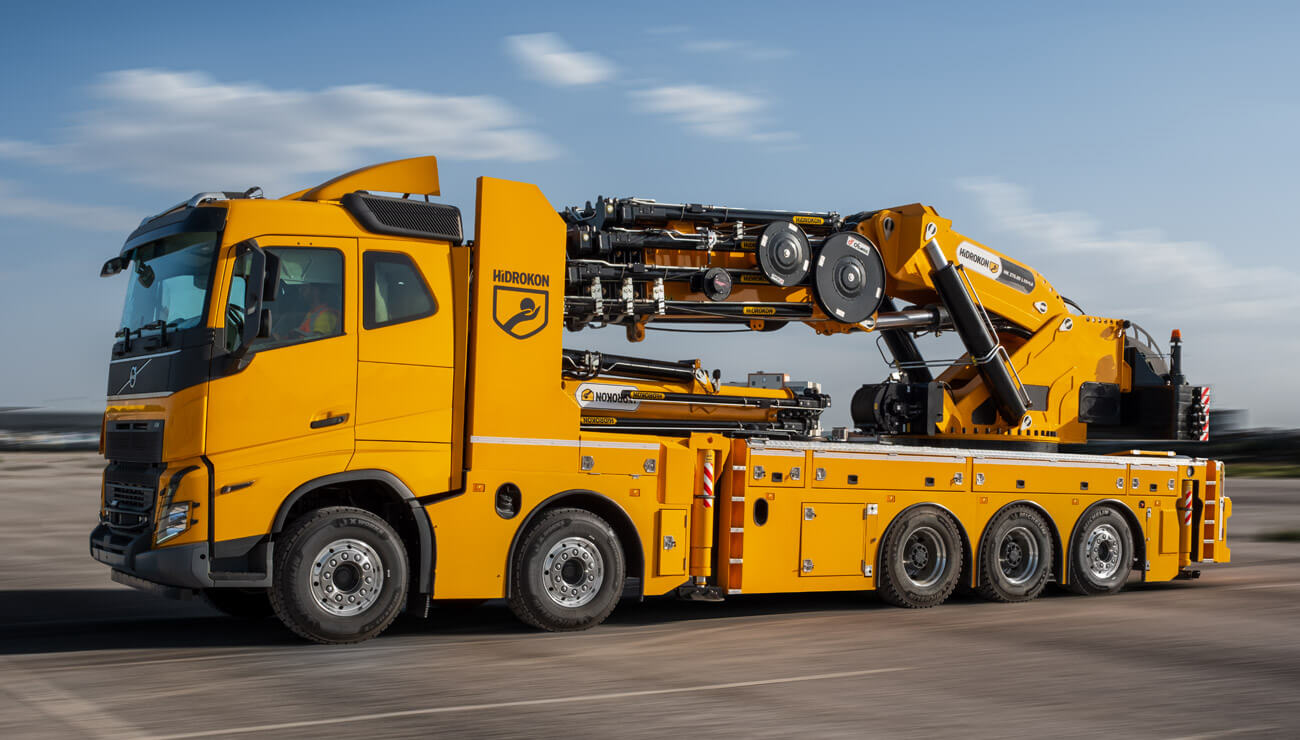

HK 270.00 L10+L6
Knuckle Boom Cranes
Products | Knuckle Boom Cranes | HK 270.00 L10+L6
Promotional
Video
Boom Extension by Double Lever
Operator Cabin
Operator Cabin Heating
Operator Cabin A/C
In-cabin joystick
Proportional Valve
Radio Remote Control for Crane
Radio Remote Control for Outriggers
Automatic Leveling
Outrigger Control System
%50
Load Pin
Variable Displacement Pump
Automatic Lubrication
Hoist Drum
4.5 t
Counterweight
Double Hook
Oil Tank
720l
Slewing Bearing
Ø1947
Standard
Optional
  • TECHNICAL SPECIFICATIONS

    Maximum Vertical Hydraulic Outreach 35.49 m
    Maximum Vertical Mechanical Outreach 41.46 m
    Maximum Vertical Hydraulic Outreach With Fly Jib 53.85 m
    Maximum Vertical Mechanical Outreach With Fly Jib 58.03 m
    Working Pressure 300 bar
    Rotation Angle (°) ∞(ENDLESS)
    Number Of Hydraulic Extensions 10
    Number Of Hydraulic Extensions On Fly Jib 6
    Number Of Mechanical Extensions 2
    Number Of Mechanical Extensions On Fly Jib 2
    Counterweight 7900 kg
    Oil Tank Capacity 720 l
    Dead Weight 34300 kg
    Dead Weight With Fly Jib 37190 kg


    *Boom deflections are not considered in the calculations for vertical and horizontal reach.


  • LIFTING DIAGRAMS

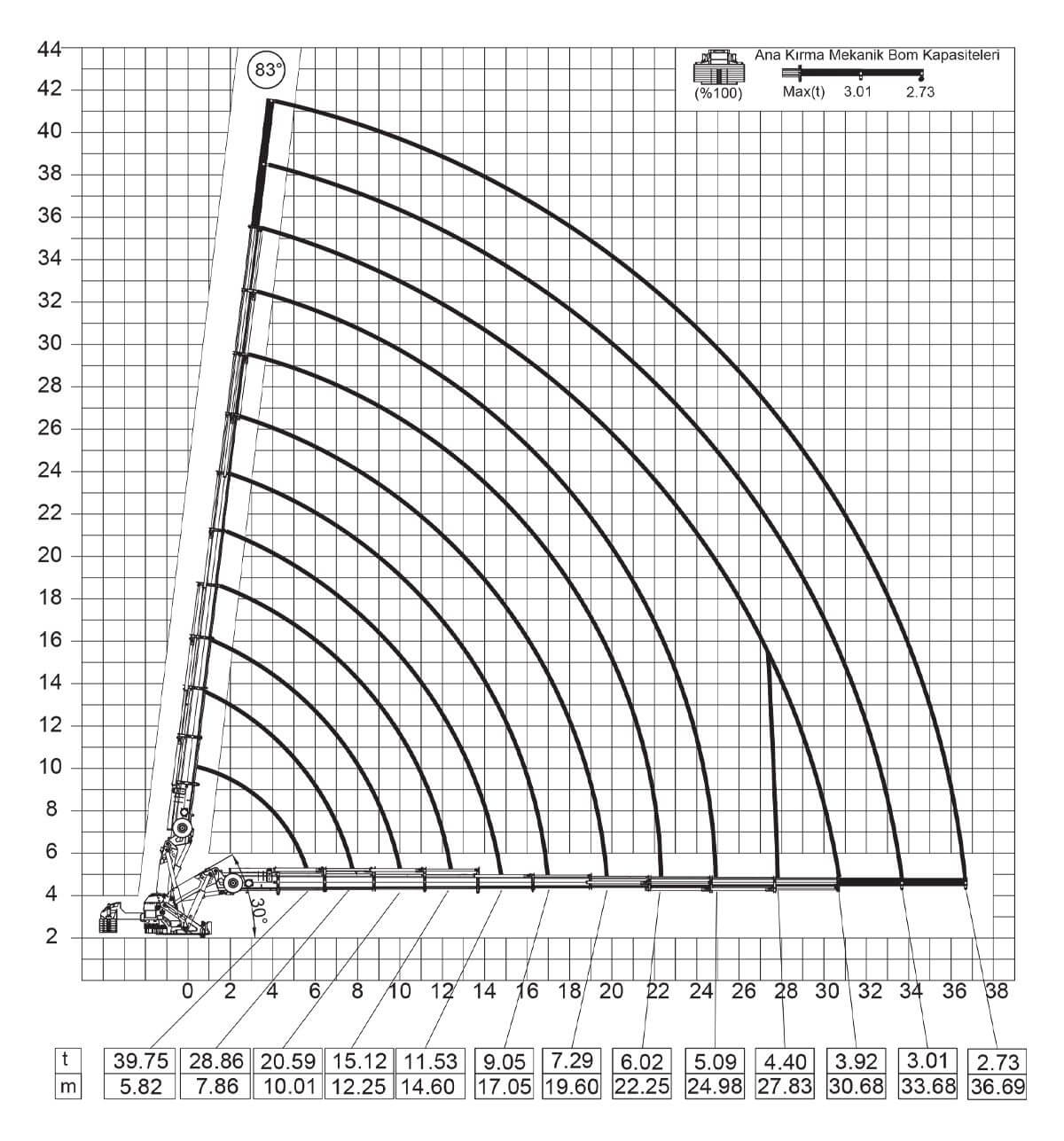

    HK-270-00-L10-L6-1

    * Lifting capacities of the main boom are valid when manual extensions is not installed. * In vertical and horizontal distances , boom deflections are not calculated. * Lifting capacities may vary around ± %5 * Subject to change without prior notice. *In the case of working in front of the cab area and / or on a surface where outrigger jacks are not balanced,all the responsibility belongs to the user.

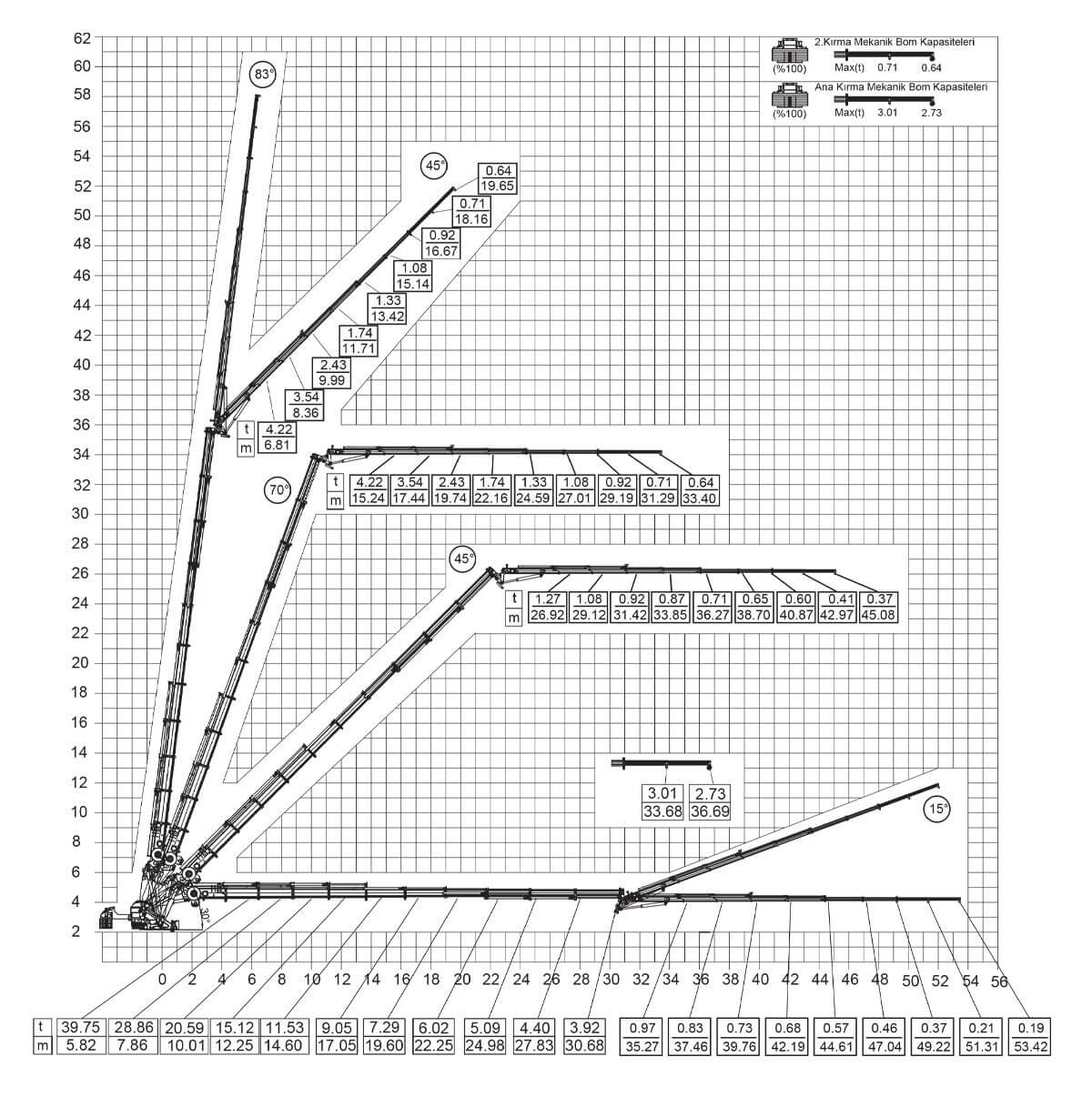

    HK-270-00-L10-L6-2

    * Lifting capacities of the main boom are to be considered when the fly jib is not installed. * Main boom and fly jib load capacities are valid when manual extensions is not installed. * In vertical and horizontal distances , boom deflections are not calculated. * Lifting capacities may vary around ± %5 * Subject to change without prior notice. *In the case of working in front of the cab area and / or on a surface where outrigger jacks are not balanced,all the responsibility belongs to the user.
