Load Case Extension

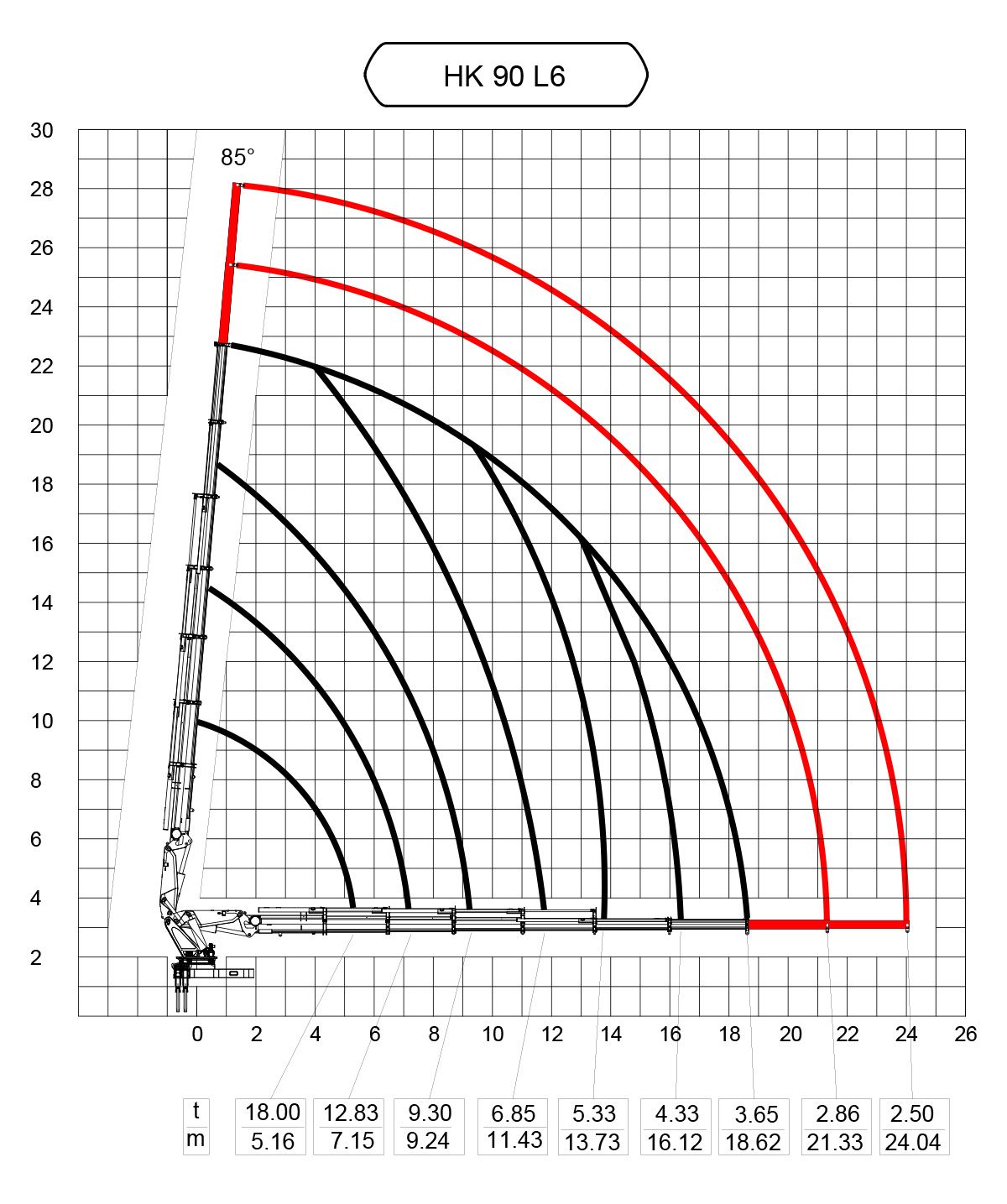

| Maximum Vertical Hydraulic Outreach | 22.70 m |
| Maximum Vertical Mechanical Outreach | 28.10 m |

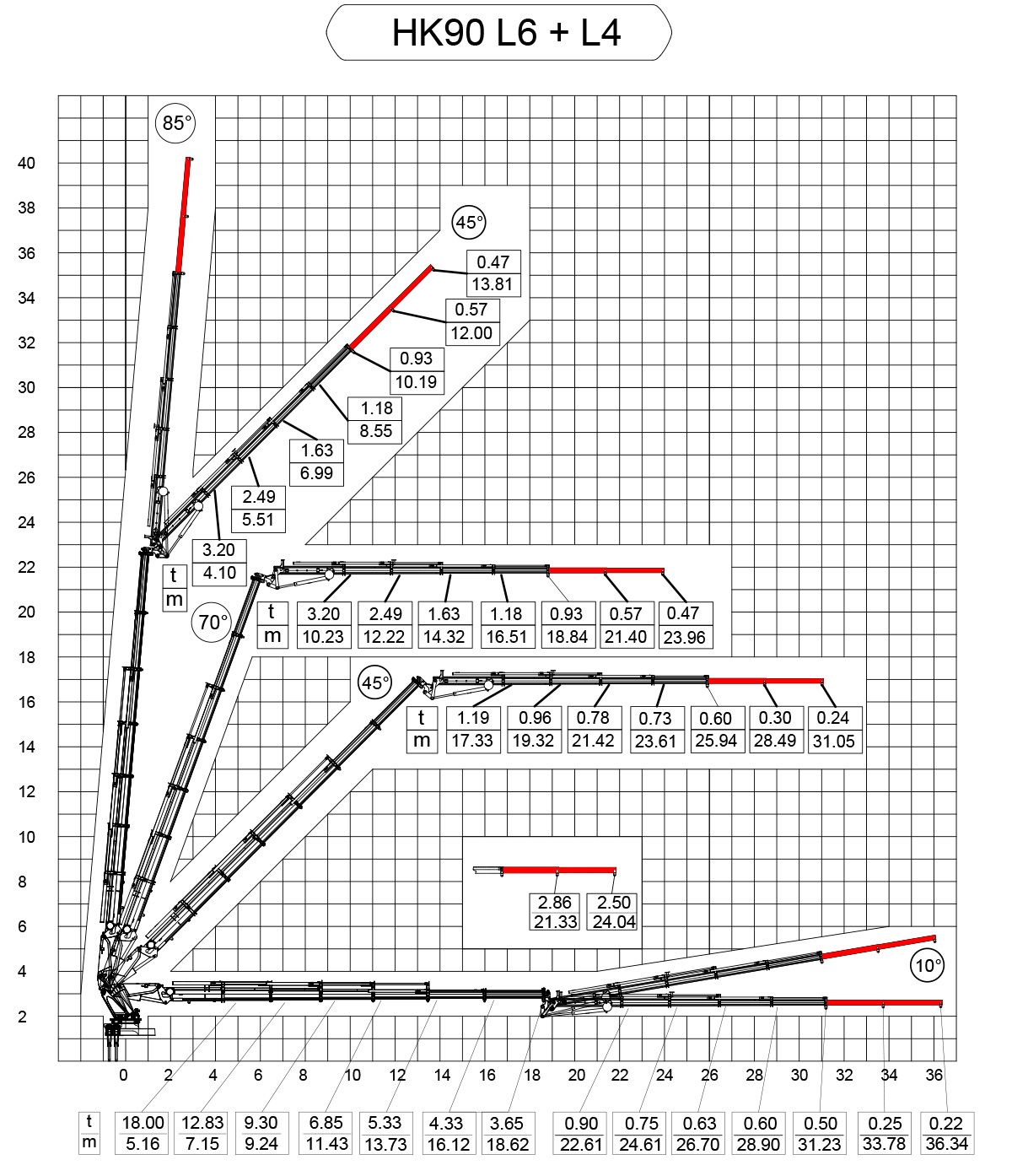

| Maximum Vertical Hydraulic Outreach With Fly Jib | 35.07 m |
| Maximum Vertical Mechanical Outreach With Fly Jib | 40.17 m |
| Working Pressure | 285 bar |
| Rotation Angle (°) | ∞(ENDLESS) |
| Number Of Hydraulic Extensions | 6 |
| Number Of Hydraulic Extensions On Fly Jib | 4 |
| Number Of Mechanical Extensions |
2 |
| Number Of Mechanical Extensions On Fly Jib |
2 |
| Oil Tank Capacity |
360 l |
| Dead Weight |
17400 kg |
| Dead Weight With Fly Jib |
20100 kg |
*Boom deflections are not considered in the calculations for vertical and horizontal reach.
