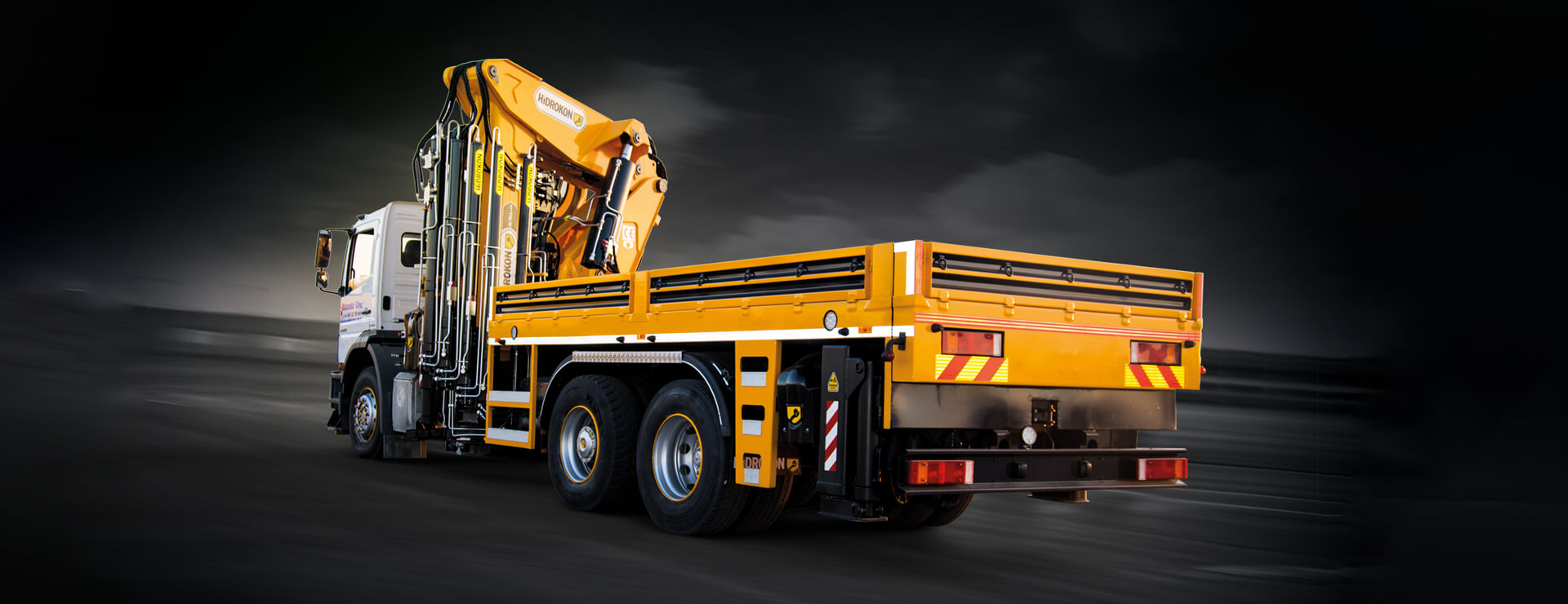

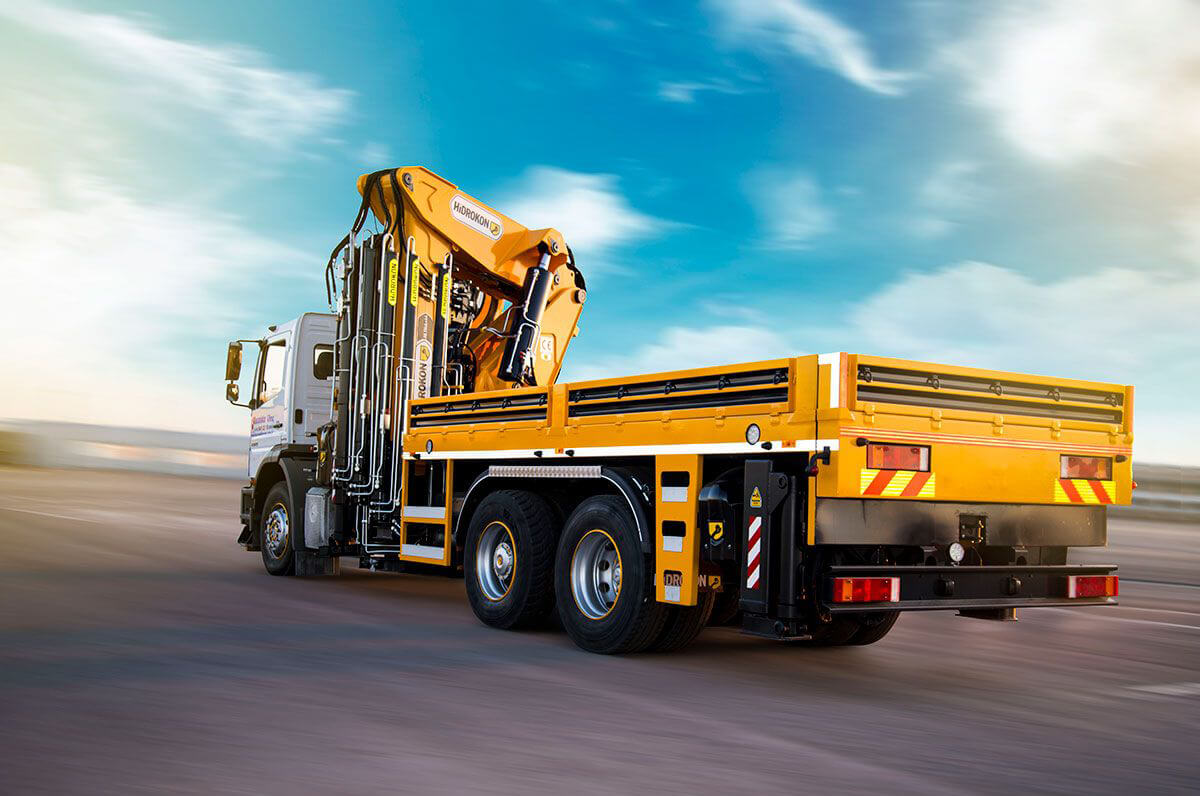

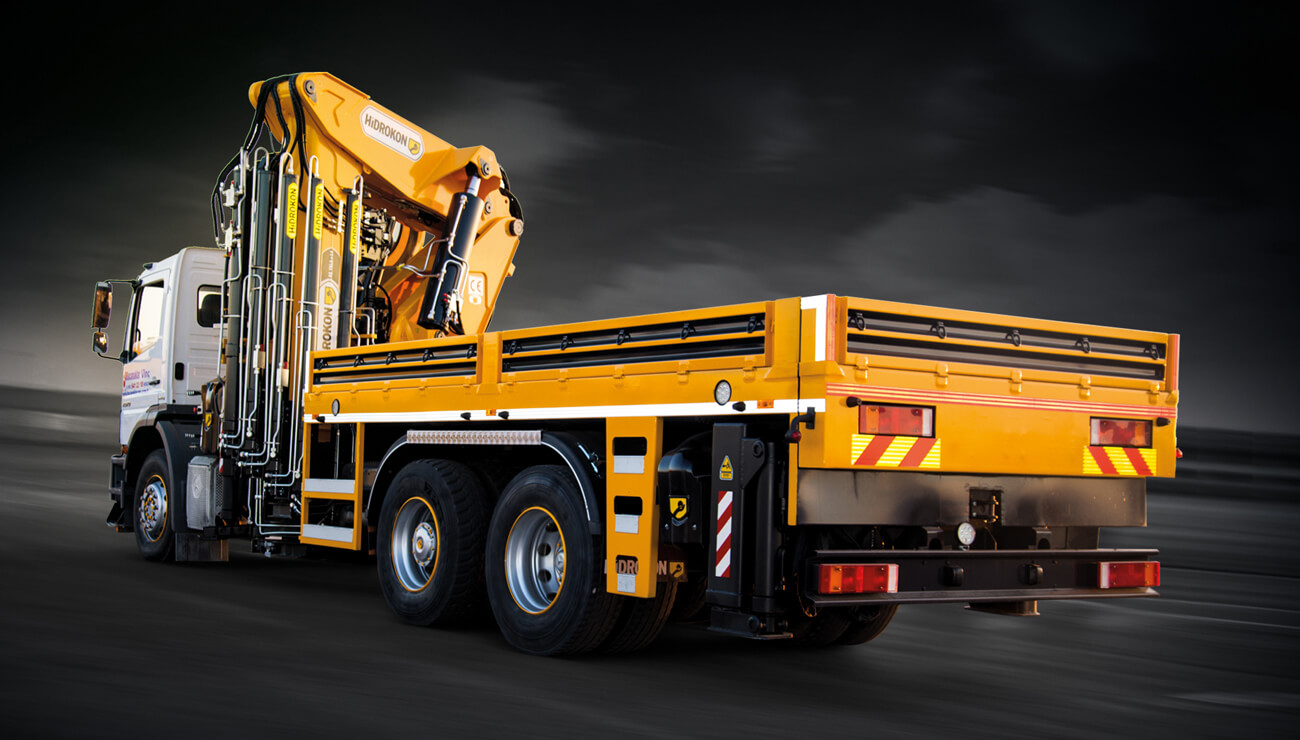

HK 90 YKL6 + L4
Knuckle Boom Cranes
Products | Knuckle Boom Cranes | HK 90 YKL6 + L4
Boom Extension by Double Lever

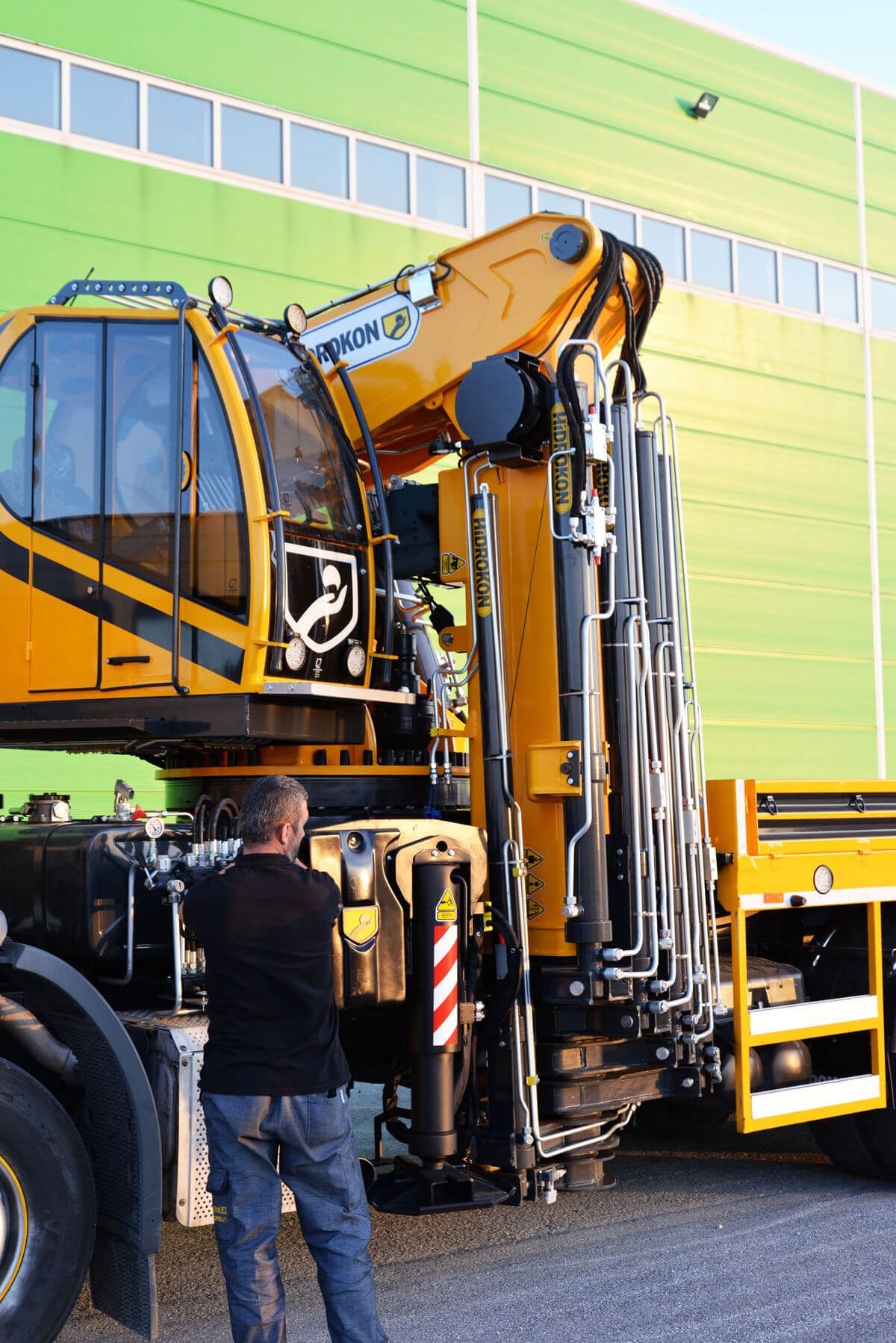

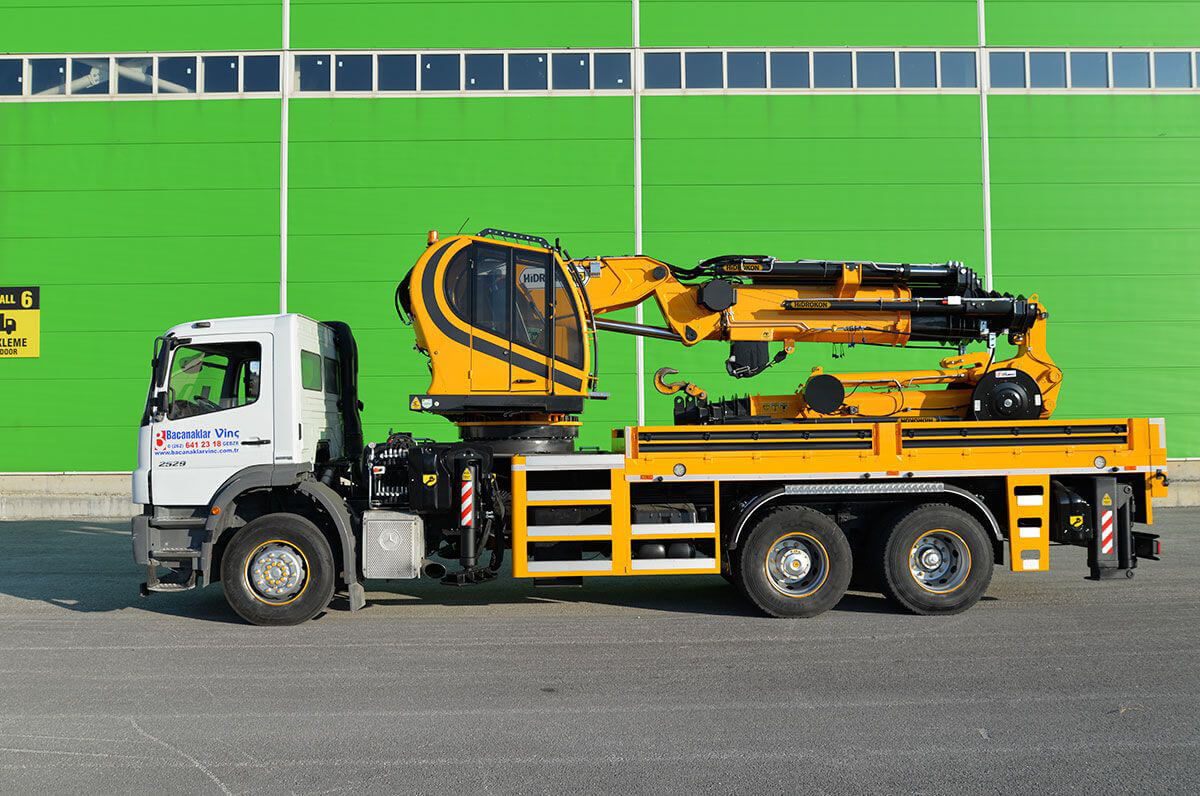

Operator Cabin
Operator Cabin Heating
Operator Cabin A/C

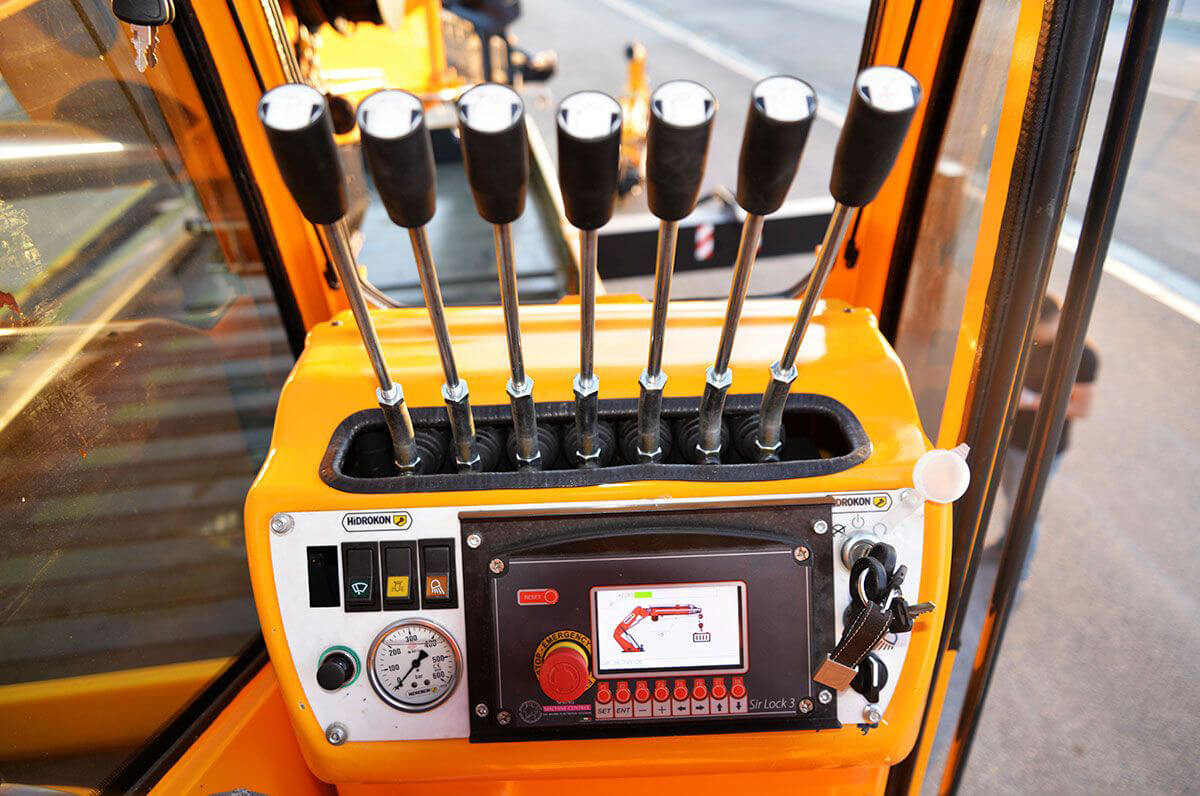

In-cabin joystick

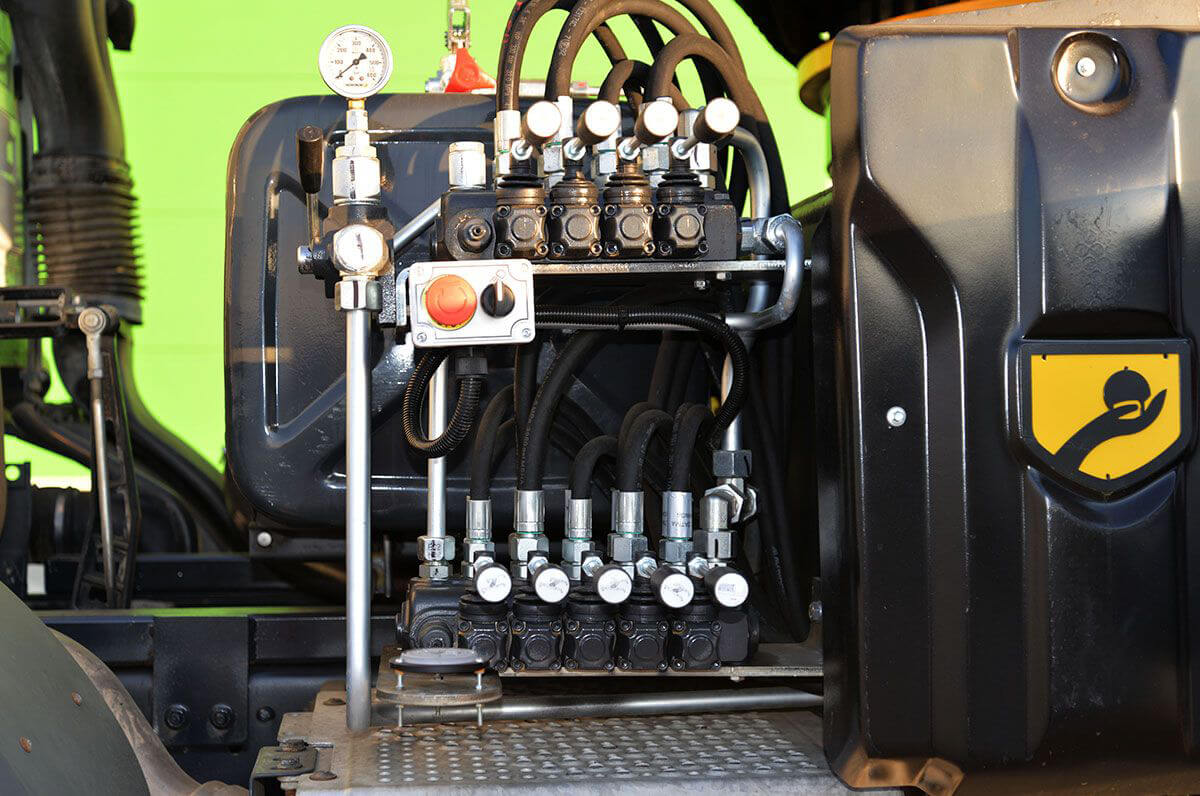

Proportional Valve
Radio Remote Control for Crane
Radio Remote Control for Outriggers
Automatic Leveling

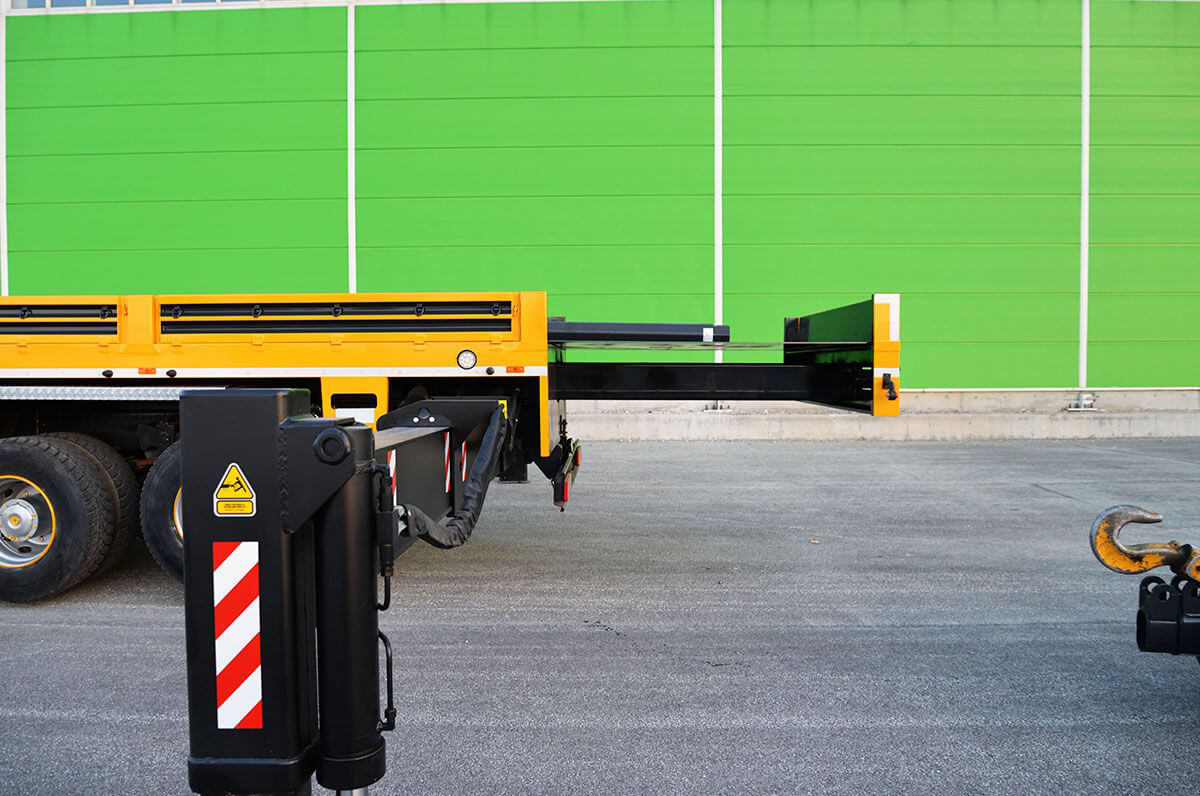

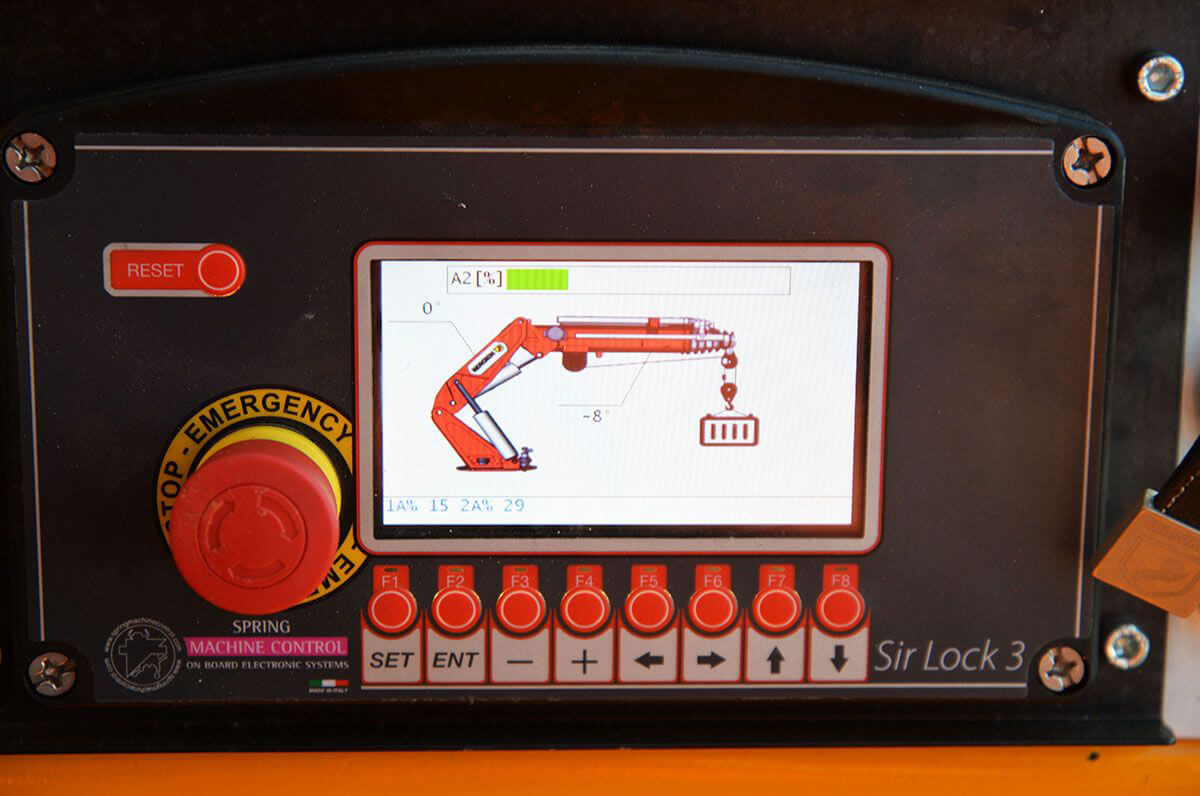

Outrigger Control System
%50
Load Pin
Variable Displacement Pump
Automatic Lubrication
Load Case

Load Case Extension

Hoist Drum
1.9 t
Oil Tank
360l
Slewing Bearing
Ø1260
Standard
Optional
  • TECHNICAL SPECIFICATIONS

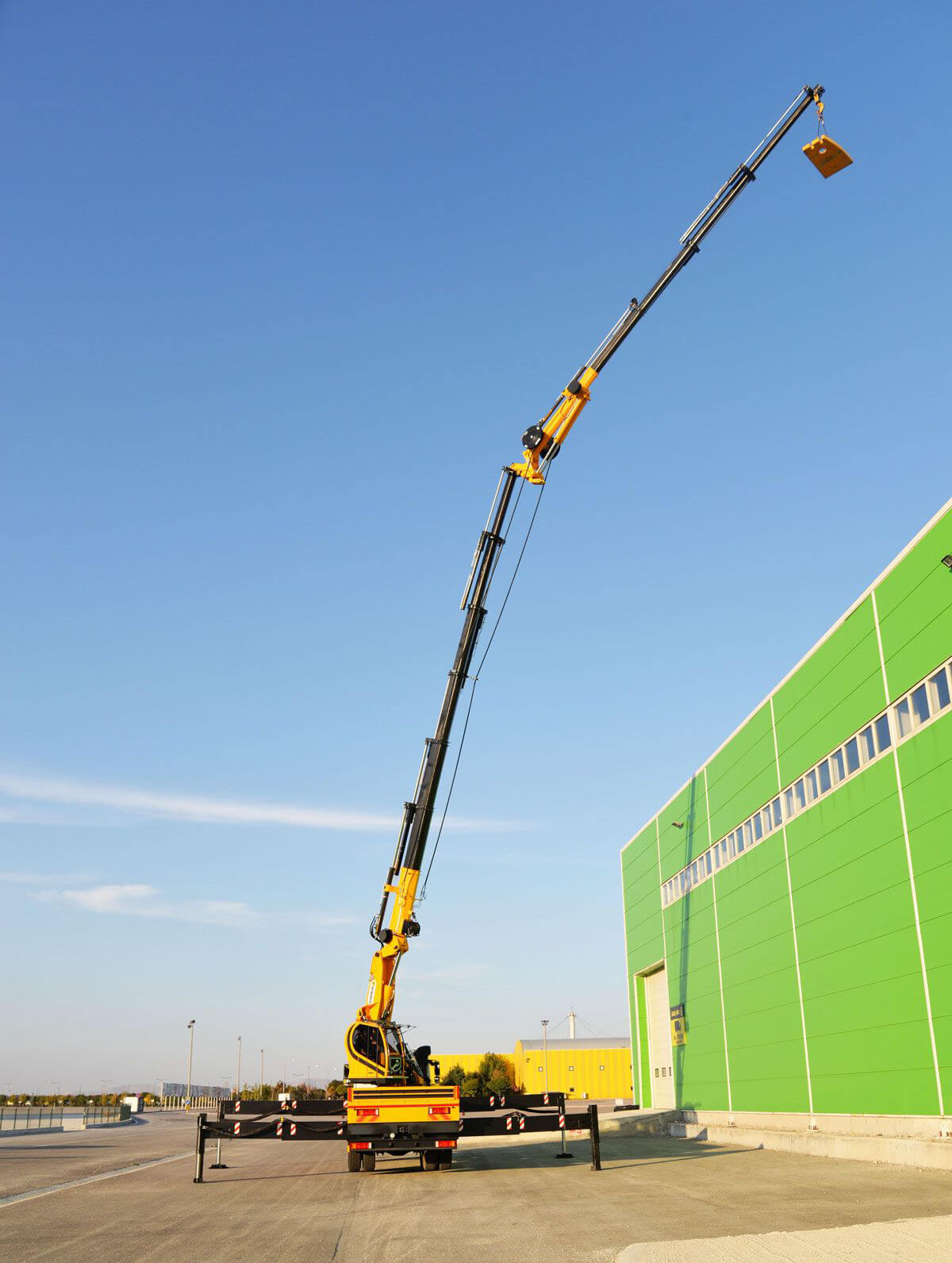

    Maximum Vertical Hydraulic Outreach 20.76 m
    Maximum Vertical Mechanical Outreach 25.64 m

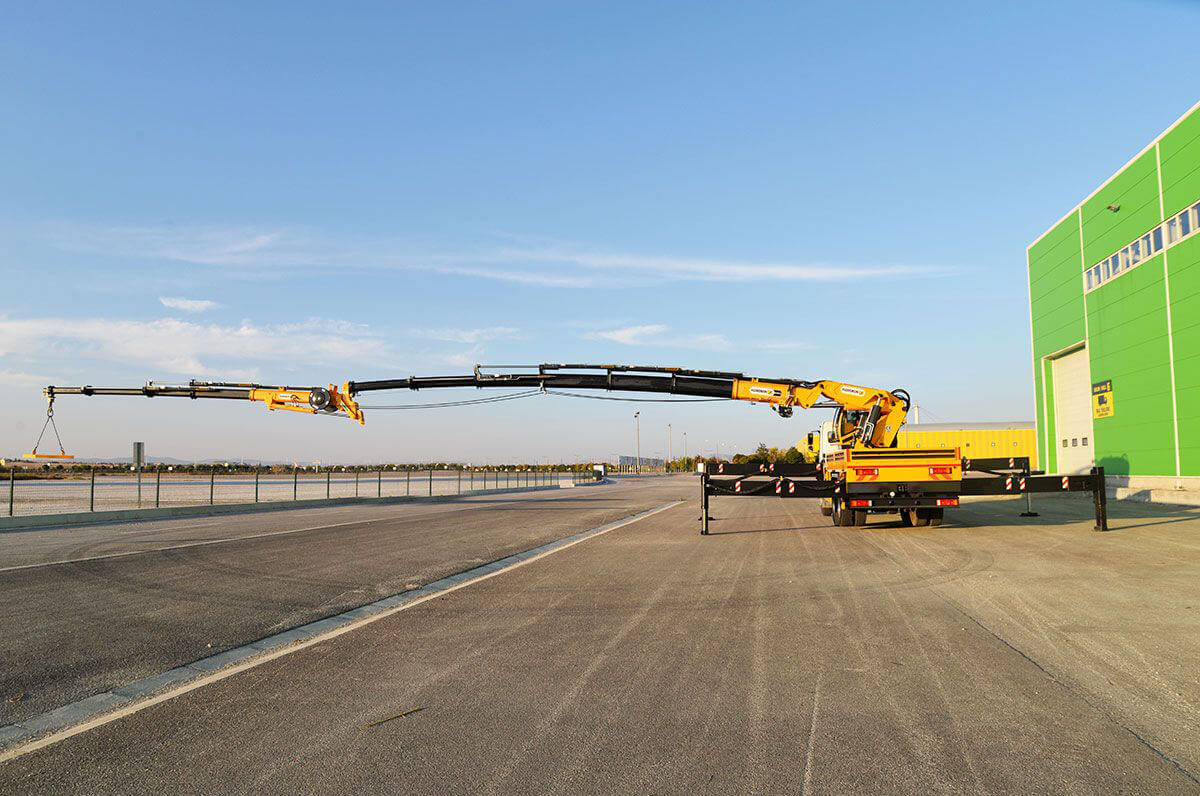

    Maximum Vertical Hydraulic Outreach With Fly Jib 33.13 m
    Maximum Vertical Mechanical Outreach With Fly Jib 38.13 m
    Working Pressure 285 bar
    Rotation Angle (°) ∞(ENDLESS)
    Number Of Hydraulic Extensions 6
    Number Of Hydraulic Extensions On Fly Jib 4
    Number Of Mechanical Extensions 2
    Number Of Mechanical Extensions On Fly Jib 2
    Oil Tank Capacity 360 l
    Dead Weight 17300 kg
    Dead Weight With Fly Jib 20000 kg


    *Boom deflections are not considered in the calculations for vertical and horizontal reach.


  • LIFTING DIAGRAMS

    HK 90 YKL6

    * Boom deflections are not taken into consideration.

    HK 90 YKL6+L4-2

    * Boom deflections are not taken into consideration.
    * Lifting capacities of the main boom are to be considered when the fly jib is not installed.
